InfineonDatasheet (PDF)

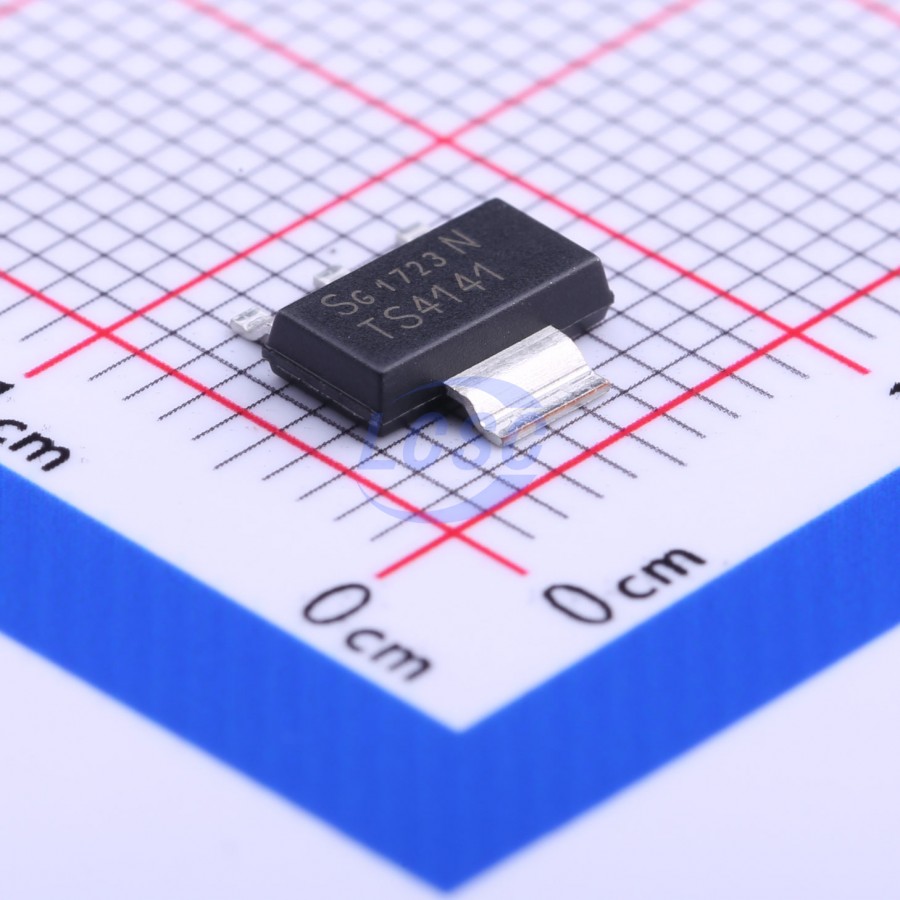

BTS4141N
1 700mA Active High High Side Switch SOT-223 Power Distribution Switches, Load Drivers
SOT-223RoHSActive
Smart High-Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS4141N
- Store part #
- C151527
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,741 in stock
#C151527
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹313.75 | ₹313.75 |
| 10+ | ₹277.91 | ₹2,779.10 |
| 30+ | ₹255.52 | ₹7,665.60 |
| 100+ | ₹232.49 | ₹23,249.00 |
| 500+ | ₹222.28 | ₹1,11,140.00 |
| 1,000+ | ₹217.71 | ₹2,17,710.00 |
1 × ₹313.75
₹313.75
excl. GST
₹370.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BTS4141N
₹313.75 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 700mA
- Control Input Logic
- Active High
- Operating Voltage
- 12V~45V
- RDS(on)
- 200mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMoS technology. Providing embedded protective functions.
Applications
- All types of resistive, inductive and capacitive loads
- μC compatible power switch for 12 V and 24 V DC applications
- Replaces electromechanical relays and discrete circuits
Key features
- Current limitation
- Overload protection
- Overvoltage protection (including load dump)
- Undervoltage shutdown with autorestart and hysteresis
- Switching inductive loads
- Clamp of negative voltage at output with inductive loads
- CMOS compatible input
- Thermal shutdown with restart
- ESD - Protection
- Loss of GND and loss of Vbb protection
- Very low standby current
- Reverse battery protection with external resistor
- Improved electromagnetic compatibility (EMC)
- AEC qualified
- Green product (RoHS compliant)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTS4142N#C112634Infineon · SOT-223 | Infineon | SOT-223 | 361 | ₹437.33 · 361 in stock | View |
 | ITS4200S-ME-P#C538478Infineon · SOT-223-4 | Infineon | SOT-223-4 | 45 | ₹289.86 · 45 in stock | View |
 | ITS4200SMEO#C2150211Infineon · SOT-223-4 | Infineon | SOT-223-4 | On request | ₹244.13 · 0 in stock | View |
