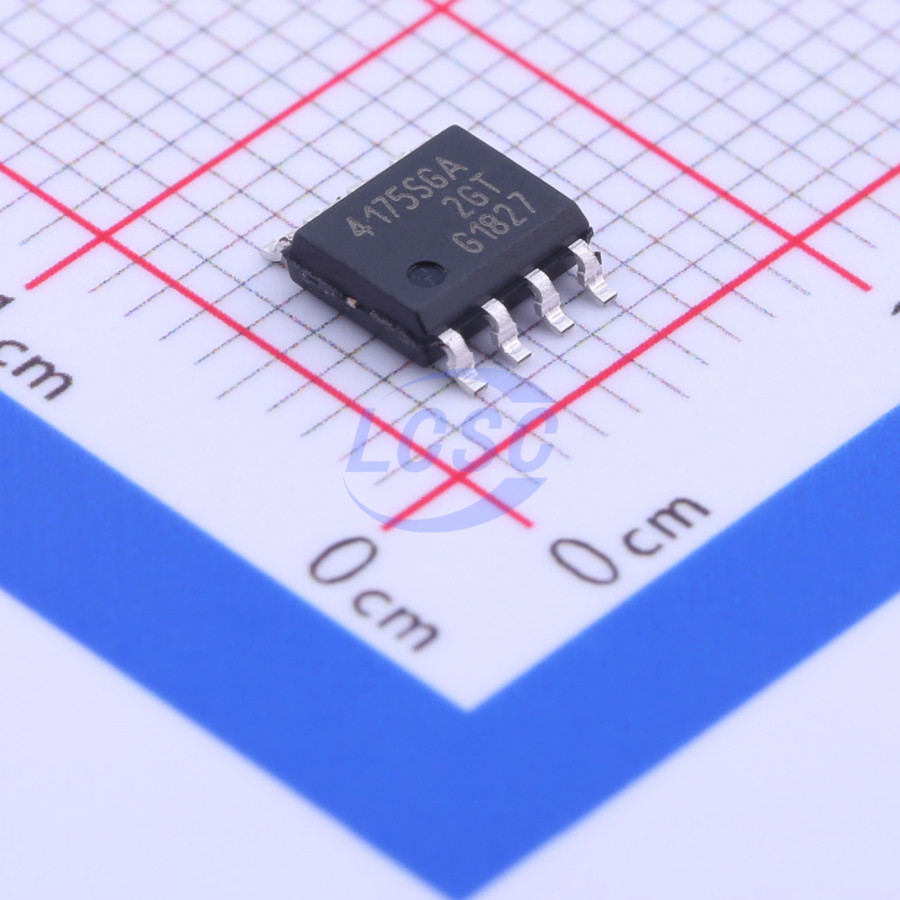

BTS4175SGA
1 1.3A Active High High Side Switch SOIC-8 Power Distribution Switches, Load Drivers RoHS
SOIC-8ROHS3 CompliantActive
Smart High-Side Power Switch, Automotive Power
- Manufacturer
- Infineon
- Manufacturer part #
- BTS4175SGA
- Store part #
- C152451
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,911 in stock
#C152451
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹226.38 | ₹226.38 |
| 10+ | ₹195.96 | ₹1,959.60 |
| 30+ | ₹179.02 | ₹5,370.60 |
| 100+ | ₹160.12 | ₹16,012.00 |
| 500+ | ₹140.78 | ₹70,390.00 |
| 1,000+ | ₹136.88 | ₹1,36,880.00 |
1 × ₹226.38
₹226.38
excl. GST
₹267.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BTS4175SGA
₹226.38 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 1.3A
- Control Input Logic
- Active High
- RDS(on)
- 350mΩ
- Operating Voltage
- 6V~52V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.275 g
Overview
The BTS4175SGA is a single channel Smart High-Side Power Switch. It is embedded in a PG-DSO-8-24 package, providing protective functions and diagnostics. The power transistor is built by a N-channel power MOSFET with charge pump. The device is monolithically integrated in Smart technology. It is specially designed to drive Relay, R5W lamp or LED in the harsh automotive environment.
Applications
- All types of relays, lamps and resistive loads
Key features
- Fit for 12V and 24V application
- One Channel device
- Very Low Stand-by Current
- CMOS Compatible Inputs
- Electrostatic Discharge Protection (ESD)
- Optimized Electromagnetic Compatibility
- Logic ground independent from load ground
- Very Low Leakage Current from OUT to the load in OFF state
- Green Product (RoHS compliant)
- AEC Qualified
- Open load in OFF
- Feedback of the thermal shutdown in ON state
- Feedback of the current limitation
- Diagnostic feedback with open drain output
- Short circuit protection
- Overload protection
- Current limitation
- Thermal shutdown
- Overvoltage protection (including load dump) with external resistor
- Loss of ground and loss of battery protection
- Electrostatic discharge protection (ESD)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSP752TXUMA1#C112637Infineon · SO-8 | Infineon | SO-8 | 251 | ₹282.74 · 251 in stock | View |
| ISP752TFUMA1#C2150079Infineon · SOIC-8 | Infineon | SOIC-8 | 276 | ₹225.82 · 276 in stock | View | |
 | ISP752RFUMA1#C454923Infineon · SOIC-8 | Infineon | SOIC-8 | 99 | ₹266.51 · 99 in stock | View |
