InfineonDatasheet (PDF)

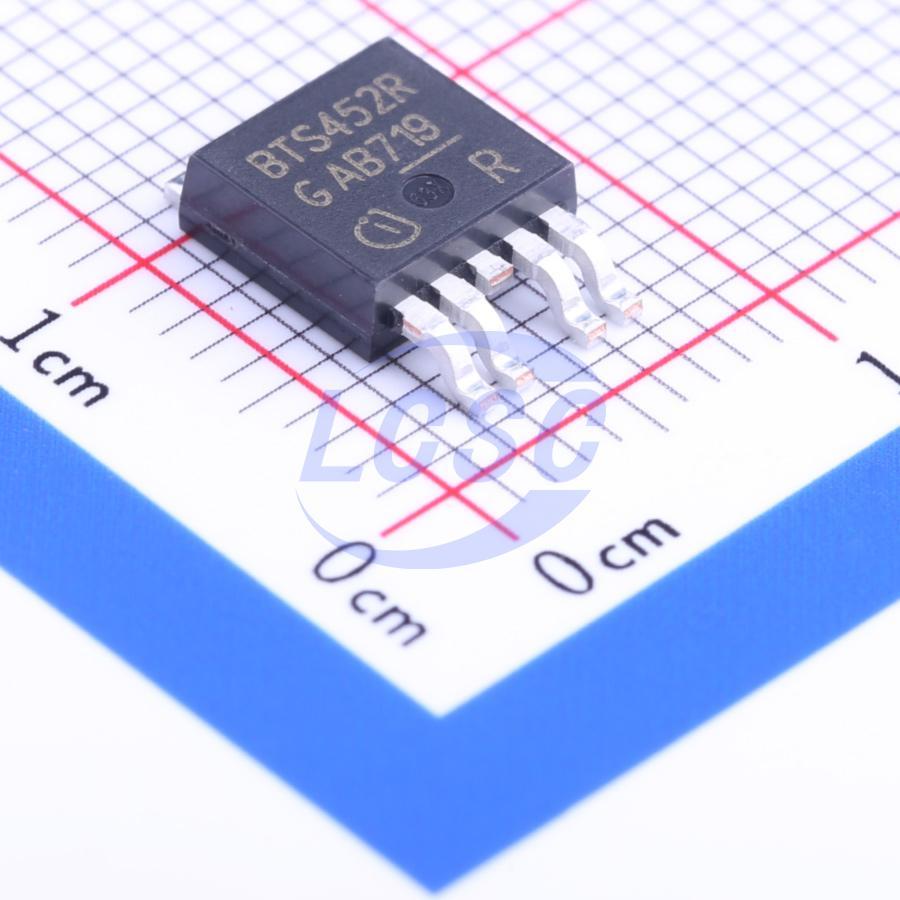

BTS452R
1 1.8A Active High High Side Switch TO-252-4 Power Distribution Switches, Load Drivers RoHS
TO-252-4ROHS CompliantActive
Smart High-Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS452R
- Store part #
- C126924
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,165 in stock
#C126924
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹218.18 | ₹218.18 |
| 10+ | ₹181.01 | ₹1,810.10 |
| 30+ | ₹160.59 | ₹4,817.70 |
| 100+ | ₹131.47 | ₹13,147.00 |
| 500+ | ₹121.04 | ₹60,520.00 |
| 1,000+ | ₹116.48 | ₹1,16,480.00 |
1 × ₹218.18
₹218.18
excl. GST
₹257.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BTS452R
₹218.18 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Integrated charge pump
- number of channels
- 1
- Maximum Continuous Current
- 1.8A
- Control Input Logic
- Active High
- Operating Voltage
- 6V~52V
- RDS(on)
- 200mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.666 g
Overview
N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions.
Applications
- All types of resistive, inductive and capacitive loads μC compatible power switch for 12 V, 24 V and 42 V DC applications
- Replaces electromechanical relays and discrete circuits
Key features
- Overload protection
- Current limitation
- Short circuit protection
- Thermal shutdown with restart
- Overvoltage protection (including load dump)
- Fast demagnetization of inductive loads
- Reverse battery protection with external resistor
- Open drain diagnostic output for overtemperature and short circuit
- Open load detection in OFF - State with external resistor
- CMOS compatible input
- Loss of GND and loss of Vbb protection
- ESD - Protection
- Very low standby current
- Green product (RoHS-compliant)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTS452TATMA1#C5309408Infineon · TO-252-4 | Infineon | TO-252-4 | 10 | ₹353.55 · 10 in stock | View |
| AUIPS7141RTRL#C533189Infineon · TO-252-4 | Infineon | TO-252-4 | On request | ₹466.81 · 0 in stock | View | |
| AUIPS7125R#C3232332Infineon · TO-252-4 | Infineon | TO-252-4 | On request | ₹191.49 · 0 in stock | View | |
