InfineonDatasheet (PDF)

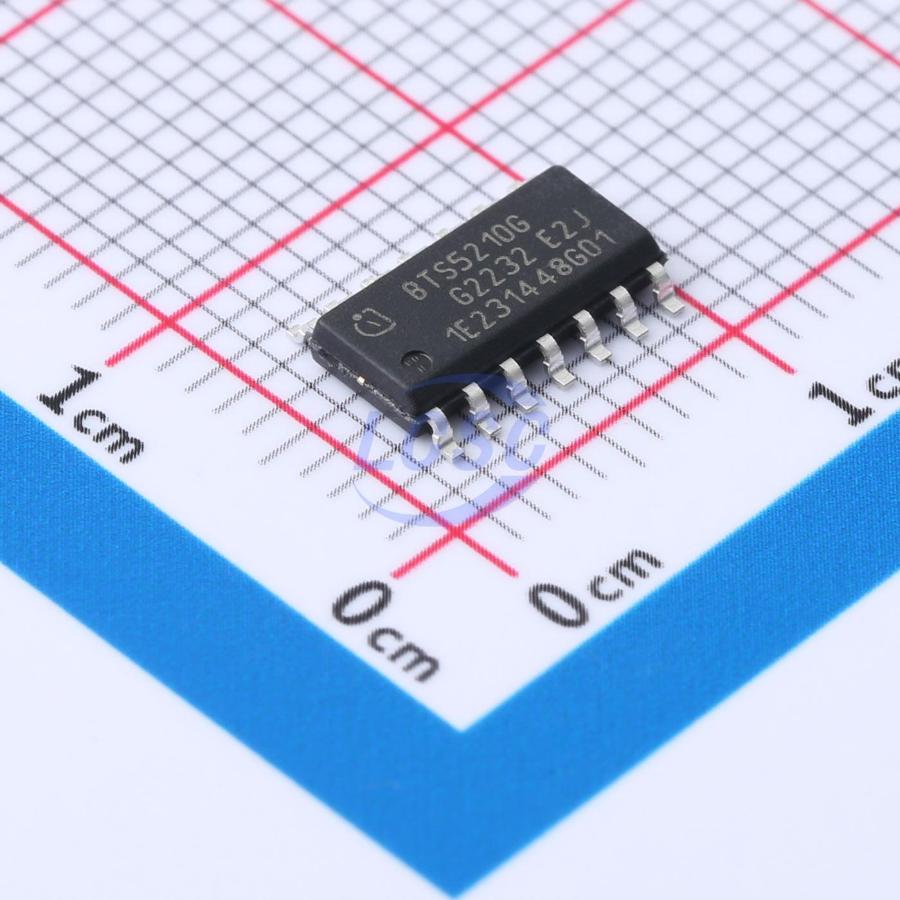

BTS5210G
2 Active High 1.8A High Side Switch SOIC-14 Power Distribution Switches, Load Drivers RoHS
SOIC-14ROHS3 CompliantActive
Smart High-Side Power Switch Two Channels: 2× 140mΩ Status Feedback
- Manufacturer
- Infineon
- Manufacturer part #
- BTS5210G
- Store part #
- C2150070
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,798 in stock
#C2150070
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹277.43 | ₹277.43 |
| 10+ | ₹238.05 | ₹2,380.50 |
| 30+ | ₹213.68 | ₹6,410.40 |
| 100+ | ₹201.28 | ₹20,128.00 |
| 500+ | ₹189.96 | ₹94,980.00 |
| 1,000+ | ₹184.96 | ₹1,84,960.00 |
1 × ₹277.43
₹277.43
excl. GST
₹327.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BTS5210G
₹277.43 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection
- number of channels
- 2
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1.8A
- RDS(on)
- 110mΩ
- Operating Voltage
- 5.5V~40V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.216 g
Overview
N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic fedback, monolithically integrated in Smart SIPMOs technology. Providing embedded protective functions
Applications
- μC compatible high - side power switch with diagnostic feedback for 12V and 24V grounded loads
- All types of resistive, inductive and capacitve loads
- Most suitable for loads with high inrush currents, so as lamps
- Replaces electromechanical relays, fuses and discrete circuits
Key features
- Very low standby current
- CMOS compatible input
- Improved electromagnetic compatibility (EMC)
- Fast demagnetization of inductive loads
- Stable behaviour at undervoltage
- Wide operating voltage range
- Logic ground independent from load ground
- Short circuit protection
- Overload protection
- Current limitation
- Thermal shutdown
- Overvoltage protection (including load dump) with external resistor
- Reverse battery protection with external resistor
- Loss of ground and loss of Vbb protection
- Electrostatic discharge protection (ESD)
- Diagnostic feedback with open drain output
- Open load detection in OFF - state
- Feedback of thermal shutdown in ON - state
- AEC Qualified
- Green product (RoHS compliant)
