InfineonDatasheet (PDF)

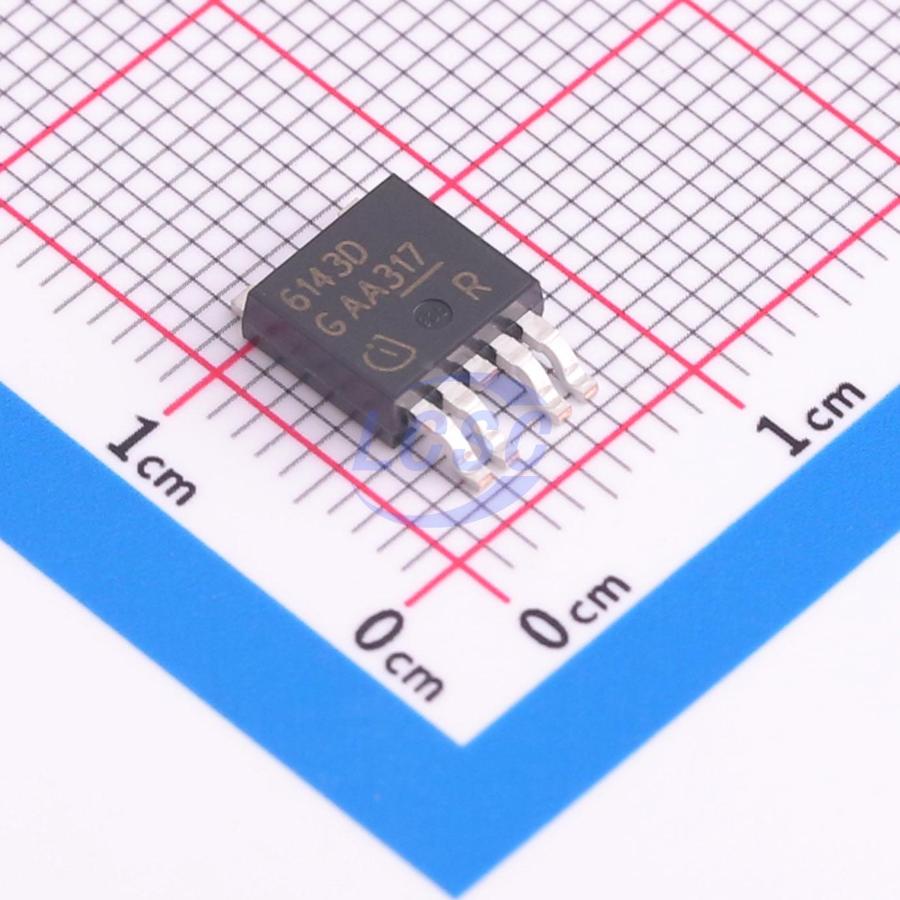

BTS6143D
1 33A Active Low High Side Switch TO-252-4 Power Distribution Switches, Load Drivers RoHS
TO-252-4ROHS3 CompliantActive
Smart Highside Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS6143D
- Store part #
- C95232
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,333 in stock
#C95232
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹336.40 | ₹336.40 |
| 10+ | ₹282.43 | ₹2,824.30 |
| 30+ | ₹248.50 | ₹7,455.00 |
| 100+ | ₹213.90 | ₹21,390.00 |
| 500+ | ₹198.45 | ₹99,225.00 |
| 1,000+ | ₹191.49 | ₹1,91,490.00 |
1 × ₹336.40
₹336.40
excl. GST
₹396.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BTS6143D
₹336.40 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Integrated charge pump
- number of channels
- 1
- Maximum Continuous Current
- 33A
- Control Input Logic
- Active Low
- RDS(on)
- 10mΩ
- Operating Voltage
- 5.5V~38V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.487 g
Overview
N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS chip on chip technology. Providing embedded protective functions.
Applications
- Power switch with current sense diagnostic feedback for 12V and 24 V DC grounded loads
- All types of resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
Key features
- Short circuit protection with latch
- Current limitation
- Overload protection
- Thermal shutdown with restart
- Overvoltage protection (including load dump)
- Loss of ground protection
- Loss of Vbb protection (with external diode for charged inductive loads)
- Very low standby current
- Fast demagnetisation of inductive loads
- Electrostatic discharge (ESD) protection
- Optimized static electromagnetic compatibility (EMC)
- Green Product (RoHS compliant)
- AEC qualified
