InfineonDatasheet (PDF)

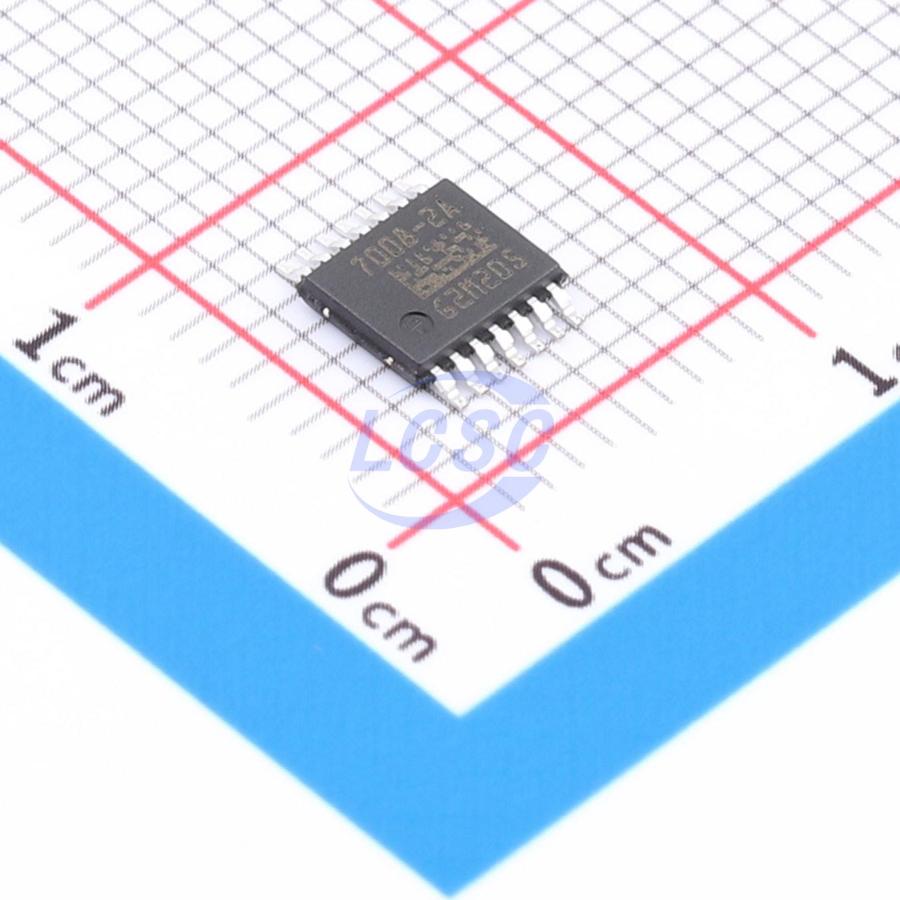

BTS7008-2EPA
2 7.5A Active High High Side Switch TSDSO-14 Power Distribution Switches, Load Drivers
TSDSO-14RoHSActive
PROFET+2 12V Smart High-Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS7008-2EPA
- Store part #
- C534830
- Package / case
- TSDSO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,351 in stock
#C534830
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹157.25 | ₹157.25 |
| 10+ | ₹132.25 | ₹1,322.50 |
| 30+ | ₹118.33 | ₹3,549.90 |
| 100+ | ₹102.89 | ₹10,289.00 |
| 500+ | ₹95.92 | ₹47,960.00 |
| 1,000+ | ₹92.87 | ₹92,870.00 |
1 × ₹157.25
₹157.25
excl. GST
₹185.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTS7008-2EPA
₹157.25 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Latch protection
- number of channels
- 2
- Maximum Continuous Current
- 7.5A
- Control Input Logic
- Active High
- Operating Voltage
- 3.1V~28V
- RDS(on)
- 16mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.237 g
Overview
The BTS7008-2EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Driving capability suitable for 7.5 A loads and high inrush current loads such as H9 65W / Xenon 65W lamps or equivalent electronic loads (e.g. LED modules)
Key features
- High-Side Switch with Diagnosis and Embedded Protection
- Part of PROFET™ '+2 12V Family
- ReverseON for low power dissipation in Reverse Polarity
- Switch ON capability while Inverse Current condition (InverseON)
- Green Product (RoHS compliant)
- Absolute and dynamic temperature limitation with controlled restart
- Overcurrent protection (tripping) with Intelligent Restart Control
- Undervoltage shutdown
- Overvoltage protection with external components
- Proportional load current sense
- Open Load in ON and OFF state
- Short circuit to ground and battery
- Qualified for automotive applications. Product validation according to AEC-Q100 Grade 1.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BTS70082EPGXUMA1#C20189659Infineon · TSDSO-14 | Infineon | TSDSO-14 | On request | ₹462.77 · 0 in stock | View | |
