InfineonDatasheet (PDF)

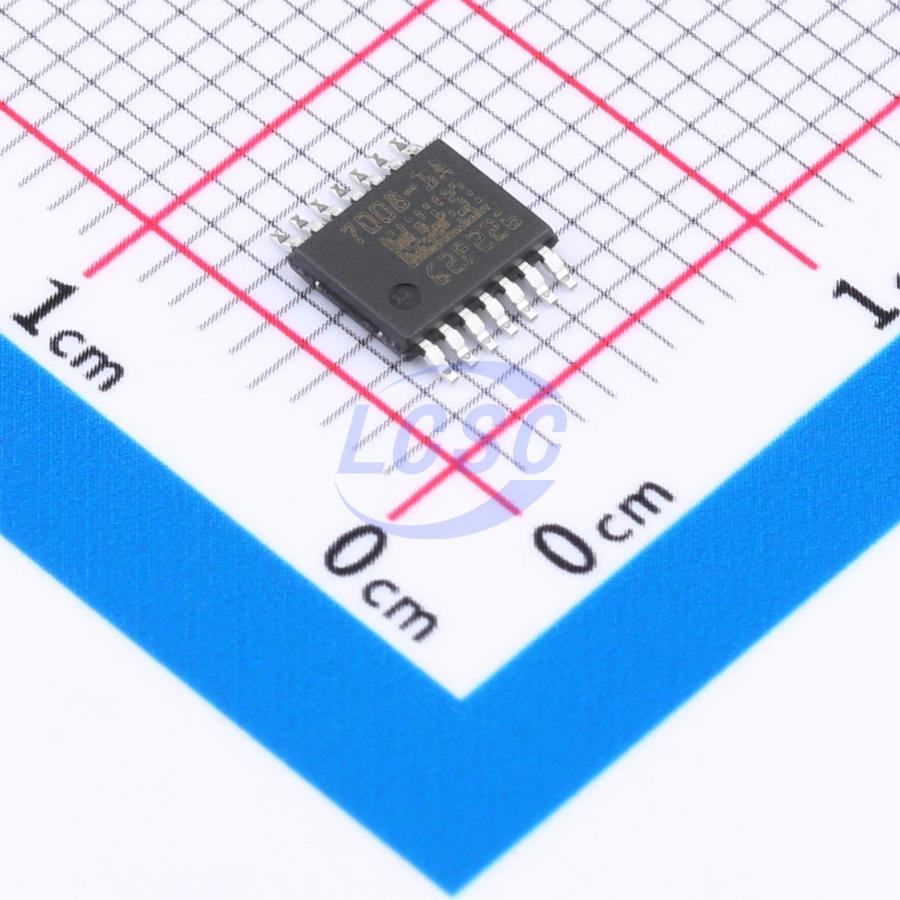

BTS70081EPAXUMA1
1 Active High 10A High Side Switch TSSOP-14-EP-150mil Power Distribution Switches, Load Drivers RoHS
TSSOP-14-EP-150milROHS3 CompliantActive
12V Smart High-Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS70081EPAXUMA1
- Store part #
- C3232437
- Package / case
- TSSOP-14-EP-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,003 in stock
#C3232437
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹219.80 | ₹219.80 |
| 10+ | ₹186.57 | ₹1,865.70 |
| 30+ | ₹165.72 | ₹4,971.60 |
| 100+ | ₹144.22 | ₹14,422.00 |
| 500+ | ₹134.67 | ₹67,335.00 |
| 1,000+ | ₹130.54 | ₹1,30,540.00 |
1 × ₹219.80
₹219.80
excl. GST
₹259.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTS70081EPAXUMA1
₹219.80 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Integrated charge pump;Latch protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 10A
- Operating Voltage
- 6V~18V
- RDS(on)
- 16.4mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2a
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.098 g
Overview
The BTS7008-1EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Driving capability suitable for 10 A loads and high inrush current loads such as H9 65W / Xenon 65W lamps or equivalent electronic loads (e.g. LED modules)
Key features
- High-Side Switch with Diagnosis and Embedded Protection
- Part of PROFET™ +2 12V Family
- ReverseON for low power dissipation in Reverse Polarity
- Switch ON capability while Inverse Current condition (InverseON)
- Green Product (RoHS compliant)
- Absolute and dynamic temperature limitation with controlled restart
- Overcurrent protection (tripping) with Intelligent Restart Control
- Undervoltage shutdown
- Overvoltage protection with external components
- Proportional load current sense
- Open Load in ON and OFF state
- Short circuit to ground and battery
- Qualified for automotive applications. Product validation according to AEC-Q100 Grade 1.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTS70061EPPXUMA1#C2150077Infineon · TSSOP-14-EP-150mil | Infineon | TSSOP-14-EP-150mil | 52 | ₹300.48 · 52 in stock | View |
 | BTS70021EPPXUMA1#C2680407Infineon · TSSOP-14-EP-150mil | Infineon | TSSOP-14-EP-150mil | On request | ₹487.43 · 0 in stock | View |
