InfineonDatasheet (PDF)

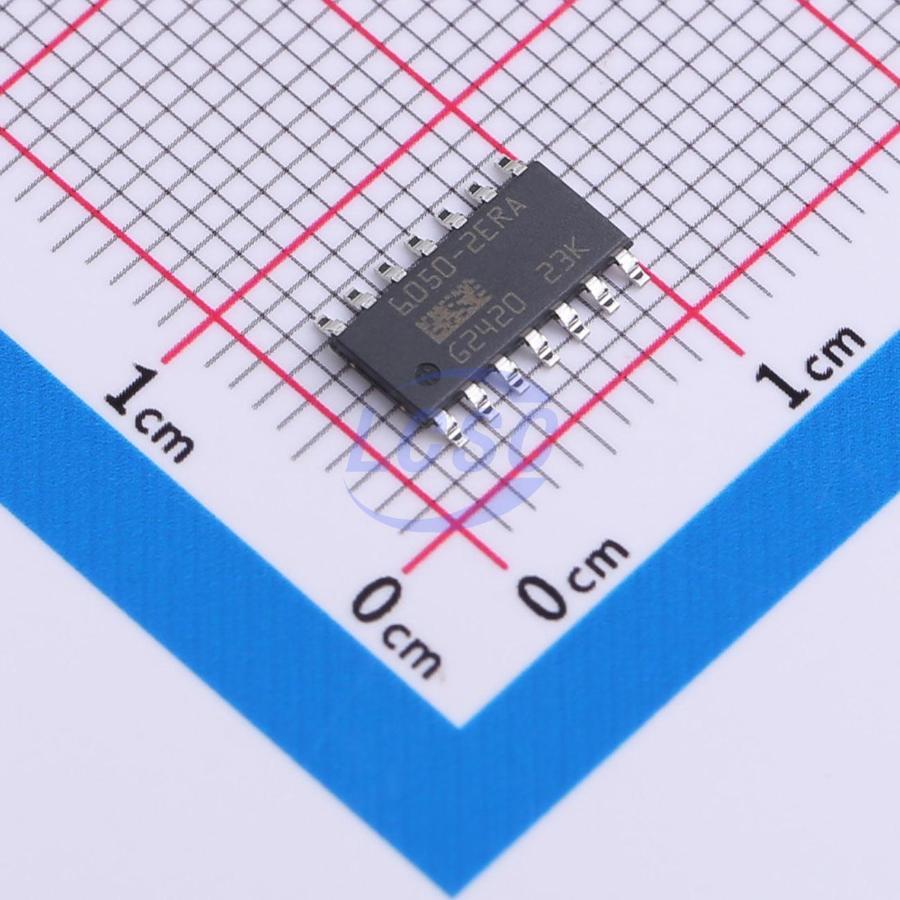

BTT6050-2ERA
High Side Switch 2 Channel 3A SOIC-14-EP
SOIC-14-EPROHS3 CompliantActive
24V dual-channel intelligent high-side power switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTT6050-2ERA
- Store part #
- C3232306
- Package / case
- SOIC-14-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,860 in stock
#C3232306
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹374.65 | ₹374.65 |
| 10+ | ₹315.26 | ₹3,152.60 |
| 30+ | ₹278.03 | ₹8,340.90 |
| 100+ | ₹239.94 | ₹23,994.00 |
| 500+ | ₹222.73 | ₹1,11,365.00 |
| 1,000+ | ₹215.20 | ₹2,15,200.00 |
1 × ₹374.65
₹374.65
excl. GST
₹442.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTT6050-2ERA
₹374.65 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Latch protection;Integrated charge pump
- number of channels
- 2
- Control Input Logic
- Active High
- Maximum Continuous Current
- 3A
- Operating Voltage
- 5V~36V
- RDS(on)
- 50mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
The BTT6050- 2ERA is a 50 mΩ dual channel Smart High- Side Power Switch, embedded in a PG- TDSO- 14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N- channel vertical power MOSFET with charge pump. The device is integrated in Smart6 HV technology. It is specially designed to drive lamps up to 2* P21W 24V or 1* 21W 12V, as well as LEDs in the harsh automotive environment.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Most suitable for loads with high inrush current, such as lamps
- Suitable for 12 V and 24 V Trucks and Transportation System
Key features
- Two channel device
- Very low stand- by current
- 3.3 V and 5 V compatible logic inputs
- Electrostatic discharge protection (ESD)
- Optimized electromagnetic compatibility
- Logic ground independent of load ground
- Very low power DMOS leakage current in OFF state
- Green product (RoHS compliant) and AEC qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTT6030-2EKA#C112642Infineon · SO-14-EP | Infineon | SO-14-EP | 9 | ₹673.31 · 9 in stock | View |
