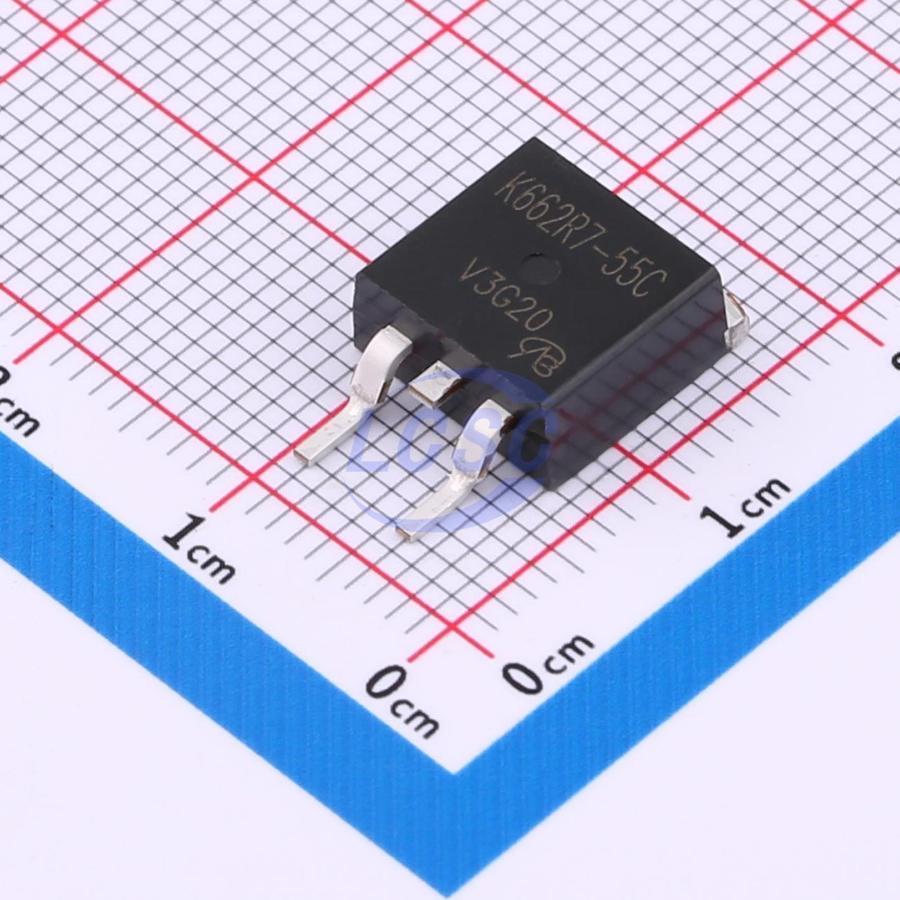

BUK662R7-55C-VB
N-Channel 60V 210A 375W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 210A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BUK662R7-55C-VB
- Store part #
- C18212557
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C18212557
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.37 | ₹203.37 |
| 10+ | ₹169.81 | ₹1,698.10 |
| 50+ | ₹151.31 | ₹7,565.50 |
| 100+ | ₹130.28 | ₹13,028.00 |
| 500+ | ₹120.92 | ₹60,460.00 |
| 1,000+ | ₹116.68 | ₹1,16,680.00 |
1 × ₹203.37
₹203.37
excl. GST
₹239.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
BUK662R7-55C-VB
₹203.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.17nF
- Current - Continuous Drain(Id)
- 210A
- Ciss-Input Capacitance
- 9.125nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 810pF
- RDS(on)
- 12mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 276nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.54 g
Overview
Applications
- OR operation
- Server
- DC/DC
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
