VBsemi ElecDatasheet (PDF)

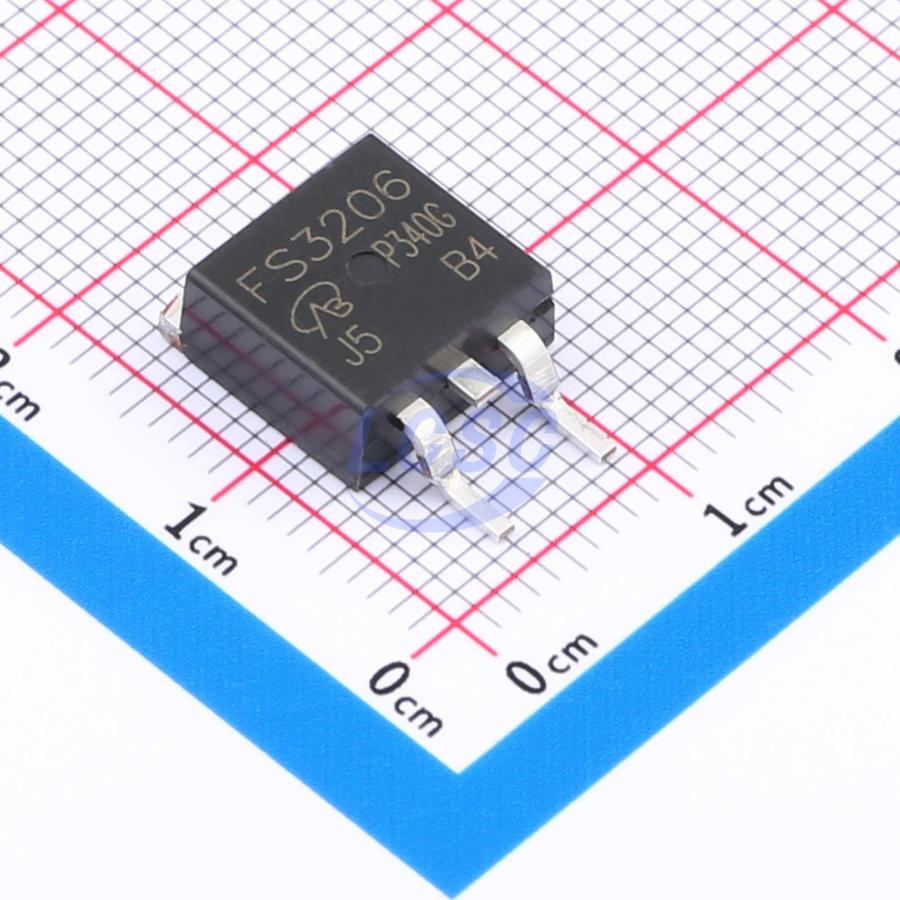

FS3206-VB
N-Channel 60V 210A 375W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 210A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FS3206-VB
- Store part #
- C20417562
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C20417562
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.03 | ₹201.03 |
| 10+ | ₹167.84 | ₹1,678.40 |
| 50+ | ₹149.57 | ₹7,478.50 |
| 100+ | ₹128.77 | ₹12,877.00 |
| 500+ | ₹119.52 | ₹59,760.00 |
| 1,000+ | ₹115.33 | ₹1,15,330.00 |
1 × ₹201.03
₹201.03
excl. GST
₹237.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FS3206-VB
₹201.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.17nF
- Current - Continuous Drain(Id)
- 210A
- Ciss-Input Capacitance
- 9.125nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 647pF
- RDS(on)
- 12mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 276nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.15 g
Overview
Applications
- Load Switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK662R7-55C-VB#C18212557VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹203.37 · 20 in stock | View |
 | 80N06 CMB80N06-VB#C18212511VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹203.37 · 20 in stock | View |
 | SUM110N06-04L-VB#C19711190VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹203.37 · 3 in stock | View |
 | IRFS3206TRPBF-VB#C18212597VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 57 | ₹199.48 · 57 in stock | View |
 | SUM110N06-3M4L-E3-VB#C20417693VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 14 | ₹201.03 · 14 in stock | View |
