VBsemi ElecDatasheet (PDF)

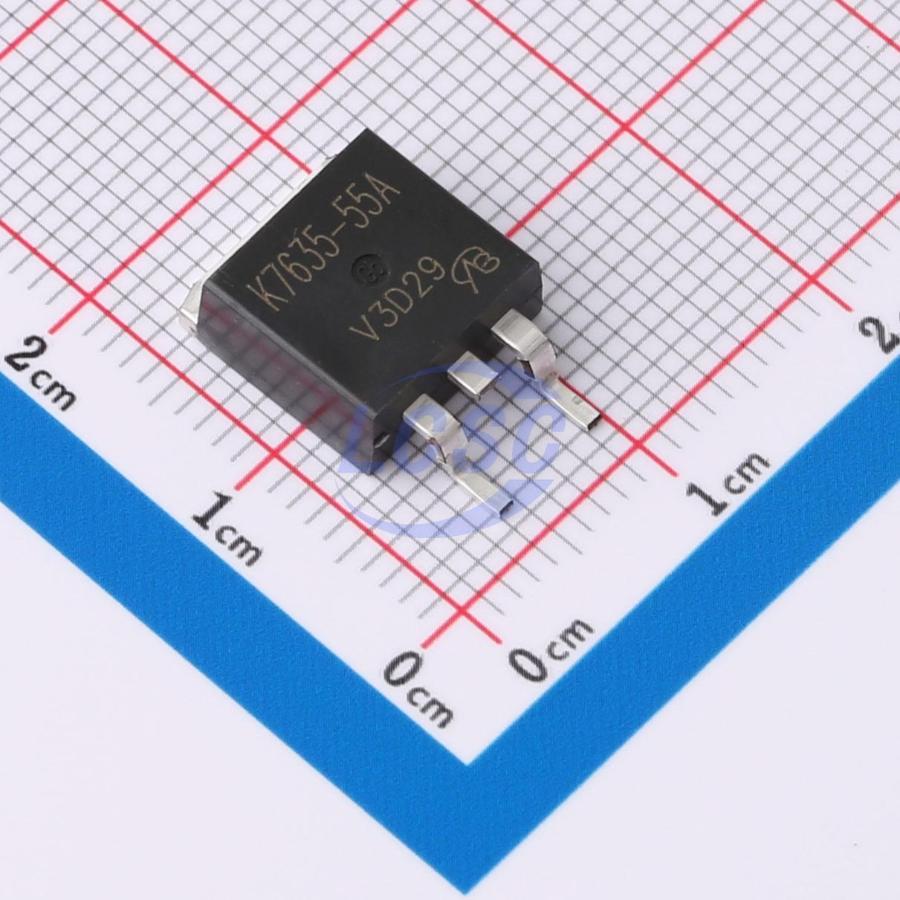

BUK7635-55A-VB
N-Channel 60V 50A 150W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 50A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BUK7635-55A-VB
- Store part #
- C7428945
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53 in stock
#C7428945
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.22 | ₹93.22 |
| 10+ | ₹75.45 | ₹754.50 |
| 50+ | ₹64.68 | ₹3,234.00 |
| 100+ | ₹55.70 | ₹5,570.00 |
| 500+ | ₹50.50 | ₹25,250.00 |
| 800+ | ₹47.71 | ₹38,168.00 |
1 × ₹93.22
₹93.22
excl. GST
₹110.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
BUK7635-55A-VB
₹93.22 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1nF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 32mΩ@10V;35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.484 g
Overview
Applications
- DC/DC converters and synchronous rectification - High-frequency circuits and battery management systems (BMS) - Motor drives and PCB control - Automotive electronics and uninterruptible power supplies (UPS)
Key features
- Halogen-free According to IEC 61249-2- Definition
- Surface Mount
- Available in Tape and Reel
- Dynamic dV/dt Rating
- Logic-Level Gate Drive
- Fast Switching
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK9635-55A-VB#C709926VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 19 | ₹109.39 · 19 in stock | View |
 | IRFZ34NSPBF-VB#C18795030VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹102.51 · 5 in stock | View |
 | IRLZ44NSPBF-VB#C19188232VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 708 | ₹109.35 · 708 in stock | View |
 | FZ24NS-VB#C20417752VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹96.00 · 20 in stock | View |
 | IRFZ44ES-VB#C878984VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 34 | ₹99.70 · 34 in stock | View |
