VBsemi ElecDatasheet (PDF)

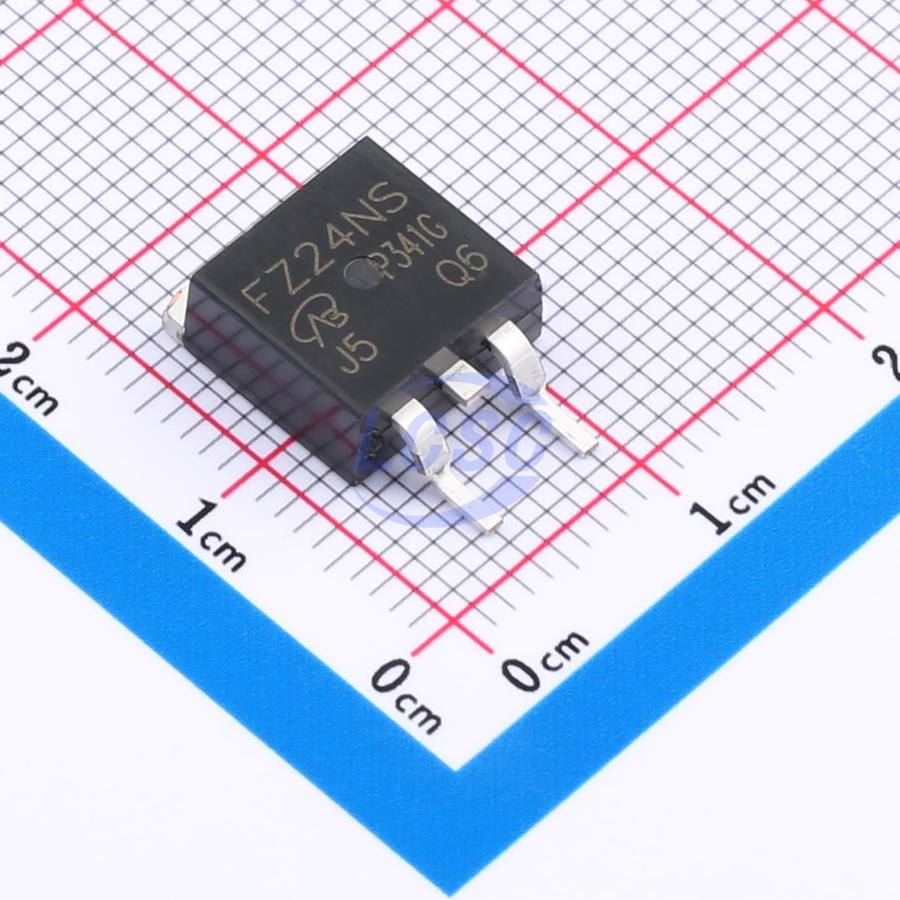

FZ24NS-VB
N-Channel 60V 50A 150W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 50A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FZ24NS-VB
- Store part #
- C20417752
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C20417752
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.00 | ₹96.00 |
| 10+ | ₹77.30 | ₹773.00 |
| 50+ | ₹68.07 | ₹3,403.50 |
| 100+ | ₹58.61 | ₹5,861.00 |
| 500+ | ₹53.14 | ₹26,570.00 |
| 1,000+ | ₹50.21 | ₹50,210.00 |
1 × ₹96.00
₹96.00
excl. GST
₹113.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FZ24NS-VB
₹96.00 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1nF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 32mΩ@10V;35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.44 g
Overview
Applications
- Load Switch
- Laptop Adapter Switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Surface mount
- Available in tape and reel packaging
- Dynamic dV/dt rating
- Logic level gate drive
- Fast switching
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFZ34NSPBF-VB#C18795030VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹102.51 · 5 in stock | View |
 | IRLZ44NSPBF-VB#C19188232VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 708 | ₹109.35 · 708 in stock | View |
 | IRFZ44ES-VB#C878984VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 34 | ₹99.70 · 34 in stock | View |
 | BUK9635-55A-VB#C709926VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 19 | ₹109.39 · 19 in stock | View |
 | BUK7635-55A-VB#C7428945VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 53 | ₹93.22 · 53 in stock | View |
