NexperiaDatasheet (PDF)

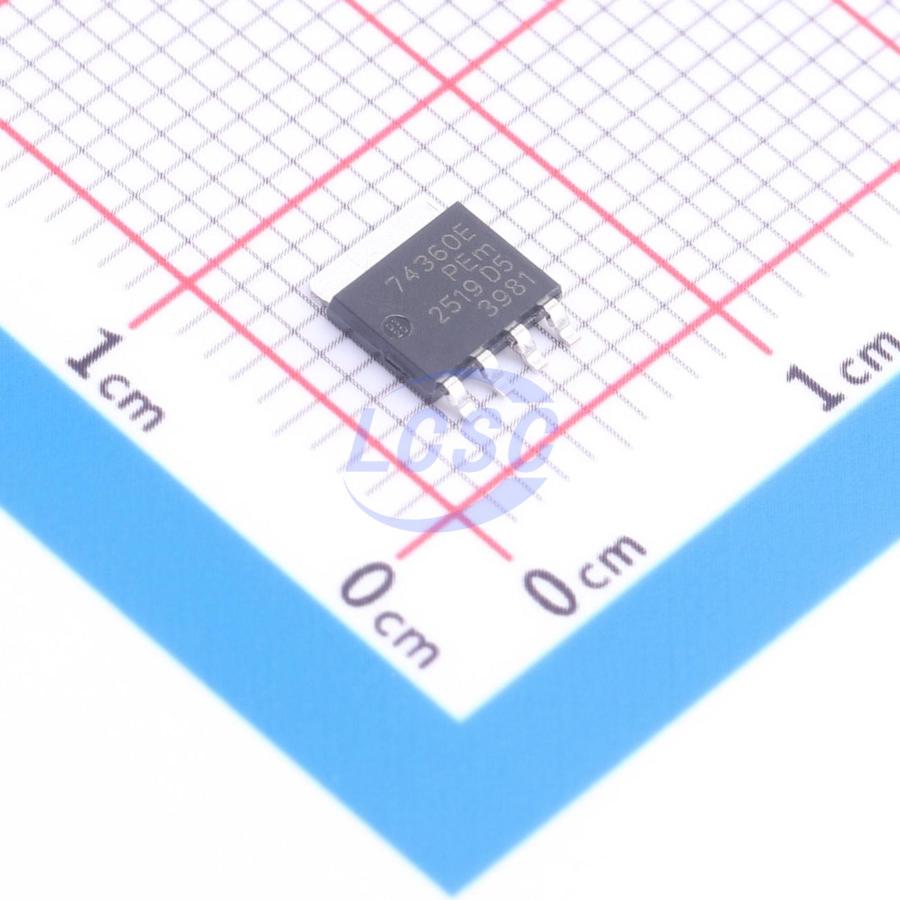

BUK7Y43-60EX
45W 60V 22A 29.8mΩ@10V 1 N-channel N-Channel SOT-669 Single FETs, MOSFETs RoHS
SOT-669ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK7Y43-60EX
- Store part #
- C549924
- Package / case
- SOT-669
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C549924
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.85 | ₹110.85 |
| 10+ | ₹108.02 | ₹1,080.20 |
| 30+ | ₹106.29 | ₹3,188.70 |
| 100+ | ₹104.54 | ₹10,454.00 |
1 × ₹110.85
₹110.85
excl. GST
₹130.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BUK7Y43-60EX
₹110.85 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 92pF
- Ciss-Input Capacitance
- 617pF
- Pd - Power Dissipation
- 45W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 22A
- Reverse Transfer Capacitance (Crss)
- 66pF
- RDS(on)
- 29.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.4nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.154 g
Overview
Standard-level N-channel MOSFET using TrenchMOS technology in LFPAK56 (Power SO8) package. This product has been designed and qualified to AEC Q101 standards for high-performance automotive applications.
Applications
- 12 V automotive systems
- Motor, lamp, and solenoid control
- Transmission control
- Ultra-high-performance power switching
Key features
- Q101 compliant
- Repetitive avalanche rated
- 175°C rated for high thermal demand environments
- True standard-level gate with VGS(th) > 1 V at 175°C
