VBsemi ElecDatasheet (PDF)

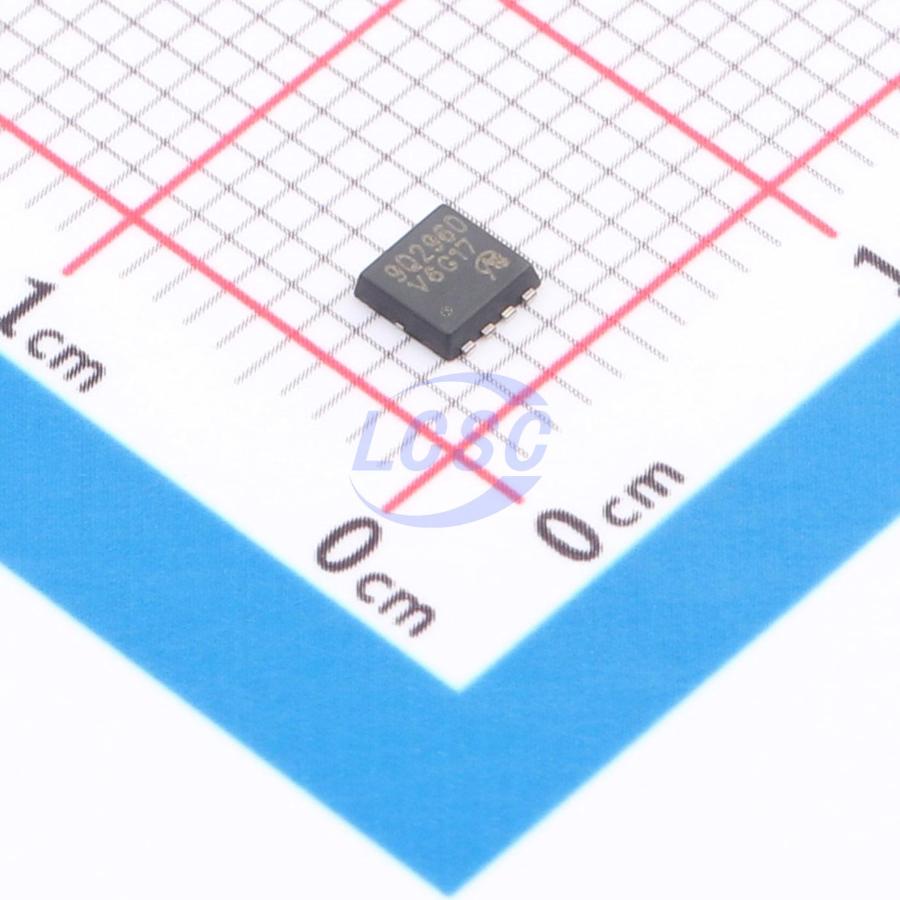

BXK9Q29-60EJ-VB
136W 60V 15A 10mΩ@10V 1 N-channel N-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BXK9Q29-60EJ-VB
- Store part #
- C52148745
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C52148745
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.03 | ₹111.03 |
| 10+ | ₹90.35 | ₹903.50 |
| 30+ | ₹79.90 | ₹2,397.00 |
| 100+ | ₹69.67 | ₹6,967.00 |
| 500+ | ₹63.36 | ₹31,680.00 |
| 1,000+ | ₹60.30 | ₹60,300.00 |
1 × ₹111.03
₹111.03
excl. GST
₹131.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BXK9Q29-60EJ-VB
₹111.03 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 470pF
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
Key features
- 175°C junction temperature
- Trench power MOSFET
- RoHS compliant
