VBsemi ElecDatasheet (PDF)

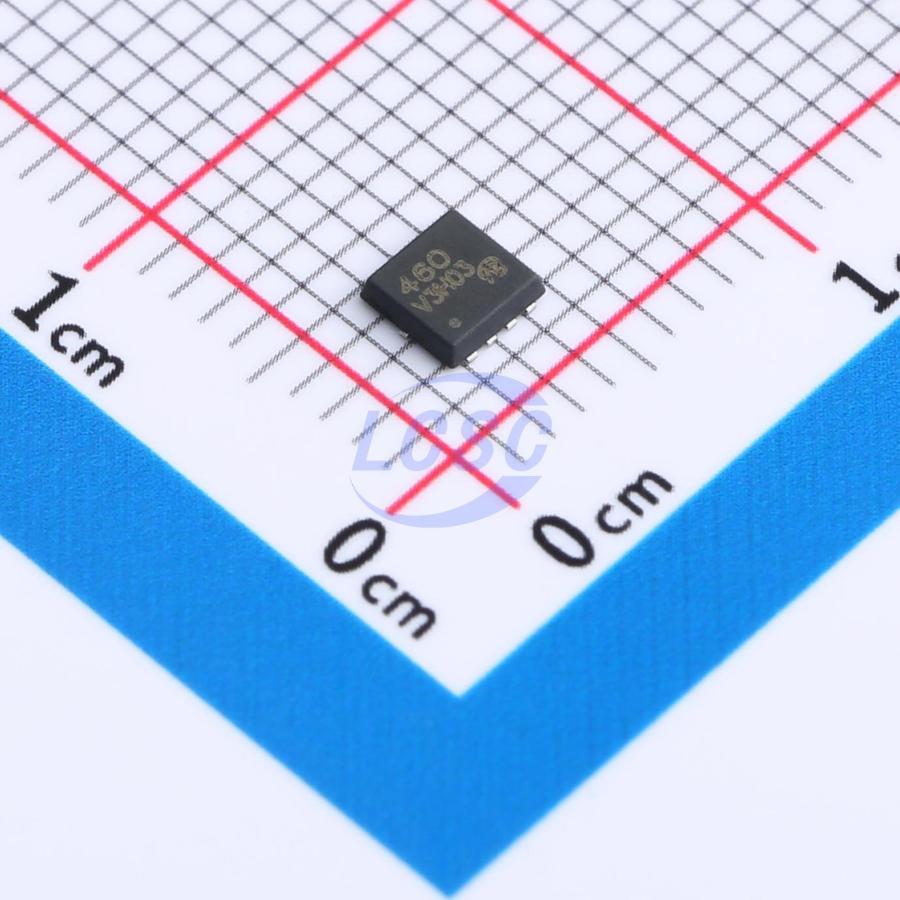

SQS460EN-T1-GE3-VB
N-Channel 60V 15A 136W Surface Mount DFN3x3-8
DFN3x3-8RoHSActive
MOSFET N-CH 60V 15A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SQS460EN-T1-GE3-VB
- Store part #
- C20417526
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C20417526
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.38 | ₹108.38 |
| 10+ | ₹88.19 | ₹881.90 |
| 30+ | ₹77.99 | ₹2,339.70 |
| 100+ | ₹68.02 | ₹6,802.00 |
| 500+ | ₹61.85 | ₹30,925.00 |
| 1,000+ | ₹58.87 | ₹58,870.00 |
1 × ₹108.38
₹108.38
excl. GST
₹127.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SQS460EN-T1-GE3-VB
₹108.38 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- OR-ing
- Server
- DC/DC
Key features
- Junction temperature 175°C
- Trench power MOSFET
- Material classification: RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7414DN-VB#C20626358VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 49 | ₹123.00 · 49 in stock | View |
| PXN012-60QLJ-VB#C52148627VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹119.96 · 10 in stock | View | |
 | BXK9Q29-60EJ-VB#C52148745VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹111.03 · 10 in stock | View |
 | NTTFS5820NLTAG-VB#C7494495VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 3 | ₹110.07 · 3 in stock | View |
 | NTTFS5826NLTAG-VB#C19188258VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 20 | ₹137.59 · 20 in stock | View |
