BOYAMICRO

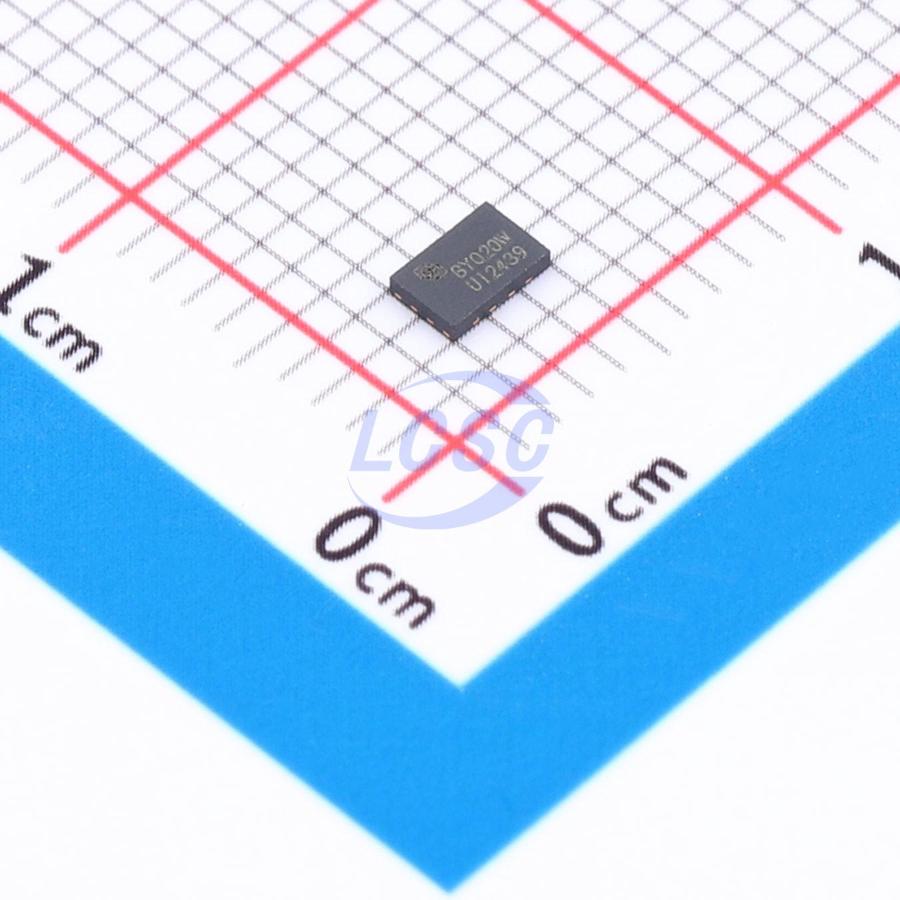

BY25Q20AWUIG(R)
2Mbit 1.65V~3.6V 85MHz SPI USON-8(2x3) Memory
USON-8(2x3)RoHSActive
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,965 in stock
#C50176337
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.92 | ₹69.60 |
| 50+ | ₹13.60 | ₹680.00 |
| 150+ | ₹13.39 | ₹2,008.50 |
| 500+ | ₹13.18 | ₹6,590.00 |
5 × ₹13.92
₹69.60
excl. GST
₹82.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BY25Q20AWUIG(R)
₹69.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 2Mbit
- Voltage - Supply
- 1.65V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 85MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 8ms
- Page Programming Time (Tpp)
- 2ms
- Interface
- SPI
- Standby Supply Current
- 0.6uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.138 g
Overview
BY25Q20AW is a 2Mbit SPI Flash memory designed for a wide range of high-density consumer applications where program code can be loaded from Flash into embedded or external RAM for execution. The device features a flexible erase architecture and page erase granularity, making it equally well-suited for data storage, eliminating the need for additional data storage devices.
Key features
- 2Mb SPI NOR Flash
- Serial Peripheral Interface
- Standard SPI: SCLK, /CS, SI, SO, /WP, /HOLD
- Dual SPI: SCLK, /CS, IO0, IO1, /WP, /HOLD
- Quad SPI: SCLK, /CS, IO0, IO1, IO2, IO3
- Software Reset
- Hardware Reset
- Read: Normal Read clock rate 33MHz, other Read clock rate 85MHz
- Program: Serial Input Page Program up to 256 bytes, Dual Input Page Program up to 256 bytes, Quad Input Page Program up to 256 bytes, Program Suspend/Resume supported
- Erase: Page Erase (256 bytes), Block Erase (64/32 KB), Sector Erase (4 KB), Chip Erase, Erase Suspend/Resume supported
- Program/Erase Speed: Page Program typical 2ms, Page Erase typical 8ms, Sector/Block Erase typical 8ms, Chip Erase typical 8ms
- Flexible Architecture: 4KB sectors, 32/64KB blocks
- Low Power: max operating current 3mA, max power-down current 0.6μA
- Software/Hardware Write Protection: three 512-byte security registers with OTP lock, protection enable/disable via WP pin, software write protection for all or portion of memory, top/bottom and sector/block selection supported
- Single Power Supply: full voltage range 1.65 ~ 3.6 V
- Temperature Range: commercial (0°C to +70°C), industrial (-40°C to +85°C)
- Endurance/Data Retention: typical 100,000 program-erase cycles per sector, typical 20-year data retention at +55°C
