VISHAYDatasheet (PDF)

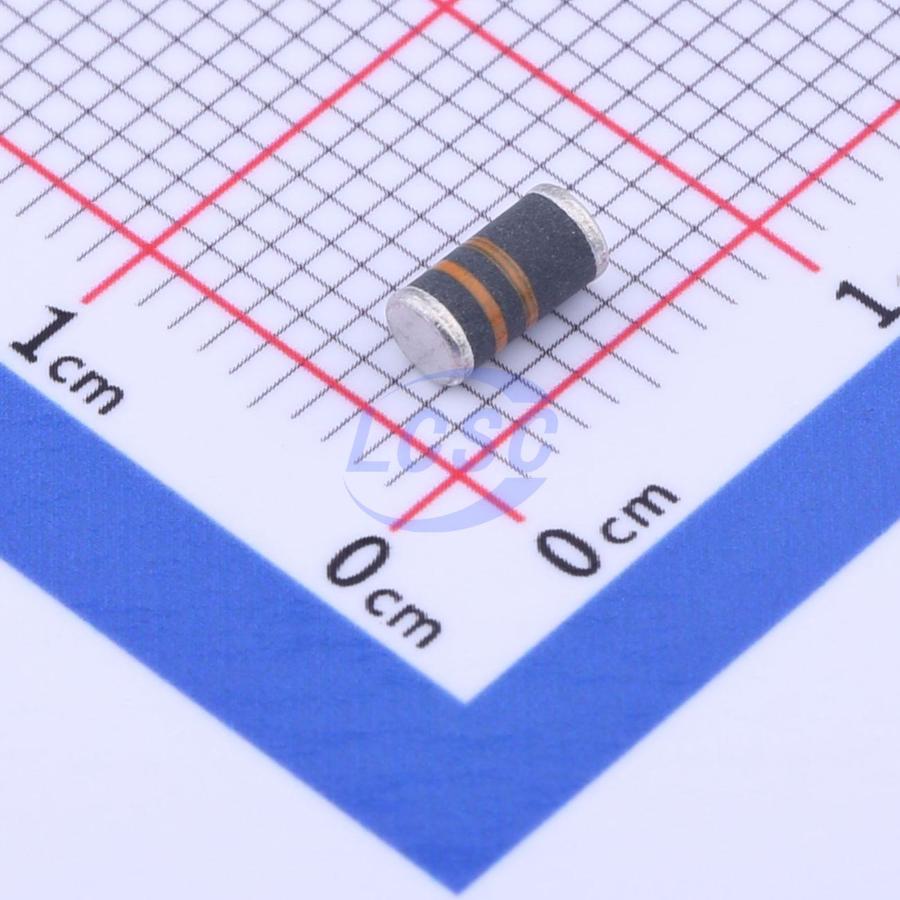

BYM13-40-E3/96
Diode 1 Independent 40V 1A Surface Mount DO-213AB
DO-213ABROHS3 CompliantActive
DIODE SCHOTTKY 40V DO-213AB
- Manufacturer
- VISHAY
- Manufacturer part #
- BYM13-40-E3/96
- Store part #
- C968640
- Package / case
- DO-213AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
819 in stock
#C968640
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.28 | ₹61.28 |
| 10+ | ₹47.59 | ₹475.90 |
| 30+ | ₹41.73 | ₹1,251.90 |
| 100+ | ₹34.33 | ₹3,433.00 |
| 500+ | ₹31.08 | ₹15,540.00 |
| 1,500+ | ₹29.12 | ₹43,680.00 |
1 × ₹61.28
₹61.28
excl. GST
₹72.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BYM13-40-E3/96
₹61.28 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 500mV@1A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
Applications
- For use in low voltage high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key features
- MELF Schottky rectifier
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 250℃
- AEC-Q101 qualified
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SGL41-40-E3/96#C222517VISHAY · DO-213AB | VISHAY | DO-213AB | 640 | ₹73.29 · 640 in stock | View |
| BYM13-40-E3/97#C5358860VISHAY · DO-213AB | VISHAY | DO-213AB | 14 | ₹77.38 · 14 in stock | View | |
 | BYM13-60-E3/96#C145251VISHAY · DO-213AB | VISHAY | DO-213AB | 1,428 | ₹70.41 · 1,428 in stock | View |
 | 1N5819UR-1E3#C3759310MICROCHIP · DO-213AB | MICROCHIP | DO-213AB | 1 | ₹2,373.78 · 1 in stock | View |
 | TMBYV10-60FILM#C283271ST · DO-213AB(MELF) | ST | DO-213AB(MELF) | 50 | ₹29.38 · 50 in stock | View |
