NexperiaDatasheet (PDF)

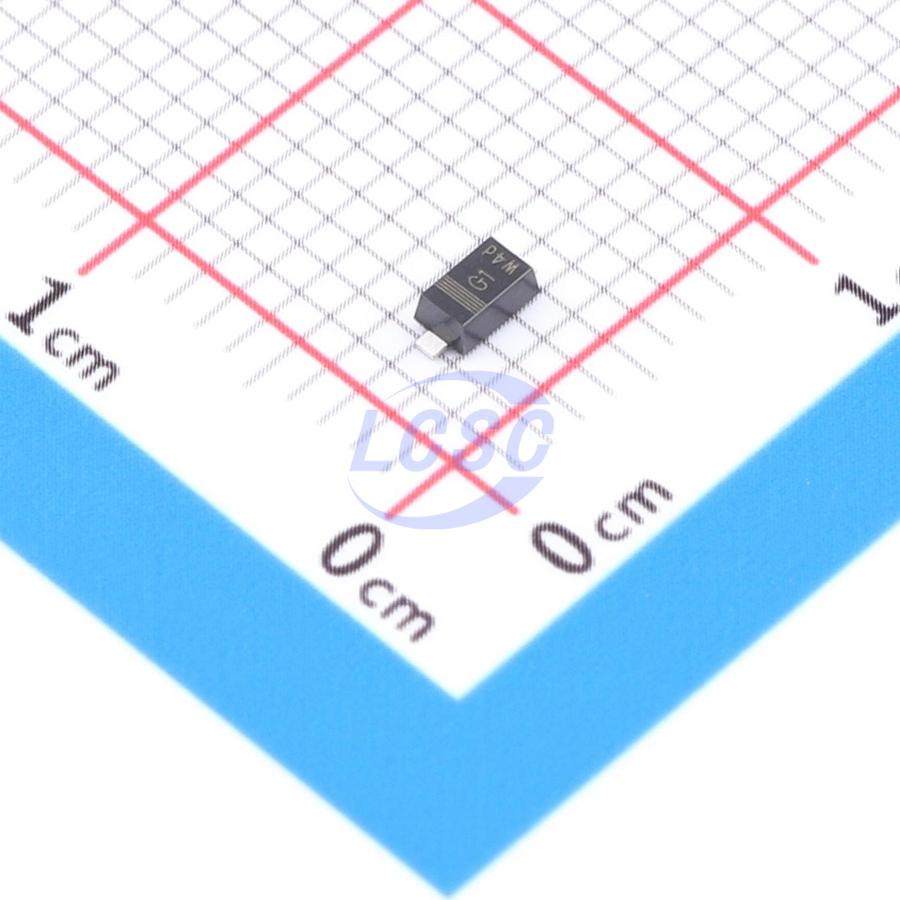

BZT52H-A4V7-QX
1 Independent 4.65V~4.75V 4.7V SOD-123F Single Zener Diodes RoHS
SOD-123FROHS3 CompliantActive
DIODE ZENER 4.7V 830mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-A4V7-QX
- Store part #
- C7507896
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C7507896
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.57 | ₹71.57 |
| 10+ | ₹57.43 | ₹574.30 |
| 30+ | ₹50.26 | ₹1,507.80 |
| 100+ | ₹43.29 | ₹4,329.00 |
| 500+ | ₹38.95 | ₹19,475.00 |
| 1,000+ | ₹36.77 | ₹36,770.00 |
1 × ₹71.57
₹71.57
excl. GST
₹84.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-A4V7-QX
₹71.57 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±1%
- Pd - Power Dissipation
- 830mW
- Reverse Leakage Current (Ir)
- 3uA@2V
- Impedance(Zzt)
- 78Ω
- Zener Voltage(Range)
- 4.65V~4.75V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
General- purpose Zener diodes in an SOD123F small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 830 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52-B4V7J#C550220Nexperia · SOD-123 | Nexperia | SOD-123 | 140 | ₹4.52 · 140 in stock | View |
 | BZT52-B4V7X#C550221Nexperia · SOD-123 | Nexperia | SOD-123 | 2,320 | ₹4.58 · 2,320 in stock | View |
 | BZT52B4V7Q#C20600006YANGJIE · SOD-123 | YANGJIE | SOD-123 | 20 | ₹4.92 · 20 in stock | View |
 | BZT52B4V7#C2904809YONGYUTAI · SOD-123 | YONGYUTAI | SOD-123 | 5,700 | ₹1.92 · 5,700 in stock | View |
 | BZT52B4V7#C3019933Slkor · SOD-123 | Slkor | SOD-123 | 1,600 | ₹2.73 · 1,600 in stock | View |
