NexperiaDatasheet (PDF)

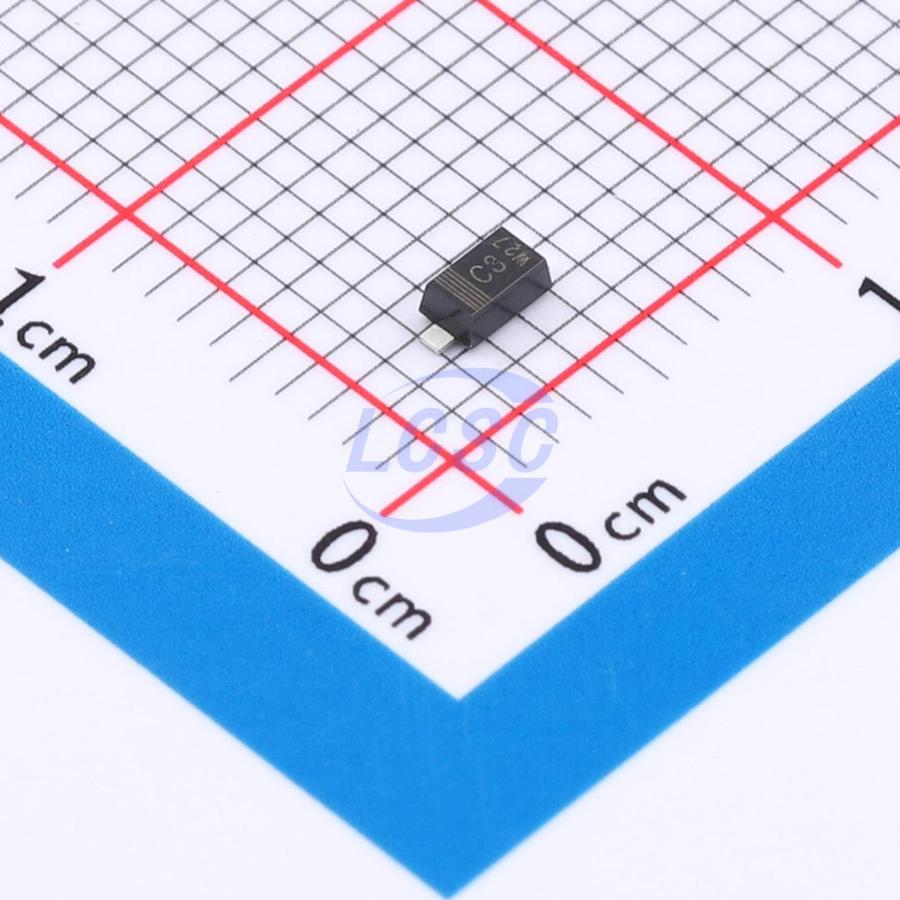

BZT52H-C56,115
1 Independent 52V~60V 56V SOD-123F Single Zener Diodes RoHS
SOD-123FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-C56,115
- Store part #
- C550353
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C550353
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.69 | ₹43.45 |
| 50+ | ₹8.49 | ₹424.50 |
| 150+ | ₹8.36 | ₹1,254.00 |
| 500+ | ₹8.22 | ₹4,110.00 |
5 × ₹8.69
₹43.45
excl. GST
₹51.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-C56,115
₹43.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 375mW
- Reverse Leakage Current (Ir)
- 50nA@39.2V
- Impedance(Zzt)
- 120Ω
- Zener Voltage(Range)
- 52V~60V
- Zener Voltage(Nom)
- 56V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.082 g
Overview
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤830 mW
- Three tolerance series: ±1 %, ±2 % and approximately ±5 %
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ56T1G#C463823onsemi · SOD-123 | onsemi | SOD-123 | 460 | ₹6.10 · 460 in stock | View |
 | SZMMSZ56T1G#C894707onsemi · SOD-123 | onsemi | SOD-123 | 660 | ₹33.26 · 660 in stock | View |
 | MM1Z56#C169490Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 550 | ₹1.92 · 550 in stock | View |
| MM1Z56#C22376104Wild Goose · SOD-123 | Wild Goose | SOD-123 | 2,050 | ₹1.47 · 2,050 in stock | View | |
 | MM1Z56W#C2826555Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 2,350 | ₹1.93 · 2,350 in stock | View |
