STDatasheet (PDF)

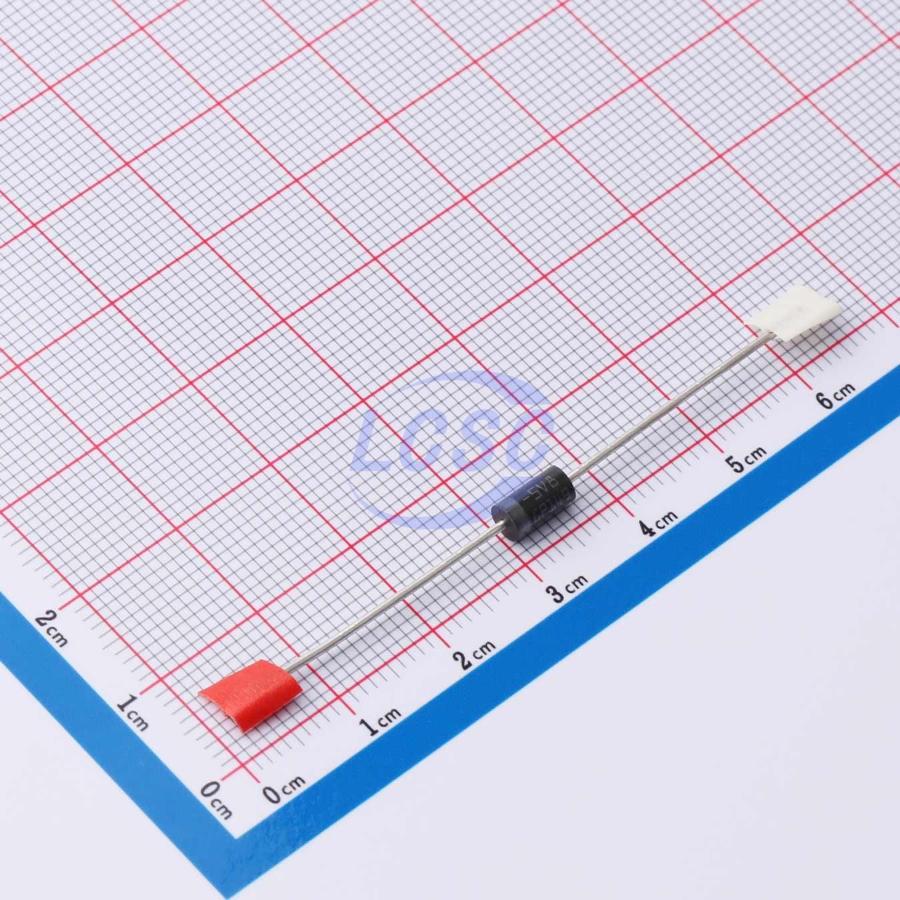

BZW06-5V8
13.4VC Clamp 298A@8/20us Ipp TVS DIODE DO-15
DO-15ROHS3 CompliantActive
TVS DIODE 5.8VWM 13.4VC DO-15
- Manufacturer
- ST
- Manufacturer part #
- BZW06-5V8
- Store part #
- C2970942
- Package / case
- DO-15
- Category
- TVS Diodes
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
115 in stock
#C2970942
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.84 | ₹189.20 |
| 50+ | ₹30.28 | ₹1,514.00 |
| 150+ | ₹27.04 | ₹4,056.00 |
| 1,000+ | ₹23.01 | ₹23,010.00 |
| 2,000+ | ₹21.21 | ₹42,420.00 |
| 5,000+ | ₹20.12 | ₹1,00,600.00 |
5 × ₹37.84
₹189.20
excl. GST
₹223.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per box
BZW06-5V8
₹189.20 for 5 + GST
Specifications
- Clamping Voltage
- 13.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 298A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 6.45V
- type
- TVS
- Reverse Leakage Current (Ir)
- 20uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 1,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.514 g
Overview
Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS technology and low voltage supplied IC’s.
Key features
- 600 W peak pulse power (10/1000 μs)
- Stand-off voltage range 5.8 to 376 V
- Unidirectional and bidirectional types
- Low clamping factor
- Fast response time
- UL recognized, file: E136224
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P6KE6.8A#C409413Littelfuse · DO-15 | Littelfuse | DO-15 | 3,575 | ₹22.32 · 3,575 in stock | View |
 | P6KE6.8A#C10175RUILON · DO-15 | RUILON | DO-15 | 440 | ₹11.66 · 440 in stock | View |
| P6KE6.8A#C53260783GOODWORK · DO-15 | GOODWORK | DO-15 | 410 | ₹9.47 · 410 in stock | View | |
 | SA6.0A#C1973281Littelfuse · DO-204AC(DO-15) | Littelfuse | DO-204AC(DO-15) | 54 | ₹68.89 · 54 in stock | View |
| P6KE6.8A#C3719824DIOTEC · DO-15 | DIOTEC | DO-15 | On request | ₹11.25 · 0 in stock | View | |
