SILICON LABSDatasheet (PDF)

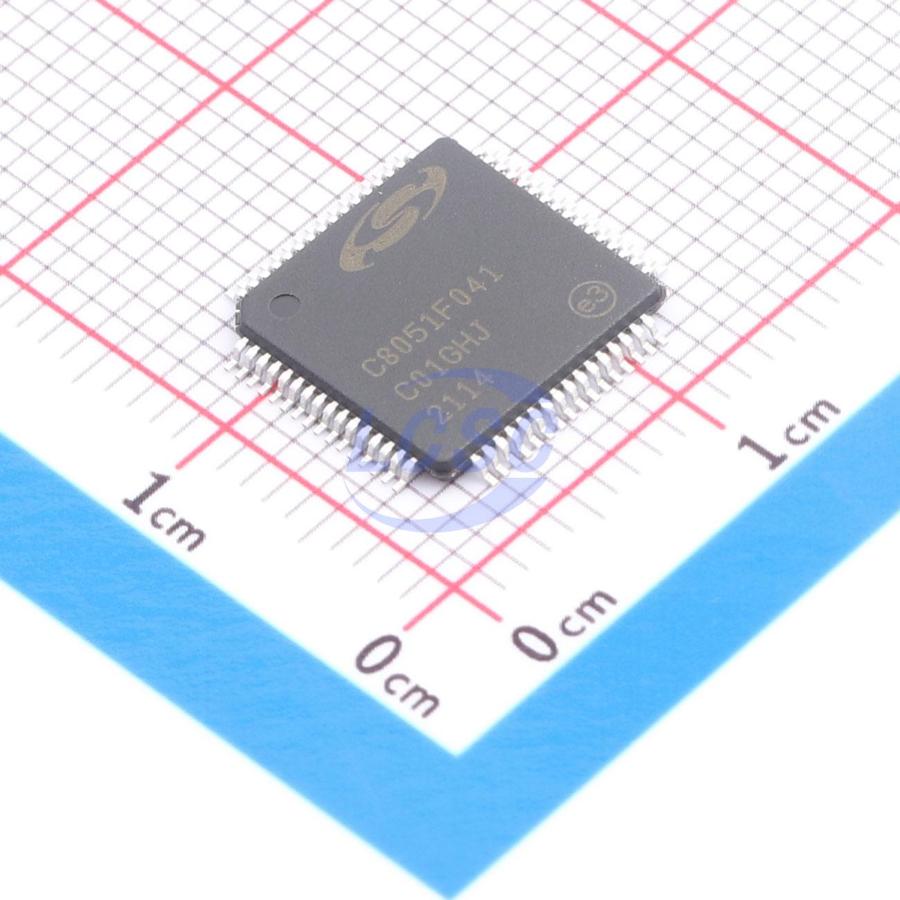

C8051F041-GQR
51 Series 8 Bit 25MHz TQFP-64(10x10) Microcontrollers RoHS
TQFP-64(10x10)ROHS CompliantActive
8K ISP FLASH MCU Family, High-Speed 8051 μC Core, 10 or 12-Bit SAR ADC
- Manufacturer
- SILICON LABS
- Manufacturer part #
- C8051F041-GQR
- Store part #
- C965910
- Package / case
- TQFP-64(10x10)
- Category
- Microcontrollers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C965910
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,701.70 | ₹1,701.70 |
| 10+ | ₹1,621.77 | ₹16,217.70 |
| 30+ | ₹1,483.27 | ₹44,498.10 |
| 100+ | ₹1,362.40 | ₹1,36,240.00 |
1 × ₹1,701.70
₹1,701.70
excl. GST
₹2,008.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
C8051F041-GQR
₹1,701.70 for 1 + GST
Specifications
- DAC (Bit)
- 10bit;12bit
- ADC (Bit)
- 8bit;12bit
- Number of I/O
- 32
- Operating Temperature
- -40℃~+85℃
- Program Memory Type
- FLASH
- Voltage - Supply
- 2.7V~3.6V
- Program Storage Size
- 64KB
- CPU Core
- 51 Series
- Core Size
- 8 Bit
- CPU Maximum Speed
- 25MHz
- Oscillator Type
- Built-in
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.403 g
Overview
Key features
- 12-bit (C8051F040/1) or 10-bit (C8051F042/3/4/5/6/7) resolution
- ± 1 LSB INL, guaranteed no missing codes
- Programmable throughput up to 100ksps
- 13 External Inputs; single-ended or differential
- SW programmable high voltage difference amplifier
- Programmable amplifier gain: 16, 8, 4, 2, 1, 0.5
- Data-dependent windowed interrupt generator
- Built-in temperature sensor
- Programmable throughput up to 500ksps (8-bit SAR ADC for C8051F040/1/2/3 only)
- 8 External Inputs, single-ended or differential (8-bit SAR ADC for C8051F040/1/2/3 only)
- Programmable amplifier gain: 4, 2, 1, 0.5 (8-bit SAR ADC for C8051F040/1/2/3 only)
- Can synchronize outputs to timers for jitter-free waveform generation (Two 12-bit DACs for C8051F040/1/2/3 only)
- Three Analog Comparators
- Programmable hysteresis/response time
- Precision vDD Monitor/Brown-Out Detector
- On-Chip JTAG Debug & Boundary Scan
- On-chip debug circuitry facilitates full-speed, nonintrusive in-circuit/in-system debugging
- Provides breakpoints, single-stepping, watchpoints, stack monitor; inspect/modify memory and registers
- Superior performance to emulation systems using ICE-chips, target pods, and sockets
- IEEE1149.1 compliant boundary scan
- Complete development kit
- Pipelined instruction architecture; executes 70% of instruction set in 1 or 2 system clocks
- Up to 25 MIPS throughput with 25MHz clock
- 20 vectored interrupt sources
- 4352 bytes internal data RAM (4k + 256)
- 64 kB (C8051F040/1/2/3/4/5) or 32kB (C8051F046/7) Flash; in-system programmable in 512-byte sectors
- External 64 kB data memory interface (programmable multiplexed or non-multiplexed modes)
- 8 byte-wide port I/O (C8051F040/2/4/6); 5 V tolerant
- 4 byte-wide port I/O (C8051F041/3/5/7); 5 V tolerant
- Bosch Controller Area Network (CAN 2.0B), hardware
- SMBus (I²C Compatible), SPI, and two UART serial ports available concurrently
- Programmable 16-bit counter/timer array with 6 capture/compare modules
- 5 general purpose 16-bit counter/timers
- Dedicated watch-dog timer; bi-directional reset pin
- Internal calibrated programmable oscillator: 3 to 24.5MHz
- External oscillator: crystal, RC, C, or clock
- Real-time clock mode using Timer2, 3, 4, or PCA
- Supply Voltage: 2.7 to 3.6V
- Multiple power saving sleep and shutdown modes
- 100-Pin and 64-Pin TQFP Packages Available
- Temperature Range: -40 to +85°C
