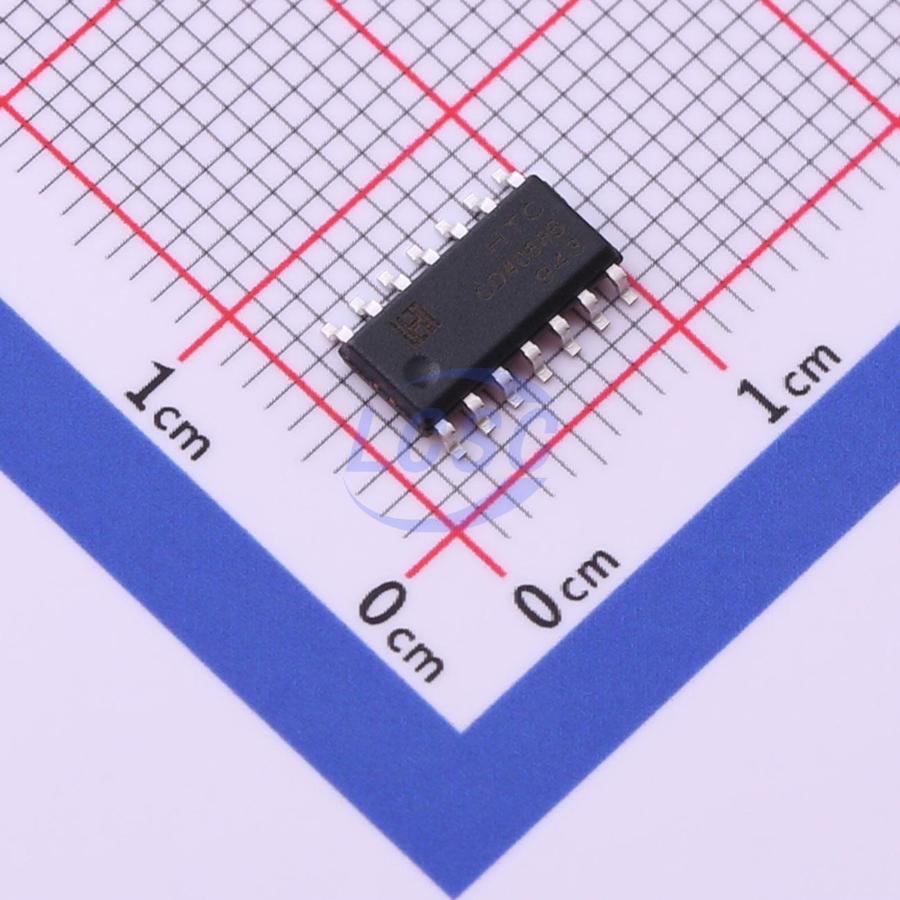

CD4066BD
4 400Ω 3V~18V SOP-14 Analog Switches, Multiplexers, Demultiplexers RoHS
SOP-14ROHS CompliantActive
CMOS Quad Bilateral Switch
- Manufacturer
- HTC
- Manufacturer part #
- CD4066BD
- Store part #
- C558790
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,405 in stock
#C558790
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.77 | ₹203.85 |
| 50+ | ₹32.31 | ₹1,615.50 |
| 150+ | ₹28.68 | ₹4,302.00 |
| 500+ | ₹24.16 | ₹12,080.00 |
| 2,500+ | ₹20.55 | ₹51,375.00 |
| 5,000+ | ₹19.33 | ₹96,650.00 |
5 × ₹40.77
₹203.85
excl. GST
₹240.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4066BD
₹203.85 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -55℃~+125℃
- Number of Channels
- 4
- Ron
- 400Ω
- Voltage - Supply
- 3V~18V
- Propagation Delay
- 20ns
- Con
- 7.5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
Key features
- Wide operating voltage range: 3.0V to 18.0V
- Maximum input current of 1μA at 18V over the full package temperature range; 100nA at 25°C and 18V
- Standard symmetrical output characteristics
- Noise margin: 1.0V minimum at 5.0V supply; 2.0V minimum at 10.0V supply; 2.5V minimum at 15.0V supply
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4066BM96#C54755TI · SOIC-14 | TI | SOIC-14 | 9,610 | ₹26.09 · 9,610 in stock | View |
 | CD4066BQDRQ1#C544588TI · SOIC-14 | TI | SOIC-14 | 2 | ₹90.35 · 2 in stock | View |
 | MC14066BDR2G#C52828onsemi · SOP-14 | onsemi | SOP-14 | 8,870 | ₹36.08 · 8,870 in stock | View |
 | 4066G-S14-R#C5310359UTC · SOP-14 | UTC | SOP-14 | 52 | ₹26.06 · 52 in stock | View |
 | HEF4066BT-Q100J#C551463Nexperia · SO-14 | Nexperia | SO-14 | 80 | ₹87.17 · 80 in stock | View |
