VBsemi ElecDatasheet (PDF)

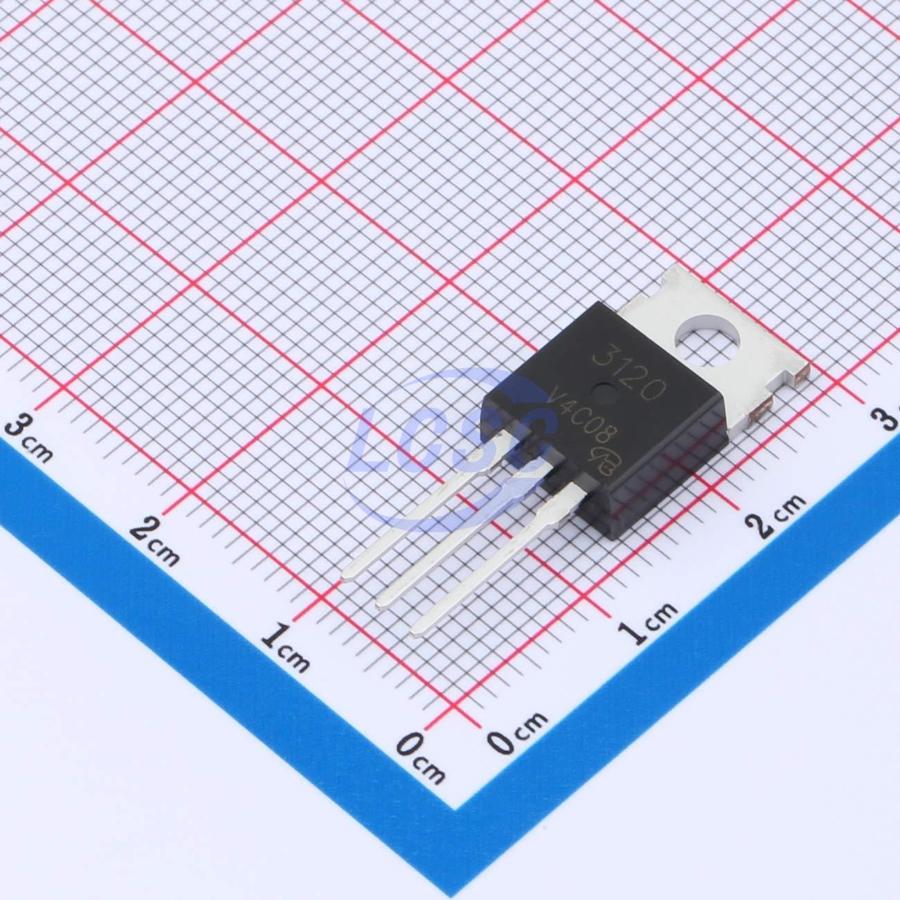

CEP3120-VB
N-Channel 30V 80A 120W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 30V 80A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEP3120-VB
- Store part #
- C20755422
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C20755422
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.26 | ₹72.26 |
| 10+ | ₹56.77 | ₹567.70 |
| 50+ | ₹50.27 | ₹2,513.50 |
| 100+ | ₹41.90 | ₹4,190.00 |
| 500+ | ₹38.13 | ₹19,065.00 |
| 1,000+ | ₹36.04 | ₹36,040.00 |
1 × ₹72.26
₹72.26
excl. GST
₹85.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
CEP3120-VB
₹72.26 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 120W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 6mΩ@10V;9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.7 g
Overview
Applications
- DC-DC converter
- High-speed switching
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK1388-VB#C29778724VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹72.47 · 10 in stock | View |
 | VBM1310#C516954VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 45 | ₹86.43 · 45 in stock | View |
 | AP40N03GP-VB#C693303VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹77.94 · 3 in stock | View |
 | CEP51A3-VB#C20755714VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹75.62 · 20 in stock | View |
 | CEP603ALS2-VB#C29779281VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹72.47 · 10 in stock | View |
