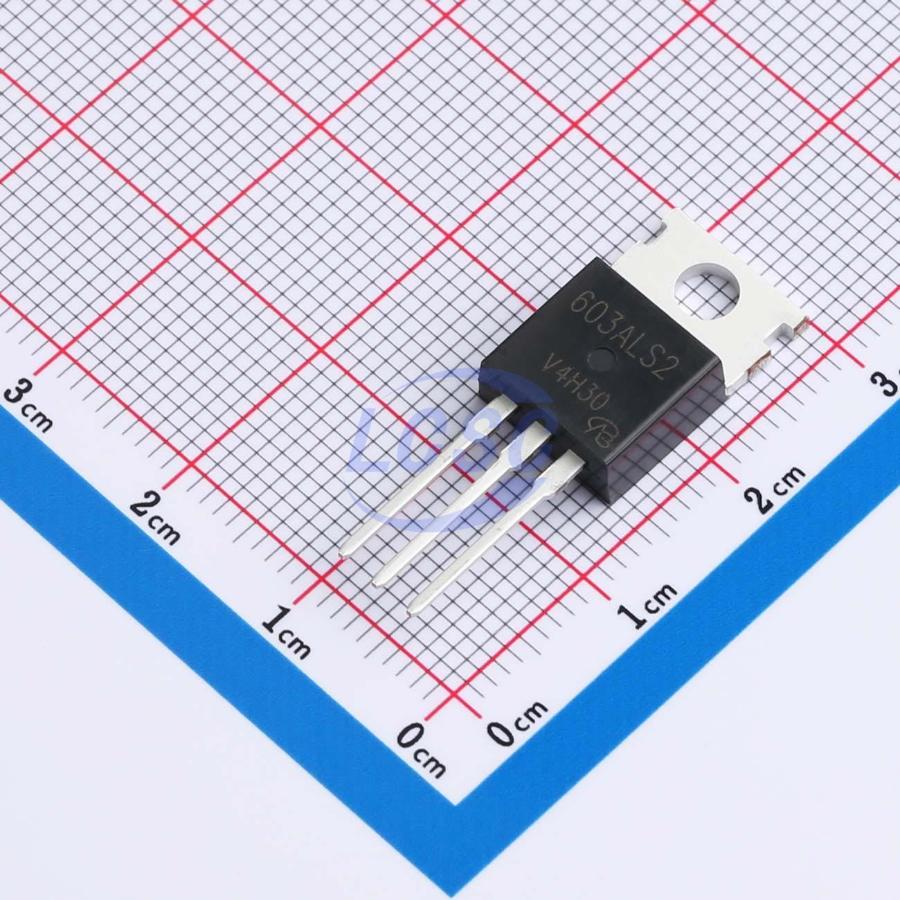

CEP603ALS2-VB
N-Channel 30V 80A 120W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 30V 80A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CEP603ALS2-VB
- Store part #
- C29779281
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779281
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.47 | ₹72.47 |
| 10+ | ₹56.93 | ₹569.30 |
| 50+ | ₹50.42 | ₹2,521.00 |
| 100+ | ₹42.02 | ₹4,202.00 |
| 500+ | ₹38.23 | ₹19,115.00 |
| 1,000+ | ₹36.13 | ₹36,130.00 |
1 × ₹72.47
₹72.47
excl. GST
₹85.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
CEP603ALS2-VB
₹72.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 525pF
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 120W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 6mΩ@10V;9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V;25nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.21 g
Overview
Applications
- Motor drive
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK2844_06-VB#C29779388VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹72.47 · 10 in stock | View |
 | CEP51A3-VB#C20755714VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹75.62 · 20 in stock | View |
 | PSMN022-30PL-VB#C725137VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 32 | ₹91.22 · 32 in stock | View |
 | 2SK1388-VB#C29778724VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹72.47 · 10 in stock | View |
 | CEP3120-VB#C20755422VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 9 | ₹72.26 · 9 in stock | View |
