JSCJDatasheet (PDF)

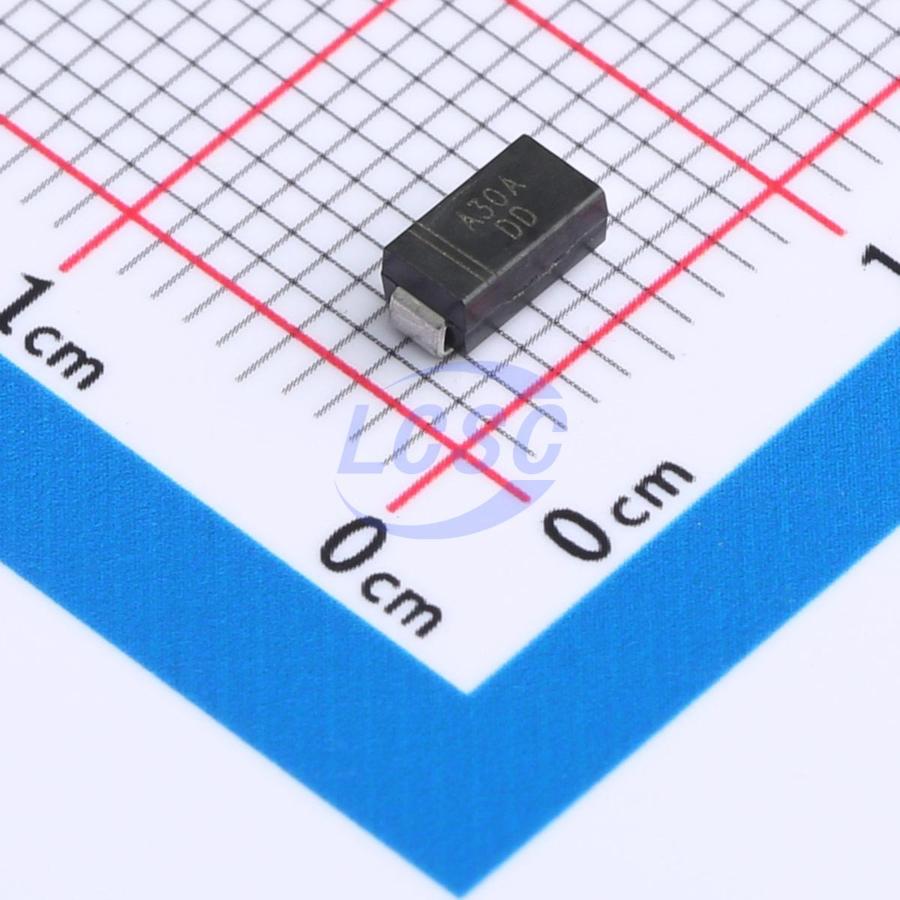

CJSMAJ30A
47.9VC Clamp 8.3A@10/1000us Ipp TVS DIODE SMAG
SMAGROHS CompliantActive
TVS DIODE 30VWM 47.9VC SMAG
- Manufacturer
- JSCJ
- Manufacturer part #
- CJSMAJ30A
- Store part #
- C7499074
- Package / case
- SMAG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C7499074
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.95 | ₹69.50 |
| 100+ | ₹5.53 | ₹553.00 |
| 300+ | ₹4.83 | ₹1,449.00 |
| 1,000+ | ₹4.30 | ₹4,300.00 |
| 5,000+ | ₹3.88 | ₹19,400.00 |
| 10,000+ | ₹3.66 | ₹36,600.00 |
10 × ₹6.95
₹69.50
excl. GST
₹82.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJSMAJ30A
₹69.50 for 10 + GST
Specifications
- Clamping Voltage
- 47.9V
- Peak Pulse Current (Ipp)
- 8.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 36.77V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.114 g
Overview
Key features
- PPP 400W
- VRWM 10V - 100V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ30A#C1509533JSCJ · SMAG | JSCJ | SMAG | 4,700 | ₹10.07 · 4,700 in stock | View |
 | P4SMA36A#C5294607JSCJ · SMAG | JSCJ | SMAG | 1,770 | ₹8.39 · 1,770 in stock | View |
 | SMAJ28A#C1509532JSCJ · SMAG | JSCJ | SMAG | 28,960 | ₹8.63 · 28,960 in stock | View |
 | CJSMAJ28A#C7499073JSCJ · SMAG | JSCJ | SMAG | 4,660 | ₹6.96 · 4,660 in stock | View |
 | SMAJ33A#C5294337JSCJ · SMAG | JSCJ | SMAG | 9,780 | ₹8.45 · 9,780 in stock | View |
