JSCJDatasheet (PDF)

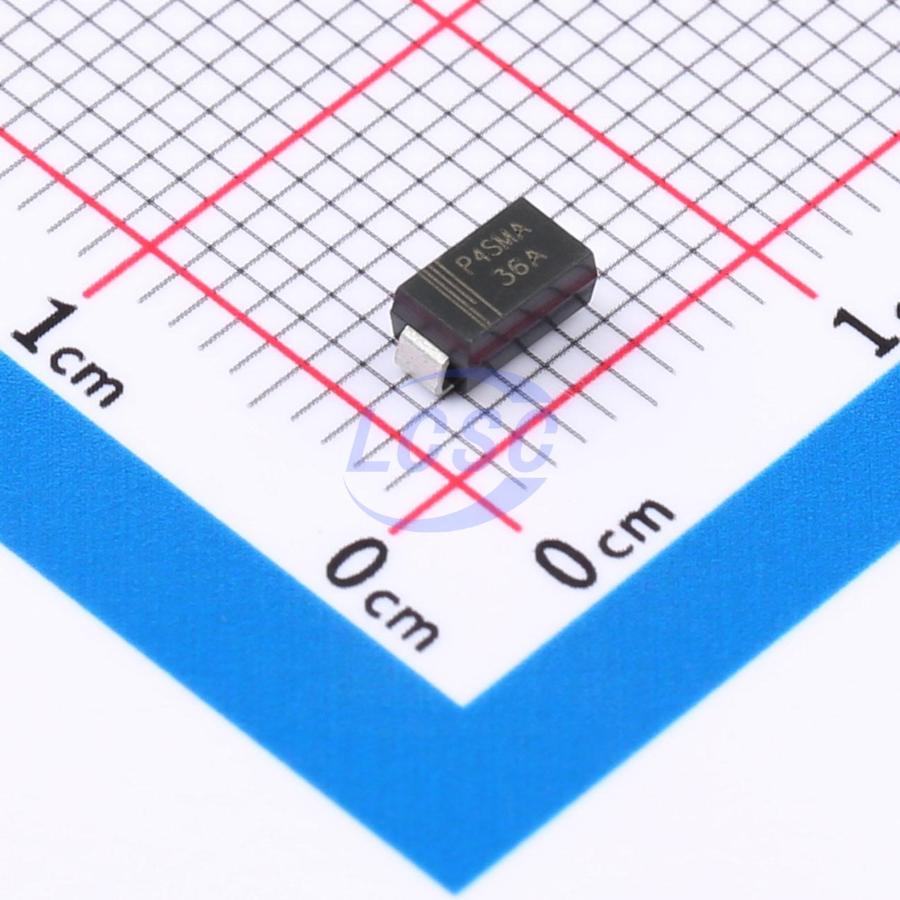

P4SMA36A
49.9VC Clamp 8.02A Ipp TVS DIODE SMAG
SMAGROHS CompliantActive
TVS DIODE 30.8VWM 49.9VC SMAG
- Manufacturer
- JSCJ
- Manufacturer part #
- P4SMA36A
- Store part #
- C5294607
- Package / case
- SMAG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,770 in stock
#C5294607
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.39 | ₹83.90 |
| 100+ | ₹6.71 | ₹671.00 |
| 300+ | ₹5.86 | ₹1,758.00 |
| 1,000+ | ₹5.23 | ₹5,230.00 |
| 5,000+ | ₹4.72 | ₹23,600.00 |
| 10,000+ | ₹4.47 | ₹44,700.00 |
10 × ₹8.39
₹83.90
excl. GST
₹99.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
P4SMA36A
₹83.90 for 10 + GST
Specifications
- Clamping Voltage
- 49.9V
- Peak Pulse Current (Ipp)
- 8.02A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 34.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 30.8V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.107 g
Overview
Applications
- Clamping Voltage
Key features
- 400W VRWM 5.8V - 513V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ30A#C1509533JSCJ · SMAG | JSCJ | SMAG | 4,700 | ₹10.07 · 4,700 in stock | View |
 | CJSMAJ30A#C7499074JSCJ · SMAG | JSCJ | SMAG | 90 | ₹6.95 · 90 in stock | View |
 | SMAJ33A#C5294337JSCJ · SMAG | JSCJ | SMAG | 9,780 | ₹8.45 · 9,780 in stock | View |
 | CJSMAJ33A#C7499075JSCJ · SMAG | JSCJ | SMAG | 1,710 | ₹6.64 · 1,710 in stock | View |
 | SMAJ28A#C1509532JSCJ · SMAG | JSCJ | SMAG | 28,960 | ₹8.63 · 28,960 in stock | View |
