JSCJDatasheet (PDF)

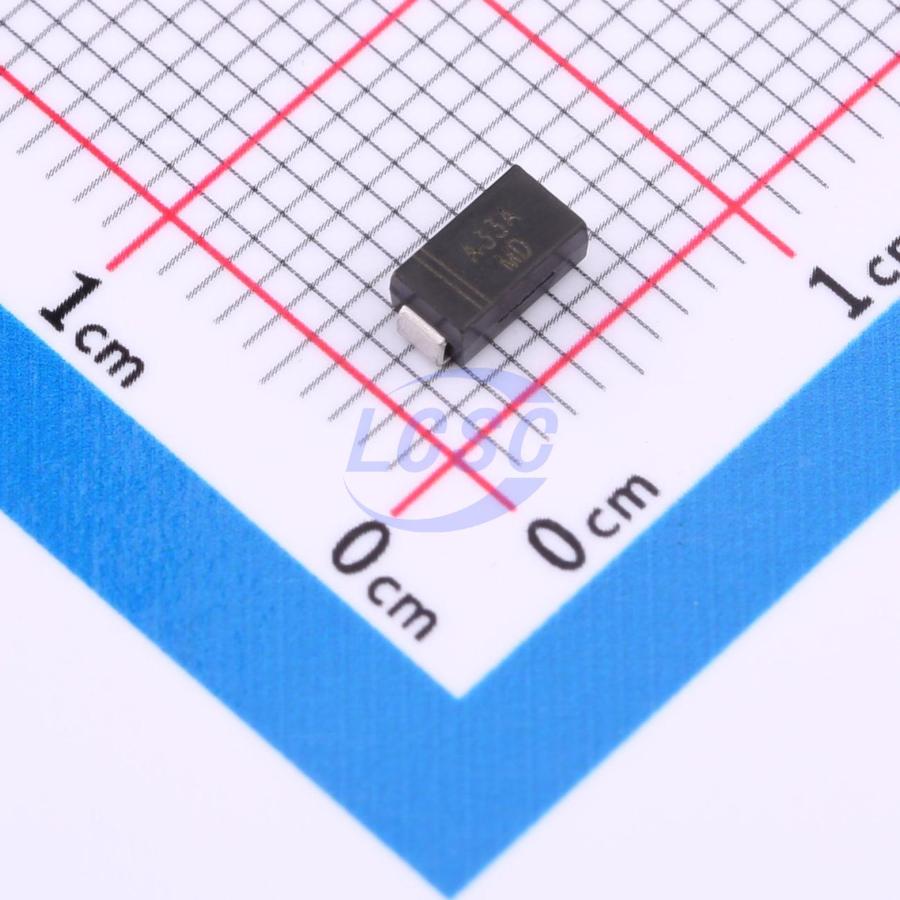

CJSMAJ33A
52.8VC Clamp 7.5A@10/1000us Ipp TVS DIODE SMAG
SMAGROHS CompliantActive
TVS DIODE 33VWM 52.8VC SMAG
- Manufacturer
- JSCJ
- Manufacturer part #
- CJSMAJ33A
- Store part #
- C7499075
- Package / case
- SMAG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,710 in stock
#C7499075
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.64 | ₹66.40 |
| 100+ | ₹5.24 | ₹524.00 |
| 300+ | ₹4.54 | ₹1,362.00 |
| 1,000+ | ₹4.01 | ₹4,010.00 |
| 5,000+ | ₹3.60 | ₹18,000.00 |
| 10,000+ | ₹3.39 | ₹33,900.00 |
10 × ₹6.64
₹66.40
excl. GST
₹78.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJSMAJ33A
₹66.40 for 10 + GST
Specifications
- Clamping Voltage
- 52.8V
- Peak Pulse Current (Ipp)
- 7.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 40.57V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.105 g
Overview
Key features
- PPP 400W
- VRWM 10V - 100V
- Glass passivated chip
