JSCJDatasheet (PDF)

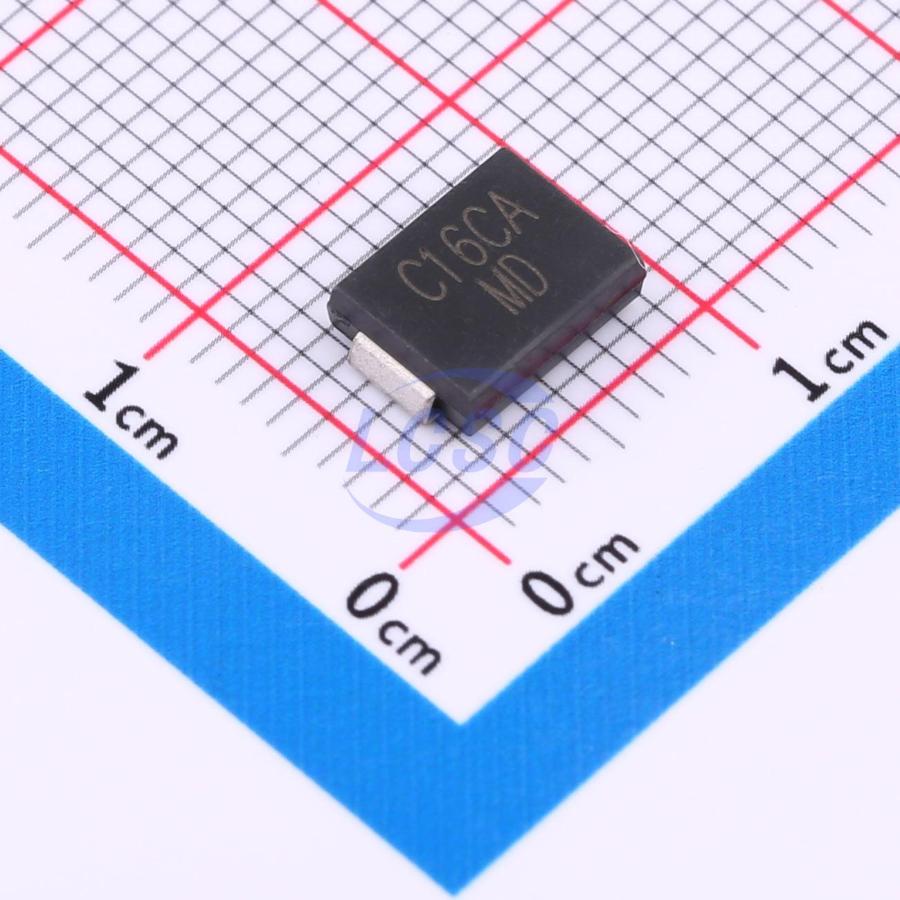

CJSMCJ16CA
25.7VC Clamp 57.7A@10/1000us Ipp TVS DIODE SMCG
SMCGROHS CompliantActive
TVS DIODE 16VWM 25.7VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- CJSMCJ16CA
- Store part #
- C7499226
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C7499226
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.86 | ₹104.30 |
| 50+ | ₹16.15 | ₹807.50 |
| 150+ | ₹14.13 | ₹2,119.50 |
| 500+ | ₹11.62 | ₹5,810.00 |
| 3,000+ | ₹10.49 | ₹31,470.00 |
| 6,000+ | ₹9.82 | ₹58,920.00 |
5 × ₹20.86
₹104.30
excl. GST
₹123.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJSMCJ16CA
₹104.30 for 5 + GST
Specifications
- Clamping Voltage
- 25.7V
- Peak Pulse Current (Ipp)
- 57.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 19.69V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.362 g
Overview
Applications
- Clamping Voltage
Key features
- PPP 1500W VRWM 10V - 100V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1.5SMC18CA#C3036229JSCJ · SMCG | JSCJ | SMCG | 1 | ₹31.29 · 1 in stock | View |
 | CJSMCJ15CA#C7499225JSCJ · SMCG | JSCJ | SMCG | 1,315 | ₹20.64 · 1,315 in stock | View |
 | CJSMCJ17CA#C7499227JSCJ · SMCG | JSCJ | SMCG | 2,855 | ₹16.02 · 2,855 in stock | View |
 | SMCJ15CA#C5294187JSCJ · SMCG | JSCJ | SMCG | 670 | ₹25.26 · 670 in stock | View |
