JSCJDatasheet (PDF)

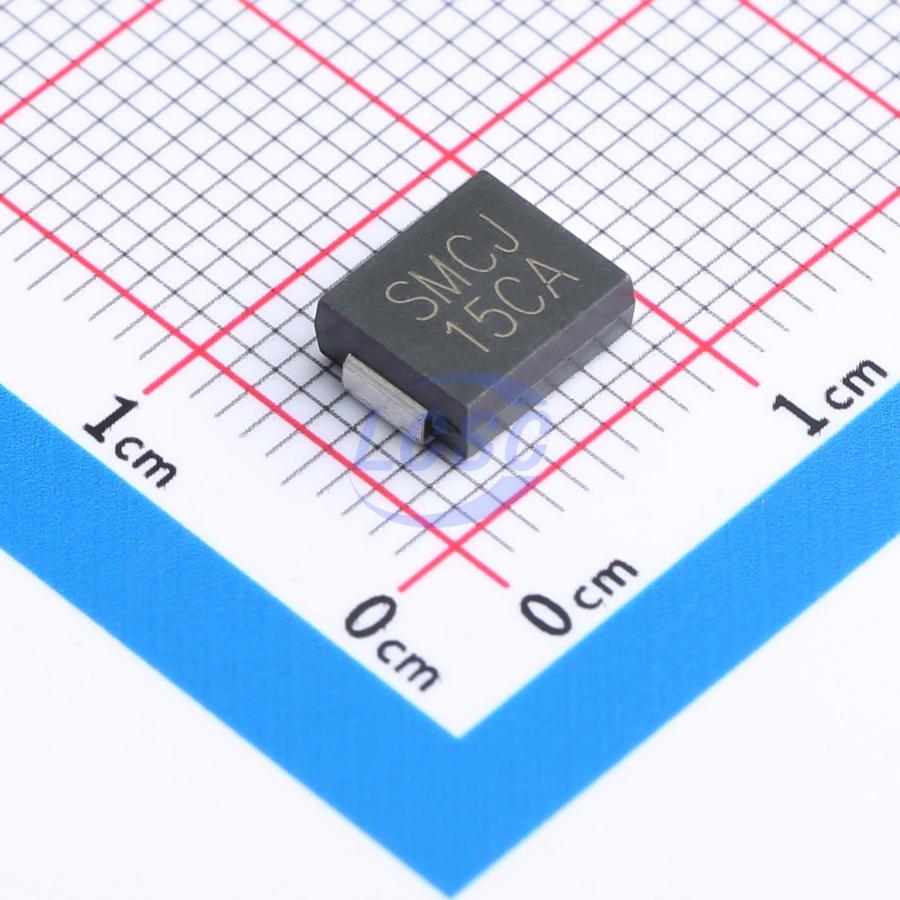

SMCJ15CA
24.4VC Clamp 61.5A Ipp TVS DIODE SMCG
SMCGROHS CompliantActive
TVS DIODE 15VWM 24.4VC SMCG
- Manufacturer
- JSCJ
- Manufacturer part #
- SMCJ15CA
- Store part #
- C5294187
- Package / case
- SMCG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
670 in stock
#C5294187
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.26 | ₹126.30 |
| 50+ | ₹19.96 | ₹998.00 |
| 150+ | ₹17.70 | ₹2,655.00 |
| 500+ | ₹14.87 | ₹7,435.00 |
| 3,000+ | ₹13.61 | ₹40,830.00 |
| 6,000+ | ₹12.86 | ₹77,160.00 |
5 × ₹25.26
₹126.30
excl. GST
₹149.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMCJ15CA
₹126.30 for 5 + GST
Specifications
- Clamping Voltage
- 24.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 61.5A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 16.7V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.387 g
Overview
Applications
- Clamping Voltage
Key features
- 1500W VRWM 5.0V - 440V
- Glass passivated chip
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJSMCJ15CA#C7499225JSCJ · SMCG | JSCJ | SMCG | 1,315 | ₹20.64 · 1,315 in stock | View |
 | CJSMCJ14CA#C7499224JSCJ · SMCG | JSCJ | SMCG | 2,950 | ₹27.54 · 2,950 in stock | View |
 | 1.5SMC18CA#C3036229JSCJ · SMCG | JSCJ | SMCG | 1 | ₹31.29 · 1 in stock | View |
 | CJSMCJ16CA#C7499226JSCJ · SMCG | JSCJ | SMCG | 1,980 | ₹20.86 · 1,980 in stock | View |
