JSCJDatasheet (PDF)

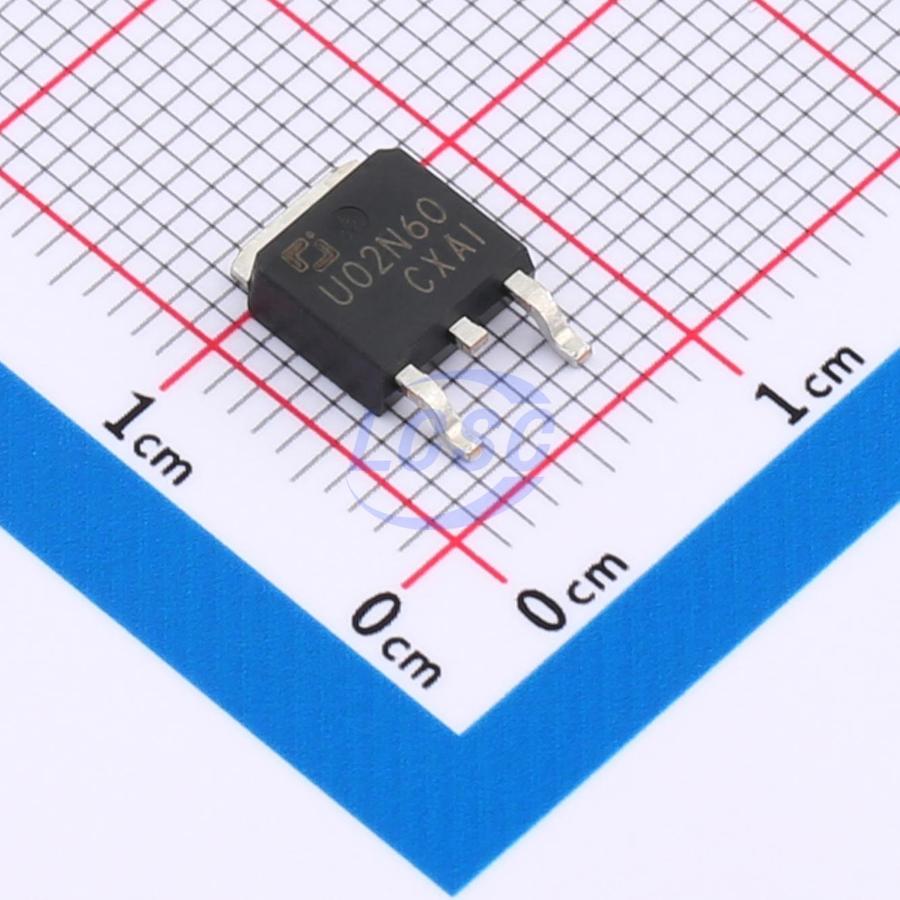

CJU02N60
N-Channel 600V 2A Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 600V 2A TO-252-2L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJU02N60
- Store part #
- C19268976
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
715 in stock
#C19268976
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.71 | ₹108.55 |
| 50+ | ₹16.86 | ₹843.00 |
| 150+ | ₹14.76 | ₹2,214.00 |
| 500+ | ₹12.16 | ₹6,080.00 |
| 2,500+ | ₹11.01 | ₹27,525.00 |
| 5,000+ | ₹10.31 | ₹51,550.00 |
5 × ₹21.71
₹108.55
excl. GST
₹128.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJU02N60
₹108.55 for 5 + GST
Specifications
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 56pF
- Current - Continuous Drain(Id)
- 2A
- Ciss-Input Capacitance
- 435pF
- Reverse Transfer Capacitance (Crss)
- 9.2pF
- RDS(on)
- 4.4Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.442 g
Overview
The CJU02N60 is an N-channel mode power MOSFET using advanced technology to provide costomers with planar stripe. This technology specializes in allowing a minimum on-state resistance and superior switching performance. It also can withstand high energy pulse in the avalanche and commutation mode. The CJU02N60 is universally applied in high efficiency switch mode power supply.
Applications
- Power switching application
- DC/DC converters
Key features
- Excellent package for good heat dissipation
- High switching speed 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJU02N60M1#C19943719JSCJ · TO-252-2L | JSCJ | TO-252-2L | 1,000 | ₹24.99 · 1,000 in stock | View |
 | CJU04N65#C2910353JSCJ · TO-252-2L | JSCJ | TO-252-2L | 10 | ₹37.56 · 10 in stock | View |
