JSCJDatasheet (PDF)

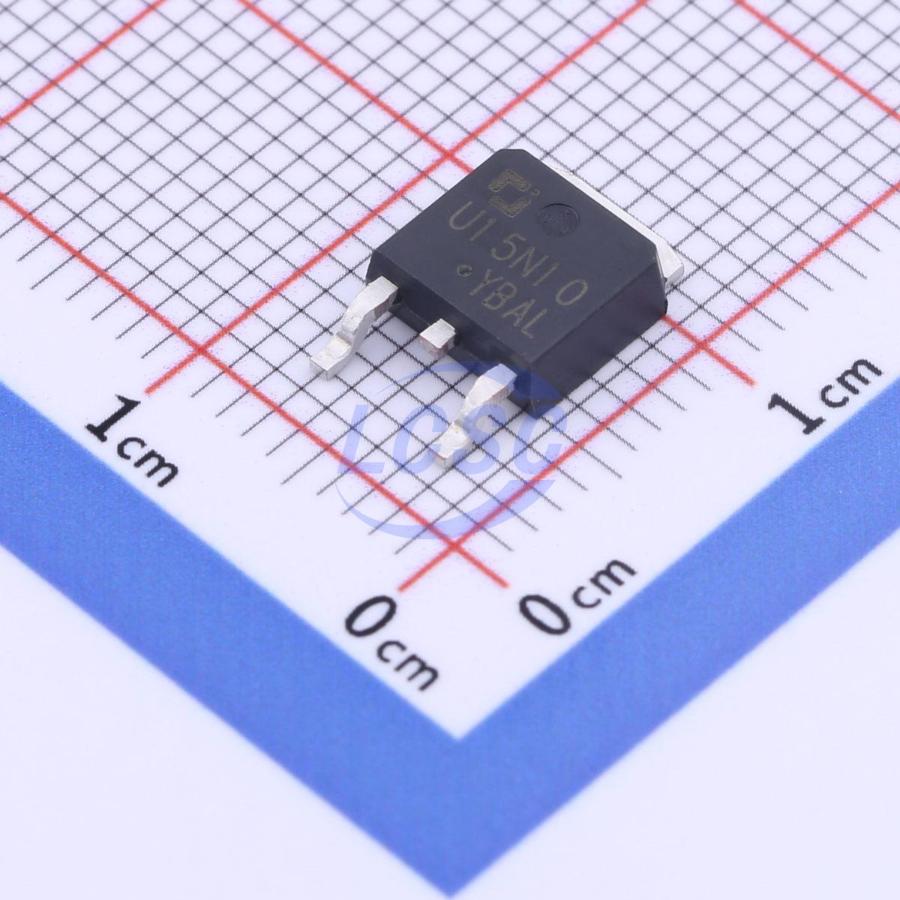

CJU15N10
N-Channel 100V 15A 45W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 100V 15A TO-252-2L
- Manufacturer
- JSCJ
- Manufacturer part #
- CJU15N10
- Store part #
- C2910347
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C2910347
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.84 | ₹139.20 |
| 50+ | ₹22.29 | ₹1,114.50 |
| 150+ | ₹19.91 | ₹2,986.50 |
| 500+ | ₹16.95 | ₹8,475.00 |
| 2,500+ | ₹15.62 | ₹39,050.00 |
| 5,000+ | ₹14.83 | ₹74,150.00 |
5 × ₹27.84
₹139.20
excl. GST
₹164.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJU15N10
₹139.20 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 92pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 100mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.47 g
Overview
The CJU15N10 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications
Applications
- Power switching application
Key features
- Excellent package for good heat dissipation
- Ultra low gate charge
- Low reverse transfer capacitance
- Fast switching capability Avalanche energy specified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJU15SN10#C19269034JSCJ · TO-252-2L | JSCJ | TO-252-2L | 925 | ₹22.99 · 925 in stock | View |
 | CJU65SN10L#C5116362JSCJ · TO-252-2L | JSCJ | TO-252-2L | On request | ₹60.06 · 0 in stock | View |
 | CJU80SN10#C3031923JSCJ · TO-252-2L | JSCJ | TO-252-2L | 3,878 | ₹58.98 · 3,878 in stock | View |
 | CJU50SN10#C5173759JSCJ · TO-252-2L | JSCJ | TO-252-2L | 950 | ₹59.88 · 950 in stock | View |
 | CJU30N10#C3031908JSCJ · TO-252-2L | JSCJ | TO-252-2L | On request | ₹59.07 · 0 in stock | View |
