JSCJDatasheet (PDF)

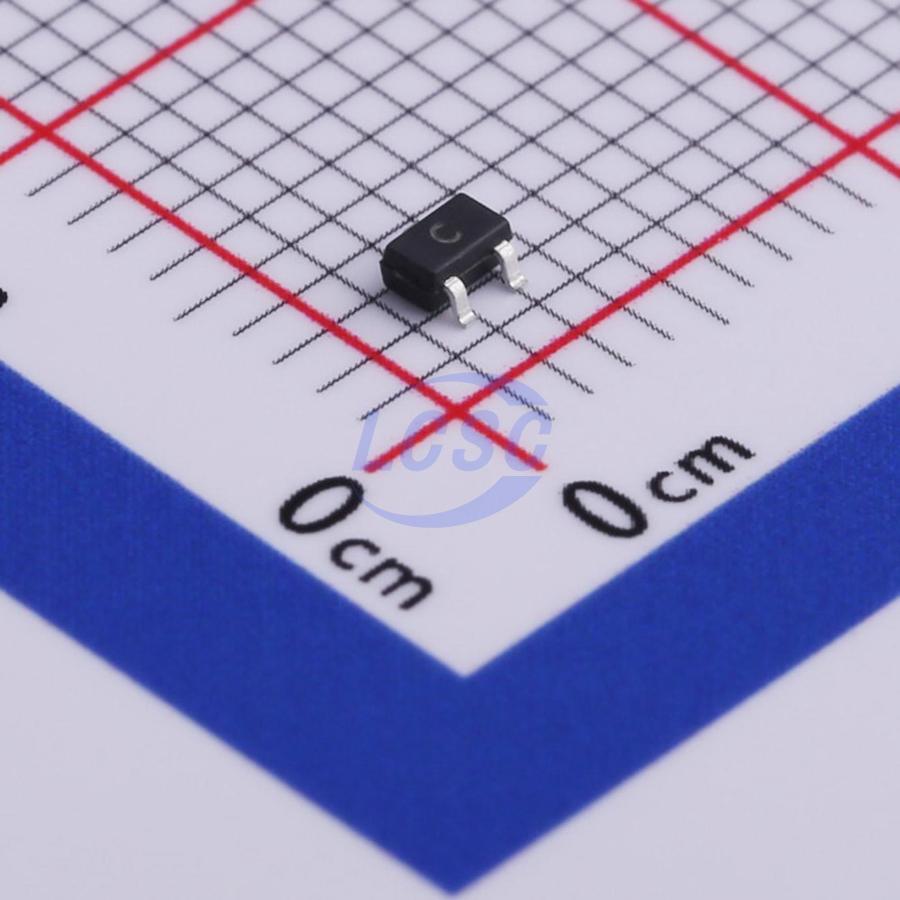

CJW1012
N-Channel 20V 500mA 275mW Surface Mount SOT-323
SOT-323ROHS CompliantActive
MOSFET N-CH 20V 500mA SOT-323
- Manufacturer
- JSCJ
- Manufacturer part #
- CJW1012
- Store part #
- C504138
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C504138
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.27 | ₹527.00 |
| 300+ | ₹4.70 | ₹1,410.00 |
| 3,000+ | ₹4.26 | ₹12,780.00 |
| 6,000+ | ₹3.92 | ₹23,520.00 |
| 9,000+ | ₹3.74 | ₹33,660.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJW1012
₹64.20 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 16pF
- Ciss-Input Capacitance
- 100pF
- Pd - Power Dissipation
- 275mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 500mA
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 700mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 750pC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
This Single N-Channel MOSFET has been designed using advanced Power Trench process to optimize the RDS(ON).
Applications
- Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories
- Battery Operated Systems
- Power Supply Converter Circuits
- Load/Power Switching
- Cell Phones, Pagers
Key features
- High-Side Switching
- Low On-Resistance
- Low Threshold
- Fast Switching Speed
- ESD protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ3134KW-HAF#C2961237JSCJ · SOT-323-3 | JSCJ | SOT-323-3 | 660 | ₹5.70 · 660 in stock | View |
 | CJ3134KW#C110101JSCJ · SOT-323 | JSCJ | SOT-323 | 11,800 | ₹4.71 · 11,800 in stock | View |
 | CJ2102A#C19267744JSCJ · SOT-323 | JSCJ | SOT-323 | 9,530 | ₹8.63 · 9,530 in stock | View |
 | CJ3144KW#C504055JSCJ · SOT-323 | JSCJ | SOT-323 | 2,900 | ₹7.82 · 2,900 in stock | View |
