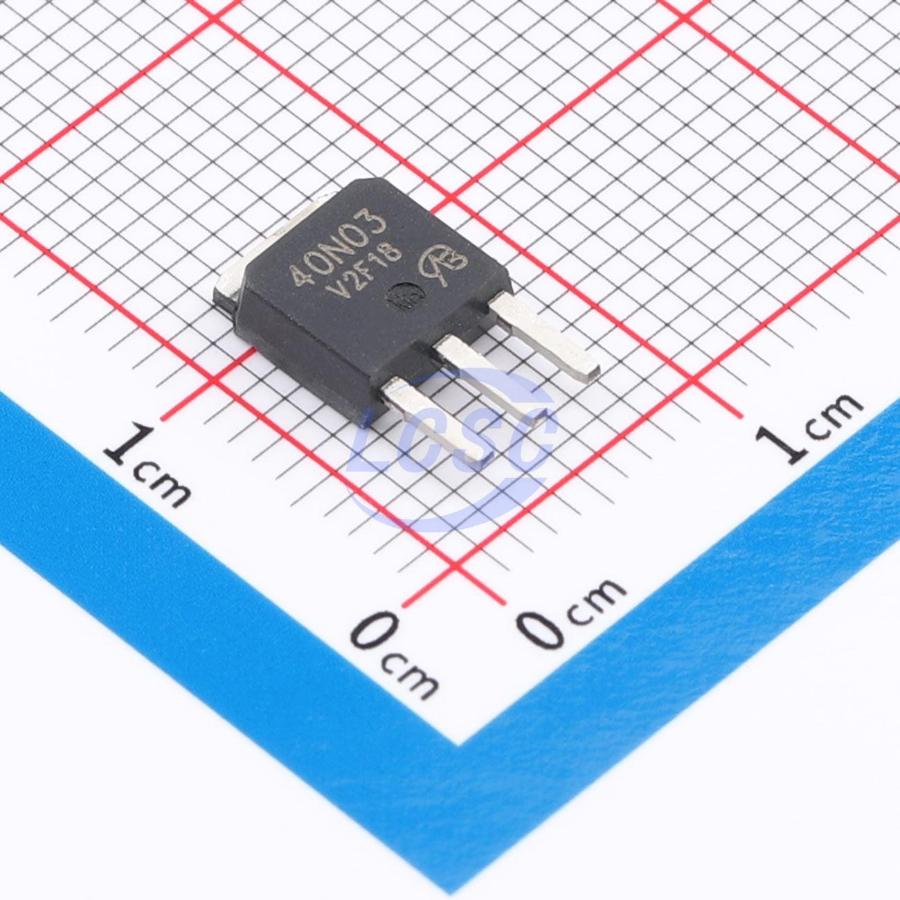

CMU40N03-VB
N-Channel 30V 14A 18W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 30V 14A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CMU40N03-VB
- Store part #
- C5137378
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5137378
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.99 | ₹53.99 |
| 10+ | ₹43.06 | ₹430.60 |
| 30+ | ₹38.45 | ₹1,153.50 |
| 80+ | ₹31.30 | ₹2,504.00 |
| 480+ | ₹28.79 | ₹13,819.20 |
| 800+ | ₹27.11 | ₹21,688.00 |
1 × ₹53.99
₹53.99
excl. GST
₹63.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
CMU40N03-VB
₹53.99 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 14A
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 18W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.13 g
Overview
Applications
- DC-DC conversion
- System power supply
Key features
- Halogen-free
- 3rd generation trench power MOSFET
- 100% Rg tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUU50N03-12P-VB#C20417624VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 20 | ₹52.93 · 20 in stock | View |
 | AP73T03GJ-HF-VB#C41370035VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 10 | ₹53.95 · 10 in stock | View |
 | VBZFB40N03#C700673VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 84 | ₹50.30 · 84 in stock | View |
 | STN484D.-VB#C29779470VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 4 | ₹50.84 · 4 in stock | View |
 | 20N3LG TO251-VB#C878771VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 14 | ₹52.79 · 14 in stock | View |
