CN3125

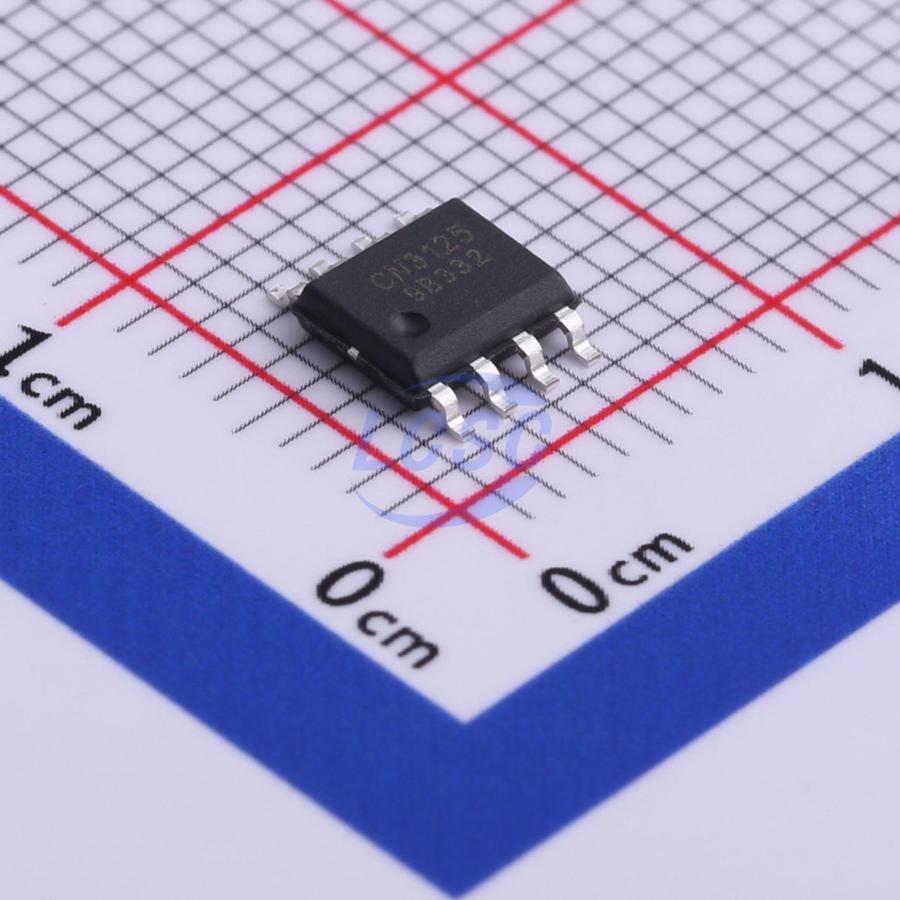

Supercapacitor 1.5A ESOP-8 Battery Management
Linear SuperCapacitor Charger IC With Cell Balancing
- Manufacturer
- CONSONANCE
- Manufacturer part #
- CN3125
- Store part #
- C559037
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,060 in stock
#C559037
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.05 | ₹225.25 |
| 50+ | ₹35.54 | ₹1,777.00 |
| 150+ | ₹31.46 | ₹4,719.00 |
| 500+ | ₹25.82 | ₹12,910.00 |
| 2,500+ | ₹23.56 | ₹58,900.00 |
| 4,000+ | ₹22.20 | ₹88,800.00 |
5 × ₹45.05
₹225.25
excl. GST
₹265.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CN3125
₹225.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5uA
- Operating Voltage
- 2.7V~6V
- Type of Battery
- Supercapacitor
- Features
- Constant current charging;Constant voltage charging;Programmable charging current;Cell balancing;Overcurrent Protection;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC;Balancing IC
- Balance Current
- 55mA
- Charge Current - Max
- 1.5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.111 g
Overview
The CN3125 is a complete constant-current /constant voltage linear charger IC to charge single cell or 2-cell superCapacitors from a power supply of 2.7V to 6V. The device contains an on-chip power MOSFET and eliminates the need for the external sense resistor and blocking diode. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The regulation voltage is externally set by a resistor divider. The charge current can be set externally with a single resistor. An internal active balancing circuit maintains equal voltages across each supercapacitor. When the input supply is removed, the CN3125 automatically enters a low power sleep mode, dropping the supercapacitor current to less than 3uA. Other features include chip enable, undervoltage lockout and supercapacitor power good indicator. The CN3125 is available in a thermally enhanced 8-pin SOP package.
Applications
- Electric Meter
- SuperCap Backup Circuit
- PC Card, USB Modems Portable Equipments
Key features
- Operating Voltage Range: 2.7V to 6V
- On-chip Power MOSFET
- No external Blocking Diode or Current Sense Resistors Required Constant Voltage is set by External Resistors
- Charge Current is set by an external resistor
- Continuous Charge Current Up to 1.5A Automatic Cell Balancing to Prevent Suercapacitors Overvoltage During Charging Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
- Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed
- Indication for Supercapacitor Power Good
- Chip Enable
- Available in eSOP8 Package
- Pb-free, rohs-Compliant and Halogen Free
