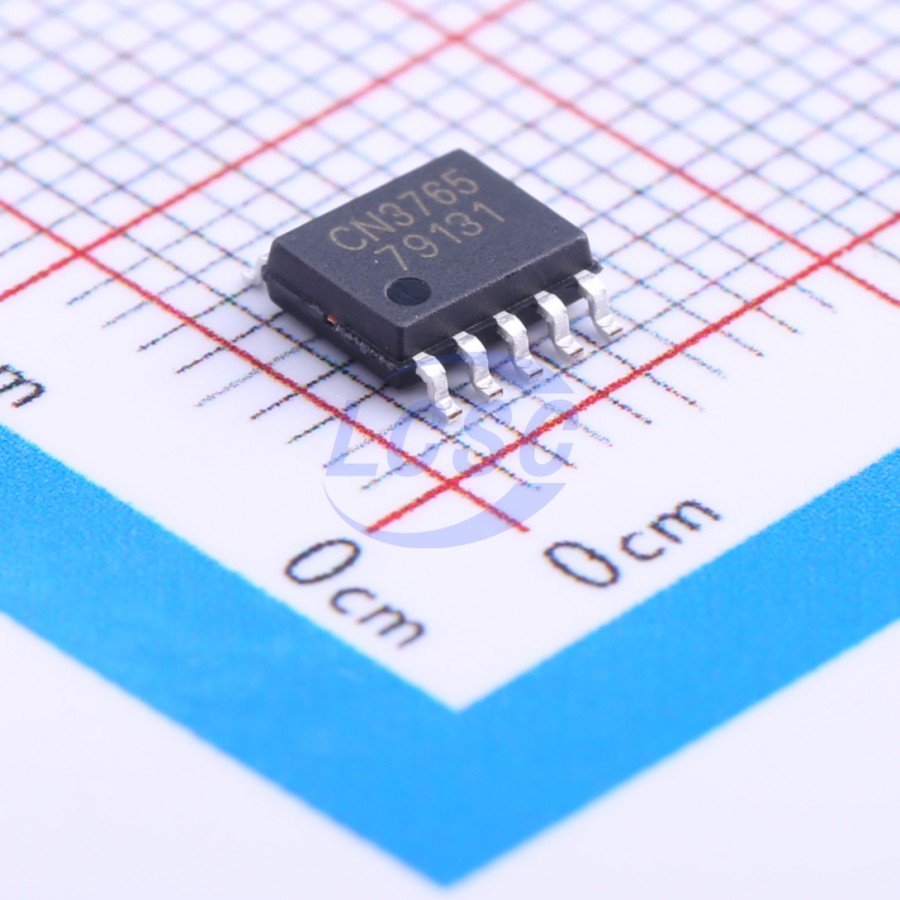

CN3765
Battery Charging IC Lithium Battery LiFePO4 Battery SSOP-10-150mil
4A multi-type battery charging management integrated circuit
- Manufacturer
- CONSONANCE
- Manufacturer part #
- CN3765
- Store part #
- C162329
- Package / case
- SSOP-10-150mil
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,065 in stock
#C162329
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.93 | ₹76.93 |
| 10+ | ₹59.76 | ₹597.60 |
| 30+ | ₹52.15 | ₹1,564.50 |
| 100+ | ₹43.04 | ₹4,304.00 |
| 500+ | ₹38.47 | ₹19,235.00 |
| 1,000+ | ₹36.08 | ₹36,080.00 |
1 × ₹76.93
₹76.93
excl. GST
₹90.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CN3765
₹76.93 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 10uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery;LiFePO4 Battery
- Operating Voltage
- 6.6V~30V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 4A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.179 g
Overview
CN3765 is a PWM buck-mode multi-chemistry battery charge management IC that independently manages charging for multiple battery types. It features a compact package, minimal external components, and ease of use. CN3765 supports trickle, constant current, and constant voltage charging modes, making it suitable for lithium-ion, LiFePO₄, and lithium titanate battery charge management. In constant voltage mode, CN3765 regulates the battery voltage to the level set by external feedback resistors; in constant current mode, the charge current is set via an external resistor.
Applications
- Handheld devices
- Backup battery applications
- Portable industrial and medical instruments
- Power tools
- Li-ion, LiFePO₄, and Li₄Ti₅O₁₂ battery charging
Key features
- Complete charge management for single-cell, multi-cell lithium-ion, LiFePO4, or lithium titanate batteries
- Wide input voltage range: 6.6V to 30V
- Can be used as a constant voltage source when no battery is connected
- Charge current up to 4A
- PWM switching frequency: 310KHz
- Constant voltage charge level set by external resistor
- Constant current charge level set by external resistor
- Trickle charging for deeply discharged batteries
- Automatic recharge function
- Charge status and end-of-charge status indication
- Soft-start function
- Battery terminal overvoltage protection
- Operating temperature range: -40°C to +85°C
- 10-pin SSOP package
- Lead-free, RoHS compliant, halogen-free
