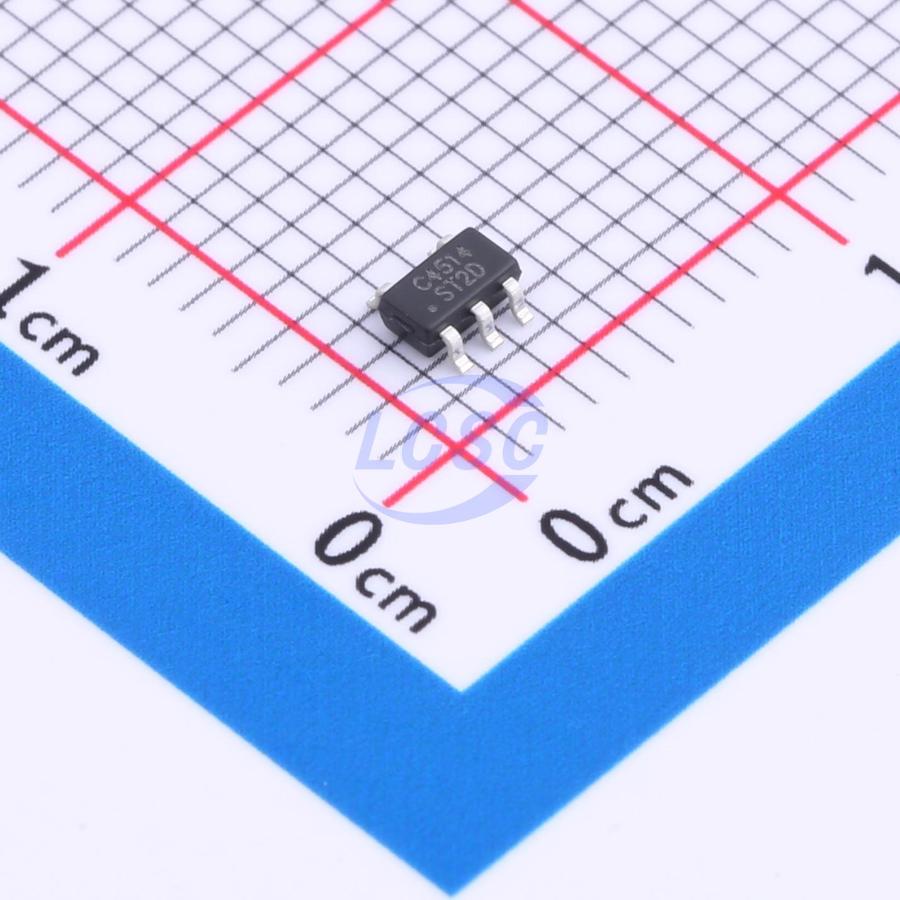

COS4514TR

The COS4561 is a single- pole/double- throw (SPDT) CMOS analog switch. The COS4514 and COS4515 are single pole / single throw (SPST) CMOS analog switches. They have very low switch ON- state resistance. The COS4514 is normally open (NO). The COS4515 is normally closed (NC). These CMOS switches can operate continuously with a single supply between 3V and 16V. Each switch can handle rail- to- rail analog signals. The OFF/ON- Leakage current maximum is only 1nA at 25℃ or 10nA at 85℃. The digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS logic compatibility when using a +5V supply.

Applications

• Power routing applications
• Audio and video signal switching
• Precision automatic test equipment
• Relay replacement
• Automotive applications
• Sample and hold systems
• Telecom signal switching
• Battery power systems

Key features

• 3V to 16V Single-Supply Operation
• Low ON-State Resistance:
• 2.8Ω with 16V Supply
• 3.6Ω with 12V Supply
• 11Ω with 5V Supply
• Low Leakage Currents
• 1 nA Off-Leakage at 25°C
• 1 nA On-Leakage at 25°C
• Fast Switching Speed tON = 70ns, tOFF = 50ns (12V Supply)
• Break-Before-Make Operation
• Rail-to-Rail Operation
• TTL/CMOS Logic Compatible
• Small Packaging: SOT23-6 (COS4561) SOT23-5 (COS4514/4515)
