VBsemi ElecDatasheet (PDF)

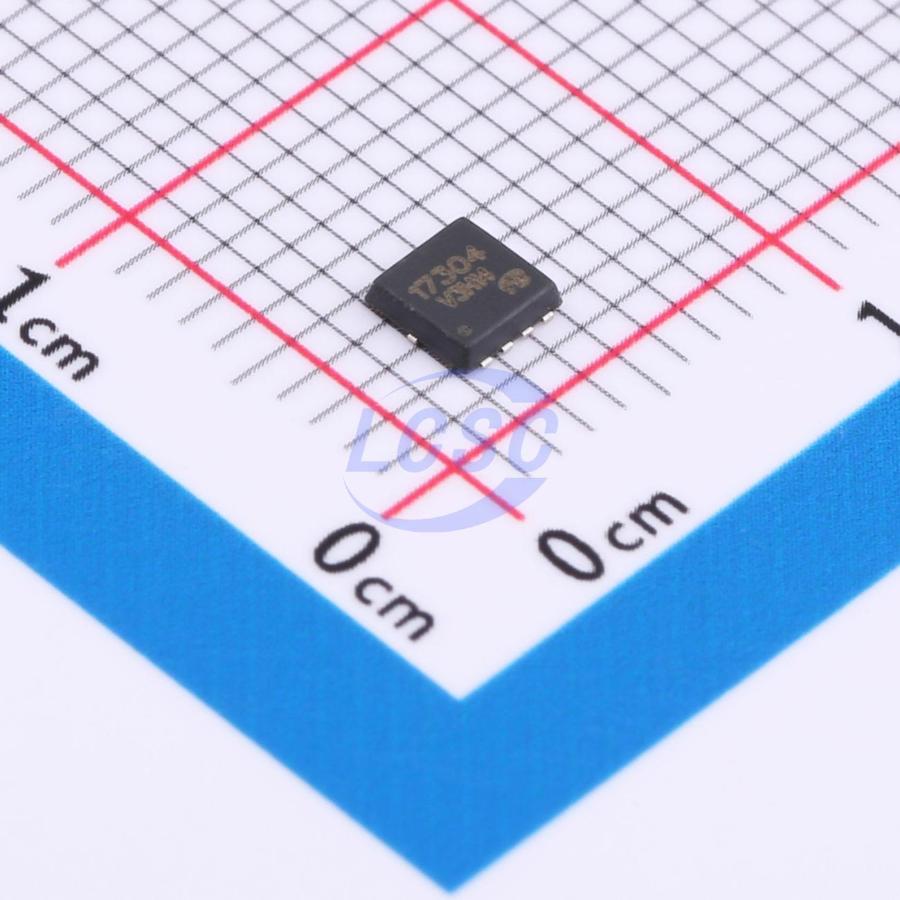

CSD17304Q3-VB
N-Channel 30V 60A 52W Surface Mount DFN3x3-8
DFN3x3-8ROHS CompliantActive
MOSFET N-CH 30V 60A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CSD17304Q3-VB
- Store part #
- C7569119
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C7569119
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.22 | ₹94.22 |
| 10+ | ₹77.65 | ₹776.50 |
| 30+ | ₹69.47 | ₹2,084.10 |
| 100+ | ₹61.28 | ₹6,128.00 |
| 500+ | ₹46.91 | ₹23,455.00 |
| 1,000+ | ₹44.32 | ₹44,320.00 |
1 × ₹94.22
₹94.22
excl. GST
₹111.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CSD17304Q3-VB
₹94.22 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 406pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 6nF
- Pd - Power Dissipation
- 52W
- Reverse Transfer Capacitance (Crss)
- 360pF
- RDS(on)
- 3.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.195 g
Overview
Applications
- OR gate application - server
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PXN4R7-30QLJ-VB#C52148626VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹102.55 · 10 in stock | View | |
 | CSD17309Q3-VB#C20755349VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹102.57 · 10 in stock | View |
 | VBQF1303#C481054VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 8 | ₹129.19 · 8 in stock | View |
 | FDMC3020DC-VB#C19711239VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹89.06 · 10 in stock | View |
 | NTTFS4939NTAG-VB#C29779162VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 20 | ₹92.48 · 20 in stock | View |
