TIDatasheet (PDF)

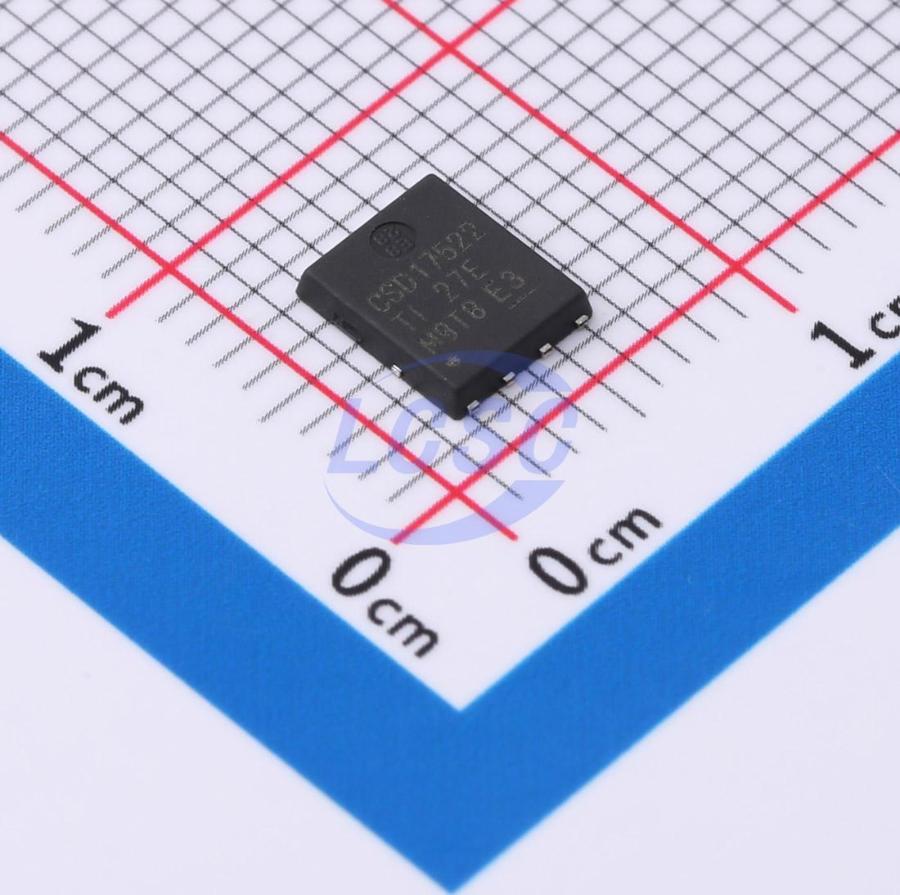

CSD17522Q5A
N-Channel 30V 87A 3W Surface Mount VSONP-8(5x6)
VSONP-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 30V 87A VSONP-8(5x6)
- Manufacturer
- TI
- Manufacturer part #
- CSD17522Q5A
- Store part #
- C2868567
- Package / case
- VSONP-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C2868567
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.31 | ₹114.31 |
| 10+ | ₹98.22 | ₹982.20 |
| 30+ | ₹86.72 | ₹2,601.60 |
| 100+ | ₹77.12 | ₹7,712.00 |
| 500+ | ₹74.18 | ₹37,090.00 |
| 1,000+ | ₹72.51 | ₹72,510.00 |
1 × ₹114.31
₹114.31
excl. GST
₹134.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD17522Q5A
₹114.31 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 470pF
- Ciss-Input Capacitance
- 695pF
- Pd - Power Dissipation
- 3W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 87A
- Reverse Transfer Capacitance (Crss)
- 44pF
- RDS(on)
- 10mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.6nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
This power MOSFET is designed to minimize losses in power conversion applications and is optimized for 5V gate drive applications.
Applications
- Notebook load point
- Synchronous buck load point in networking, telecom, and computing systems
Key features
- Optimized for 5V gate drive
- Ultra-low Qg and Qgd
- Low thermal resistance
- Avalanche rated
- Lead-free terminal plating, RoHS compliant
- Halogen-free
- SON 5mm × 6mm plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CSD17322Q5A#C2876532TI · VSONP-8(5x6) | TI | VSONP-8(5x6) | 4 | ₹444.54 · 4 in stock | View | |
 | HSBA3058#C701047HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 825 | ₹24.77 · 825 in stock | View |
 | CSD17302Q5A#C553151TI · DFN-8(4.9x5.7) | TI | DFN-8(4.9x5.7) | 10 | ₹235.90 · 10 in stock | View |
 | NTMFS3D2N10MDT1G#C5209348onsemi · DFN-5(5x6)(SO-8FL) | onsemi | DFN-5(5x6)(SO-8FL) | 6 | ₹830.74 · 6 in stock | View |
 | IRFH5006TRPBF-VB#C5355691VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 5 | ₹249.33 · 5 in stock | View |
