TIDatasheet (PDF)

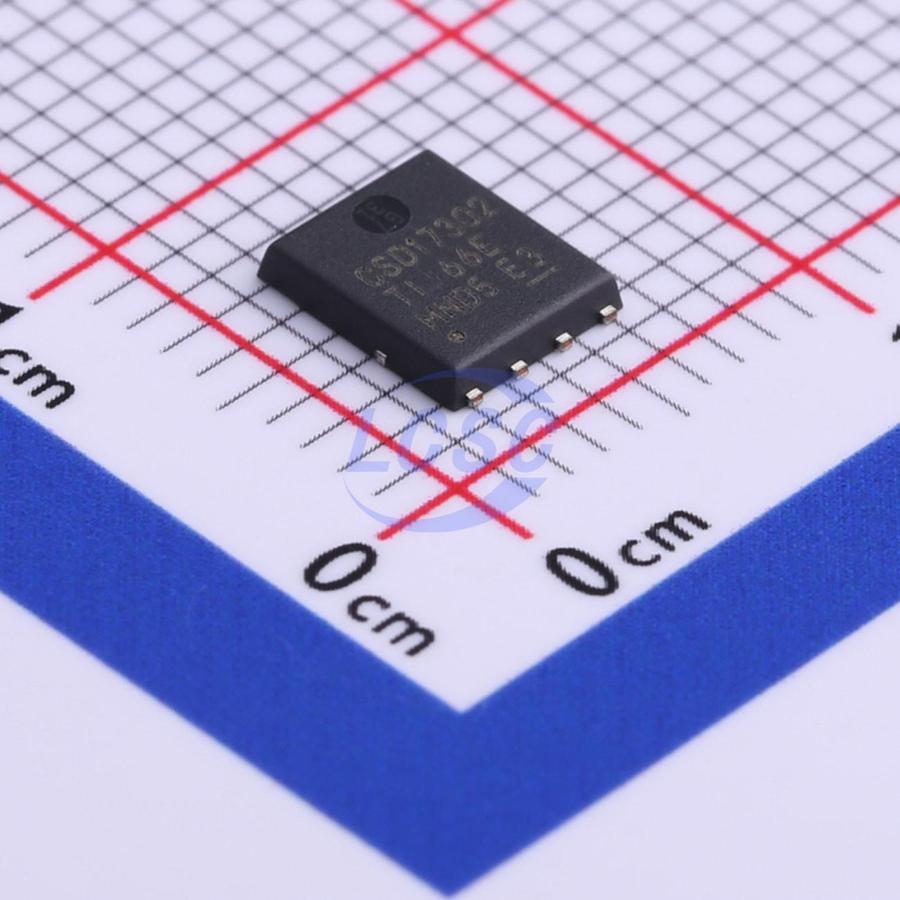

CSD17302Q5A
3W 30V 87A 6.4mΩ@8V 1 N-channel N-Channel DFN-8(4.9x5.7) Single FETs, MOSFETs RoHS
DFN-8(4.9x5.7)ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- CSD17302Q5A
- Store part #
- C553151
- Package / case
- DFN-8(4.9x5.7)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C553151
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹235.90 | ₹235.90 |
| 10+ | ₹232.65 | ₹2,326.50 |
| 30+ | ₹230.48 | ₹6,914.40 |
| 100+ | ₹228.31 | ₹22,831.00 |
1 × ₹235.90
₹235.90
excl. GST
₹278.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD17302Q5A
₹235.90 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 390pF
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 87A
- Reverse Transfer Capacitance (Crss)
- 45pF
- RDS(on)
- 6.4mΩ@8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.4nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
NexFET™ power MOSFETs are designed to minimize losses in power conversion applications and optimized for 5V gate drive applications.
Applications
- Notebook point-of-load — synchronous step-down point-of-load for networking, telecom, and computing systems
Key features
- Optimized for 5V gate drive
- Ultra-low Qg and Qgd
- Low thermal resistance
- Avalanche rated
- Lead-free terminal plating
- RoHS compliant
- Halogen-free
- SON 5mm×6mm plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CSD17322Q5A#C2876532TI · VSONP-8(5x6) | TI | VSONP-8(5x6) | 4 | ₹444.54 · 4 in stock | View | |
 | CSD17522Q5A#C2868567TI · VSONP-8(5x6) | TI | VSONP-8(5x6) | 17 | ₹114.31 · 17 in stock | View |
 | ISC012N04LM6ATMA1#C6883946Infineon · SON-8(5x6) | Infineon | SON-8(5x6) | 77 | ₹149.82 · 77 in stock | View |
 | CSD17506Q5A#C181520TI · TDSON-8(5x6) | TI | TDSON-8(5x6) | 15 | ₹786.50 · 15 in stock | View |
 | CSD18501Q5A#C471047TI · VSONP-8(4.9x6) | TI | VSONP-8(4.9x6) | 117 | ₹410.75 · 117 in stock | View |
