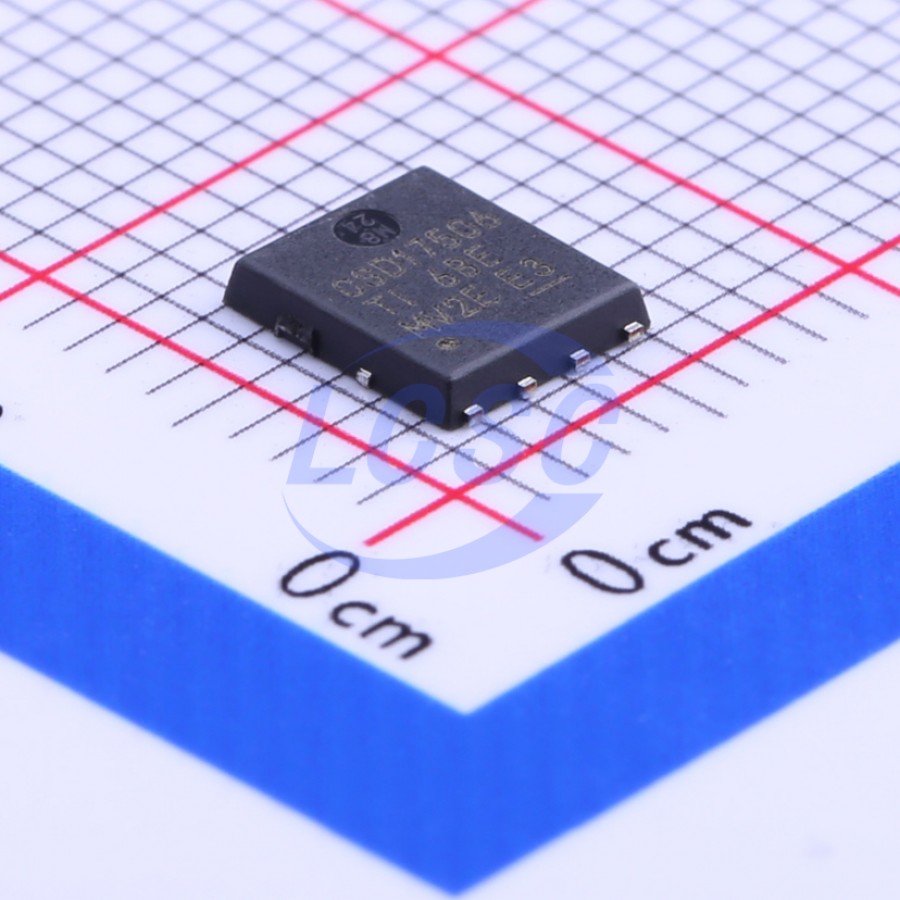

CSD17506Q5A
N-Channel 30V 100A 3.2W Surface Mount TDSON-8(5x6)
TDSON-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 30V 100A TDSON-8(5x6)
- Manufacturer
- TI
- Manufacturer part #
- CSD17506Q5A
- Store part #
- C181520
- Package / case
- TDSON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C181520
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹786.50 | ₹786.50 |
| 10+ | ₹678.42 | ₹6,784.20 |
| 30+ | ₹614.07 | ₹18,422.10 |
| 100+ | ₹549.05 | ₹54,905.00 |
| 500+ | ₹519.26 | ₹2,59,630.00 |
| 1,000+ | ₹505.78 | ₹5,05,780.00 |
1 × ₹786.50
₹786.50
excl. GST
₹928.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD17506Q5A
₹786.50 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.12nF
- Ciss-Input Capacitance
- 1.65nF
- Pd - Power Dissipation
- 3.2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 65pF
- RDS(on)
- 5.3mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.166 g
Overview
The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
Applications
- Point-of-Load Synchronous Buck in Networking, Telecom, and Computing Systems
- Synchronous or Control FET Applications
Key features
- Ultralow Qg and Qgd
- Low Thermal Resistance
- Avalanche Rated
- Pb Free Terminal Plating
- RoHS Compliant
- Halogen Free
- SON 5-mm×6-mm Plastic Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP30N04NK#C41354865Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 300 | ₹13.23 · 300 in stock | View |
 | FTF065N10G#C55115161ARK micro · PDFN-8(5x6) | ARK micro | PDFN-8(5x6) | 184 | ₹86.95 · 184 in stock | View |
 | CSD18509Q5B#C553147TI · VSON-CLIP-8(6x5) | TI | VSON-CLIP-8(6x5) | 48 | ₹231.21 · 48 in stock | View |
 | NTMFS3D2N10MDT1G#C5209348onsemi · DFN-5(5x6)(SO-8FL) | onsemi | DFN-5(5x6)(SO-8FL) | 6 | ₹830.74 · 6 in stock | View |
 | CSD18501Q5A#C471047TI · VSONP-8(4.9x6) | TI | VSONP-8(4.9x6) | 117 | ₹410.75 · 117 in stock | View |
