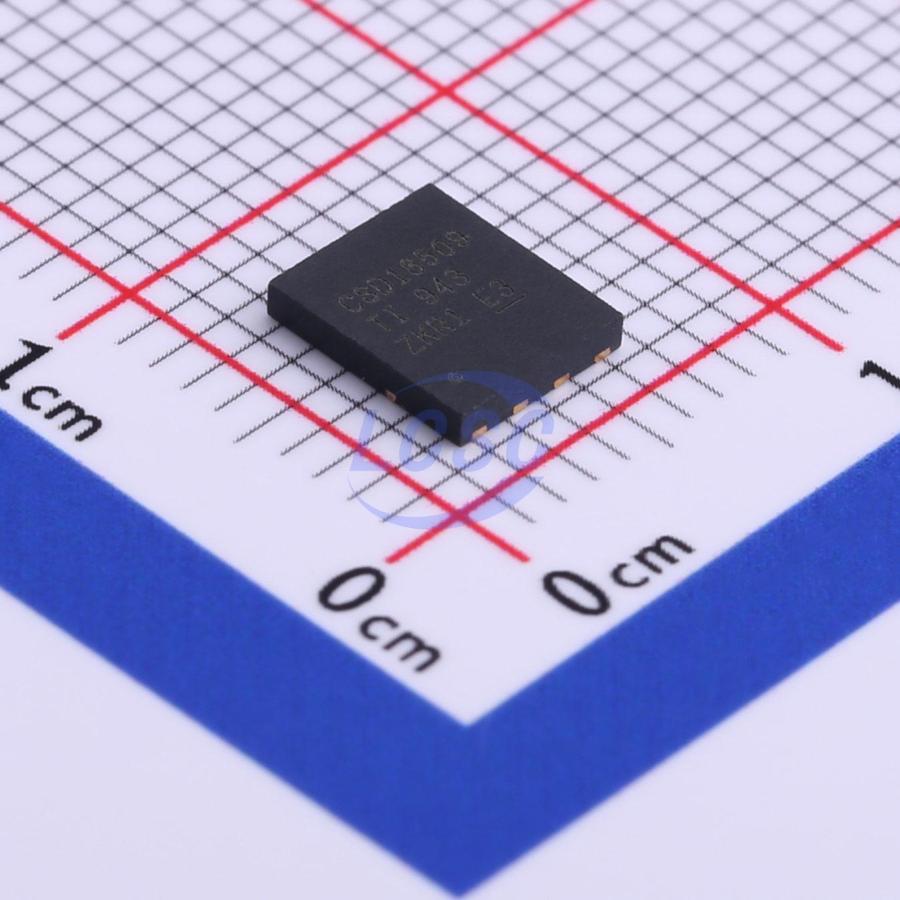

CSD18509Q5B
N-Channel 40V 100A 3.1W Surface Mount VSON-CLIP-8(6x5)
VSON-CLIP-8(6x5)ROHS3 CompliantActive
MOSFET N-CH 40V 100A VSON-CLIP-8(6x5)
- Manufacturer
- TI
- Manufacturer part #
- CSD18509Q5B
- Store part #
- C553147
- Package / case
- VSON-CLIP-8(6x5)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C553147
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹231.21 | ₹231.21 |
| 10+ | ₹198.19 | ₹1,981.90 |
| 30+ | ₹177.32 | ₹5,319.60 |
| 100+ | ₹136.90 | ₹13,690.00 |
| 500+ | ₹127.34 | ₹63,670.00 |
| 1,000+ | ₹123.21 | ₹1,23,210.00 |
1 × ₹231.21
₹231.21
excl. GST
₹272.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD18509Q5B
₹231.21 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.07nF
- Ciss-Input Capacitance
- 13.9nF
- Pd - Power Dissipation
- 3.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 354pF
- RDS(on)
- 1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 150nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.141 g
Overview
This 40 V, 1 mΩ, SON 5 x 6 NexFET power MOSFET has been designed to minimize losses in power conversion applications.
Applications
- DC-DC Conversion
- Secondary Side Synchronous Rectifier
- Motor Control
Key features
- Ultra-Low On Resistance
- Low Thermal Resistance Avalanche Rated
- Logic Level
- Pb Free Terminal Plating
- RoHS Compliant Halogen Free SON 5-mm×6 -mm Plastic Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD18509Q5BT#C2860055TI · VSON-CLIP-8(6x5) | TI | VSON-CLIP-8(6x5) | 1 | ₹605.70 · 1 in stock | View |
 | CSD18501Q5A#C471047TI · VSONP-8(4.9x6) | TI | VSONP-8(4.9x6) | 117 | ₹410.75 · 117 in stock | View |
 | FDMS8320LDC#C891082onsemi · DualCool-56-8 | onsemi | DualCool-56-8 | 27 | ₹458.46 · 27 in stock | View |
 | AONS77401-JSM#C55106997JSMSEMI · PDFN-8L(5x6) | JSMSEMI | PDFN-8L(5x6) | 1,000 | ₹128.46 · 1,000 in stock | View |
 | QN4103M6N-JSM#C55106998JSMSEMI · PDFN-8L(5x6) | JSMSEMI | PDFN-8L(5x6) | 905 | ₹113.00 · 905 in stock | View |
