TIDatasheet (PDF)

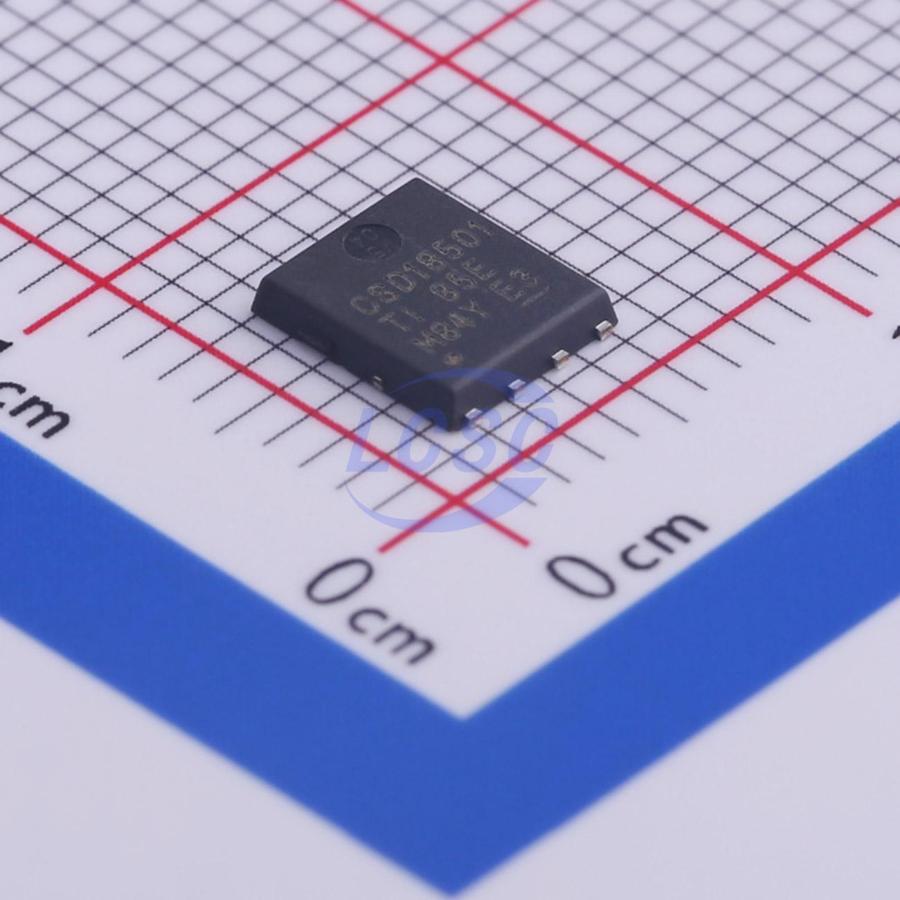

CSD18501Q5A
40V 100A 3.1W 2.5mΩ@10V 1 N-channel N-Channel VSONP-8(4.9x6) Single FETs, MOSFETs RoHS
VSONP-8(4.9x6)ROHS3 CompliantActive
MOSFET N-CH 40V 100A VSONP-8(4.9x6)
- Manufacturer
- TI
- Manufacturer part #
- CSD18501Q5A
- Store part #
- C471047
- Package / case
- VSONP-8(4.9x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
117 in stock
#C471047
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹410.75 | ₹410.75 |
| 10+ | ₹378.14 | ₹3,781.40 |
| 30+ | ₹355.25 | ₹10,657.50 |
| 100+ | ₹334.08 | ₹33,408.00 |
| 500+ | ₹324.58 | ₹1,62,290.00 |
| 1,000+ | ₹320.70 | ₹3,20,700.00 |
1 × ₹410.75
₹410.75
excl. GST
₹484.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD18501Q5A
₹410.75 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 725pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.84nF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 2.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
This 40 V, 2.5 mΩ, SON 5 × 6 mm NexFET power MOSFET is designed to minimize losses in power conversion applications.
Applications
- DC-DC conversion
- Secondary-side synchronous rectifier
- Battery motor control
Key features
- Ultra-low Qg and Qgd
- Low thermal resistance
- Avalanche rated
- Logic level
- Lead-free terminal plating
- RoHS compliant
- Halogen-free
- SON 5 mm × 6 mm plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM4060ND56-1#C7472910TECH PUBLIC · DFN5x6-8L | TECH PUBLIC | DFN5x6-8L | 370 | ₹47.36 · 370 in stock | View |
 | CSD18509Q5B#C553147TI · VSON-CLIP-8(6x5) | TI | VSON-CLIP-8(6x5) | 48 | ₹231.21 · 48 in stock | View |
 | CSD18540Q5B#C86513TI · VSON-8(5x6) | TI | VSON-8(5x6) | On request | ₹305.80 · 0 in stock | View |
 | CSD18532Q5B#C882766TI · SON-8(5x6) | TI | SON-8(5x6) | 2,172 | ₹269.84 · 2,172 in stock | View |
 | CSD18532Q5BT#C2876541TI · SON-8(5x6) | TI | SON-8(5x6) | 148 | ₹372.49 · 148 in stock | View |
