TIDatasheet (PDF)

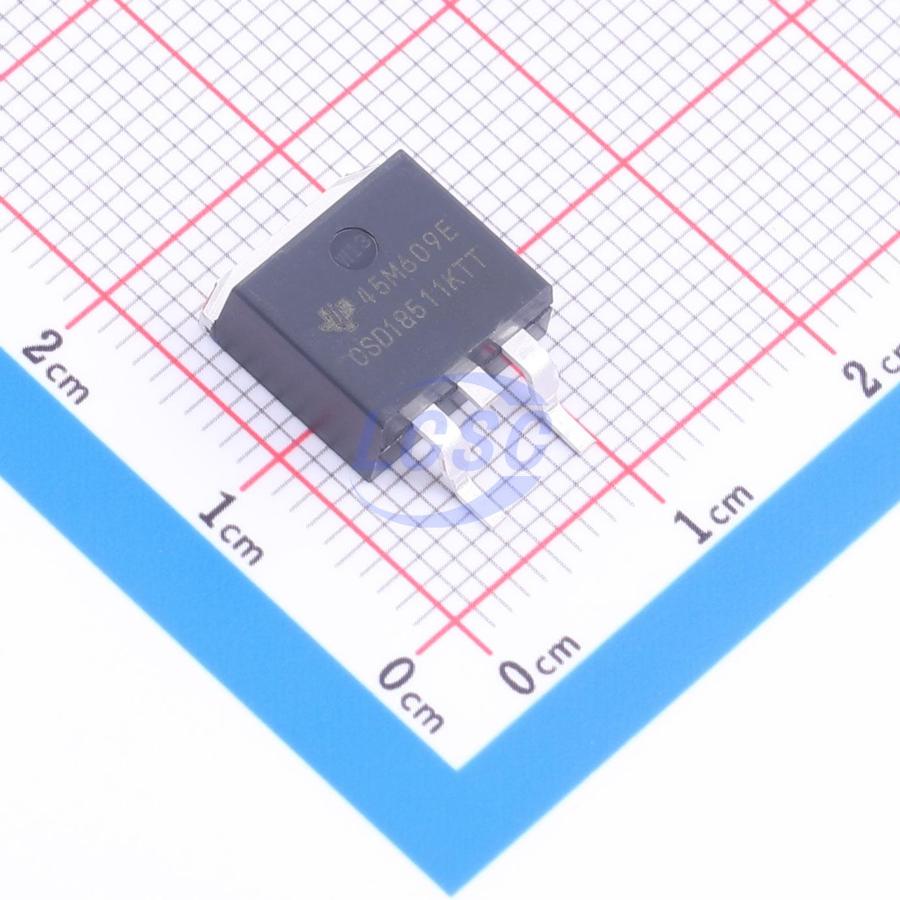

CSD18511KTTT
188W 40V 194A 2.6mΩ@10V 1 N-channel N-Channel TO-263-3 Single FETs, MOSFETs RoHS
TO-263-3ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- CSD18511KTTT
- Store part #
- C2861416
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
118 in stock
#C2861416
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹227.23 | ₹227.23 |
| 10+ | ₹192.75 | ₹1,927.50 |
| 30+ | ₹171.08 | ₹5,132.40 |
| 100+ | ₹148.96 | ₹14,896.00 |
| 500+ | ₹138.77 | ₹69,385.00 |
| 1,000+ | ₹134.43 | ₹1,34,430.00 |
1 × ₹227.23
₹227.23
excl. GST
₹268.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per reel
CSD18511KTTT
₹227.23 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 591pF
- Ciss-Input Capacitance
- 5.94nF
- Pd - Power Dissipation
- 188W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 194A
- Reverse Transfer Capacitance (Crss)
- 306pF
- RDS(on)
- 2.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63.9nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 50 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.78 g
Overview
This 40V, 2.1mΩ NexFET power MOSFET in a D2PAK (TO-263) package is designed to minimize losses in power conversion applications.
Applications
- Secondary-side synchronous rectifier
- Motor control
Key features
- Low Qg and Qgd
- Low RDS(ON)
- Low thermal resistance
- Avalanche rated
- Lead-free terminal plating
- RoHS compliant
- Halogen-free
- D2PAK plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD18535KTTT#C2877331TI · TO-263-3 | TI | TO-263-3 | 1 | ₹495.24 · 1 in stock | View |
 | CSD18542KTT#C2867559TI · TO-263-3 | TI | TO-263-3 | 217 | ₹269.57 · 217 in stock | View |
| CSD18542KTTT#C2877343TI · TO-263-3 | TI | TO-263-3 | 230 | ₹344.75 · 230 in stock | View | |
 | TDM3726#C397044Techcode · TO-263-3 | Techcode | TO-263-3 | 2 | ₹151.34 · 2 in stock | View |
 | CSD18535KTT#C2877333TI · TO-263-3 | TI | TO-263-3 | 2 | ₹279.64 · 2 in stock | View |
