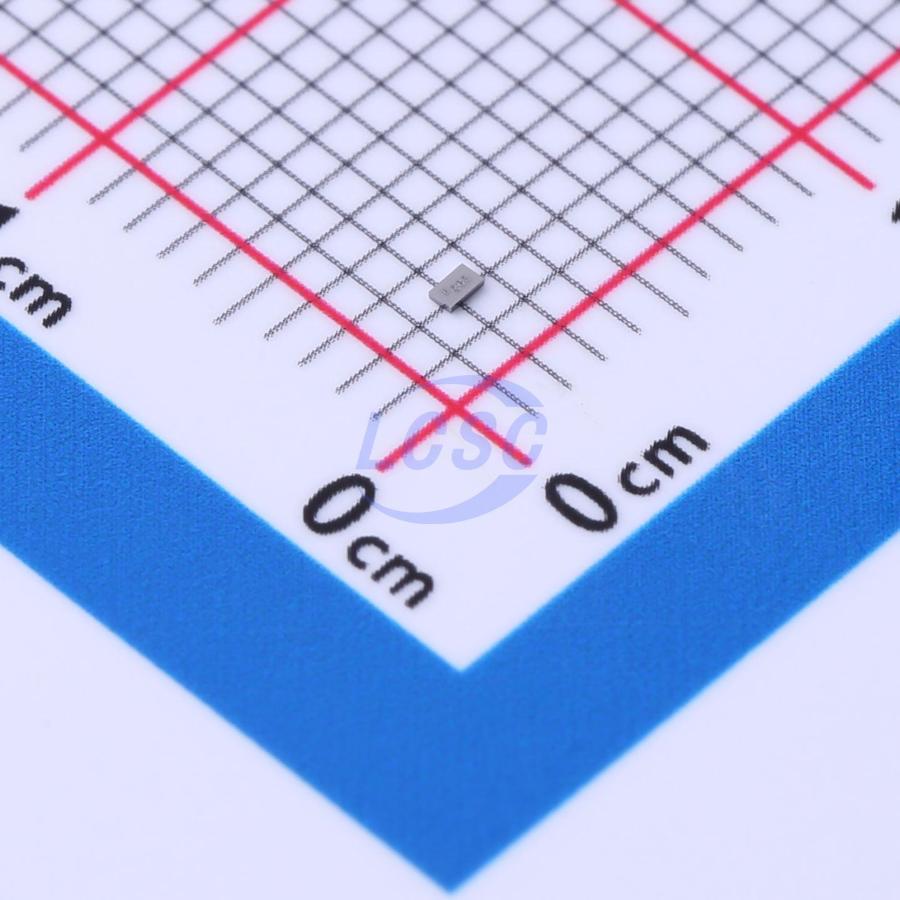

CSD25484F4
P-Channel 20V 2.5A 500mW Surface Mount PICOSTAR-3
PICOSTAR-3ROHS3 CompliantActive
MOSFET P-CH 20V 2.5A PICOSTAR-3
- Manufacturer
- TI
- Manufacturer part #
- CSD25484F4
- Store part #
- C180173
- Package / case
- PICOSTAR-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
335 in stock
#C180173
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.95 | ₹139.75 |
| 50+ | ₹22.91 | ₹1,145.50 |
| 150+ | ₹20.76 | ₹3,114.00 |
| 500+ | ₹18.06 | ₹9,030.00 |
| 3,000+ | ₹16.35 | ₹49,050.00 |
| 6,000+ | ₹15.64 | ₹93,840.00 |
5 × ₹27.95
₹139.75
excl. GST
₹164.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CSD25484F4
₹139.75 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 102pF
- Current - Continuous Drain(Id)
- 2.5A
- Pd - Power Dissipation
- 500mW
- RDS(on)
- 80mΩ@8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 1.09nC@4.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
This 80 mΩ, -20V P-channel FemtoFET MOSFET is designed and optimized to minimize board space in many handheld and mobile applications. This technology enables a minimum 60% reduction in package size while replacing standard small-signal MOSFETs.
Applications
- Optimized for load switch applications
- Optimized for general-purpose switch applications
- Battery applications
- Handheld and mobile applications
Key features
- Low on-resistance
- Ultra-low Qg and Qgd
- Low threshold voltage
- Ultra-compact package (0402 case size)
- Ultra-thin package (0.2 mm thickness)
- Integrated ESD protection diode
- Rated >4 kV HBM
- Rated >2 kV CDM
- Lead-free and halogen-free
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD25484F4T#C206172TI · PicoStar-3 | TI | PicoStar-3 | 16 | ₹182.01 · 16 in stock | View |
