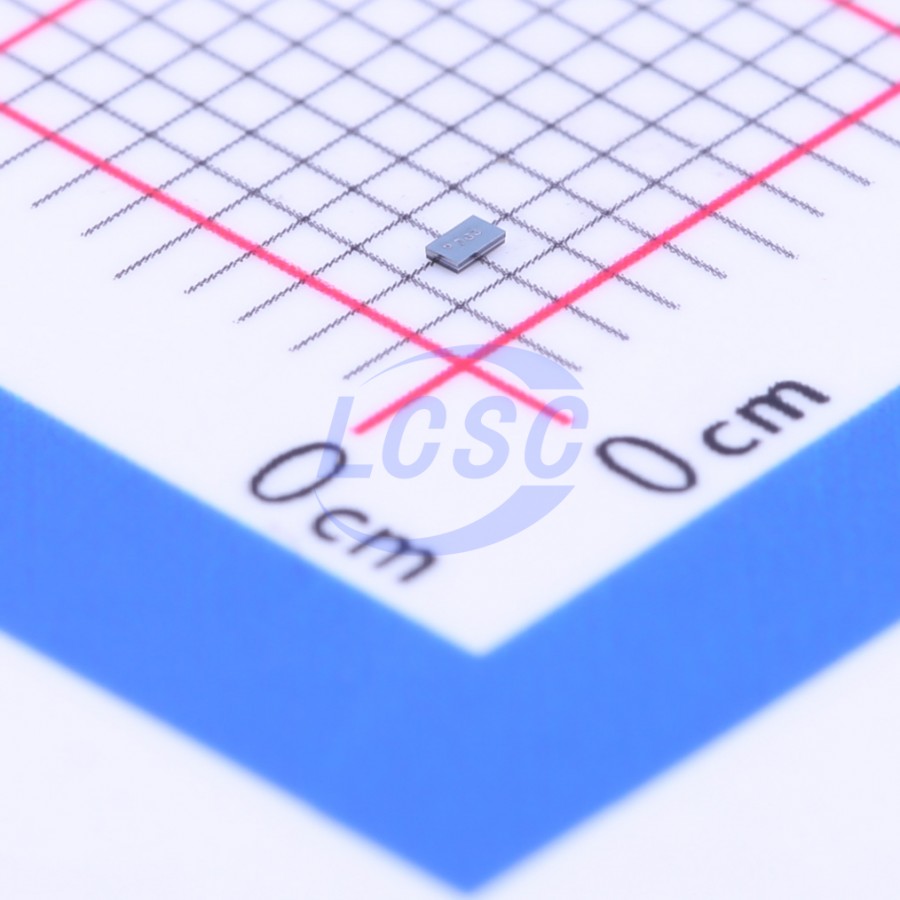

CSD25484F4T
P-Channel 20V 2.5A 500mW Surface Mount PicoStar-3
PicoStar-3ROHS3 CompliantActive
MOSFET P-CH 20V 2.5A PicoStar-3
- Manufacturer
- TI
- Manufacturer part #
- CSD25484F4T
- Store part #
- C206172
- Package / case
- PicoStar-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C206172
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹182.01 | ₹182.01 |
| 10+ | ₹152.13 | ₹1,521.30 |
| 30+ | ₹135.62 | ₹4,068.60 |
| 250+ | ₹113.05 | ₹28,262.50 |
| 500+ | ₹104.69 | ₹52,345.00 |
| 1,000+ | ₹100.93 | ₹1,00,930.00 |
1 × ₹182.01
₹182.01
excl. GST
₹214.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
CSD25484F4T
₹182.01 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 102pF
- Ciss-Input Capacitance
- 230pF
- Pd - Power Dissipation
- 500mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 2.5A
- Reverse Transfer Capacitance (Crss)
- 7.2pF
- RDS(on)
- 825mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 1.415nC@4.5V
- Vgs
- -12V
- Gate Threshold Voltage (Vgs(th))
- 950mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
This 80-mΩ, –20-V, P-Channel FemtoFET™ MOSFET is designed and optimized to minimize the footprint in many handheld and mobile applications. This technology is capable of replacing standard small signal MOSFETs while providing at least a 60% reduction in footprint size.
Applications
- Optimized for Load Switch Applications
- Optimized for General Purpose Switching Applications
- Battery Applications
- Handheld and Mobile Applications
Key features
- Low On-Resistance
- Ultra-Low Qg and Qgd
- Low-Threshold Voltage
- Ultra-Small Footprint (0402 Case Size) – 1.0 mm×0.6 mm
- Ultra-Low Profile – 0.2-mm Height
- Integrated ESD Protection Diode – Rated > 4-kV HBM
- Rated >2-kV CDM
- Lead and Halogen Free
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD25484F4#C180173TI · PICOSTAR-3 | TI | PICOSTAR-3 | 335 | ₹27.95 · 335 in stock | View |
 | CSD25481F4T#C134107TI · PicoStar-3 | TI | PicoStar-3 | 120 | ₹29.81 · 120 in stock | View |
 | CSD25481F4#C2872850TI · PicoStar-3 | TI | PicoStar-3 | 3,105 | ₹14.59 · 3,105 in stock | View |
 | CSD25485F5#C2867111TI · PicoStar-3 | TI | PicoStar-3 | 340 | ₹41.52 · 340 in stock | View |
| CSD25485F5T#C2878960TI · PicoStar-3 | TI | PicoStar-3 | On request | ₹146.84 · 0 in stock | View | |
