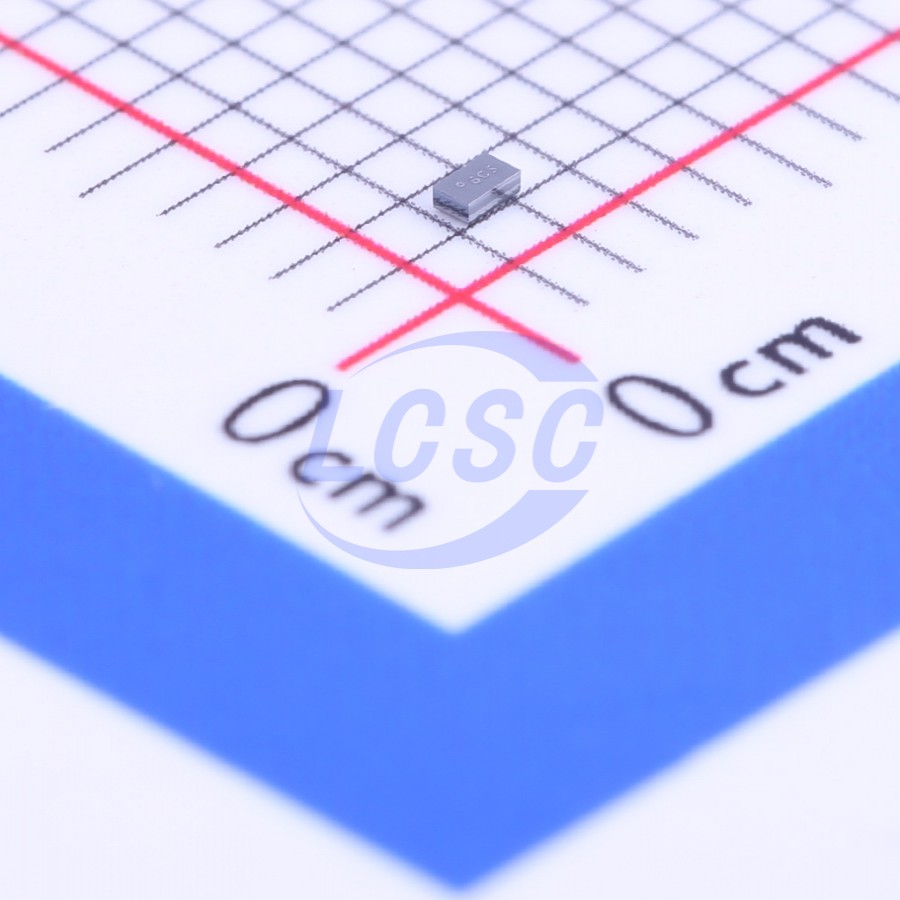

CSD25481F4T
P-Channel 20V 2.5A 500mW Surface Mount PicoStar-3
PicoStar-3ROHS3 CompliantActive
MOSFET P-CH 20V 2.5A PicoStar-3
- Manufacturer
- TI
- Manufacturer part #
- CSD25481F4T
- Store part #
- C134107
- Package / case
- PicoStar-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C134107
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.81 | ₹149.05 |
| 50+ | ₹24.77 | ₹1,238.50 |
| 250+ | ₹22.61 | ₹5,652.50 |
| 500+ | ₹19.92 | ₹9,960.00 |
| 2,500+ | ₹18.72 | ₹46,800.00 |
| 5,000+ | ₹17.99 | ₹89,950.00 |
5 × ₹29.81
₹149.05
excl. GST
₹175.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
CSD25481F4T
₹149.05 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 78pF
- Ciss-Input Capacitance
- 189pF
- Pd - Power Dissipation
- 500mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 2.5A
- Reverse Transfer Capacitance (Crss)
- 5.5pF
- RDS(on)
- 105mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 913pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
This 90 mΩ, 20V P-channel FemtoFET MOSFET is designed and optimized to minimize board space in many handheld and mobile applications. This technology enables a package size reduction of at least 60% compared to standard small-signal MOSFETs.
Applications
- Load switch applications
- General-purpose switch applications
- Battery-powered applications
- Handheld and mobile applications
Key features
- Ultra-low on-resistance
- Ultra-low Qg and Qgd
- High drain operating current
- Ultra-compact package size (0402 case size)
- Ultra-thin package, maximum thickness 0.36 mm
- Integrated ESD protection diode
- Rated >4 kV Human Body Model (HBM)
- Rated >2 kV Charged Device Model (CDM)
- Lead-free and halogen-free
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD25481F4#C2872850TI · PicoStar-3 | TI | PicoStar-3 | 3,105 | ₹14.59 · 3,105 in stock | View |
 | CSD25485F5#C2867111TI · PicoStar-3 | TI | PicoStar-3 | 340 | ₹41.52 · 340 in stock | View |
 | CSD25484F4T#C206172TI · PicoStar-3 | TI | PicoStar-3 | 16 | ₹182.01 · 16 in stock | View |
| CSD25485F5T#C2878960TI · PicoStar-3 | TI | PicoStar-3 | On request | ₹146.84 · 0 in stock | View | |
