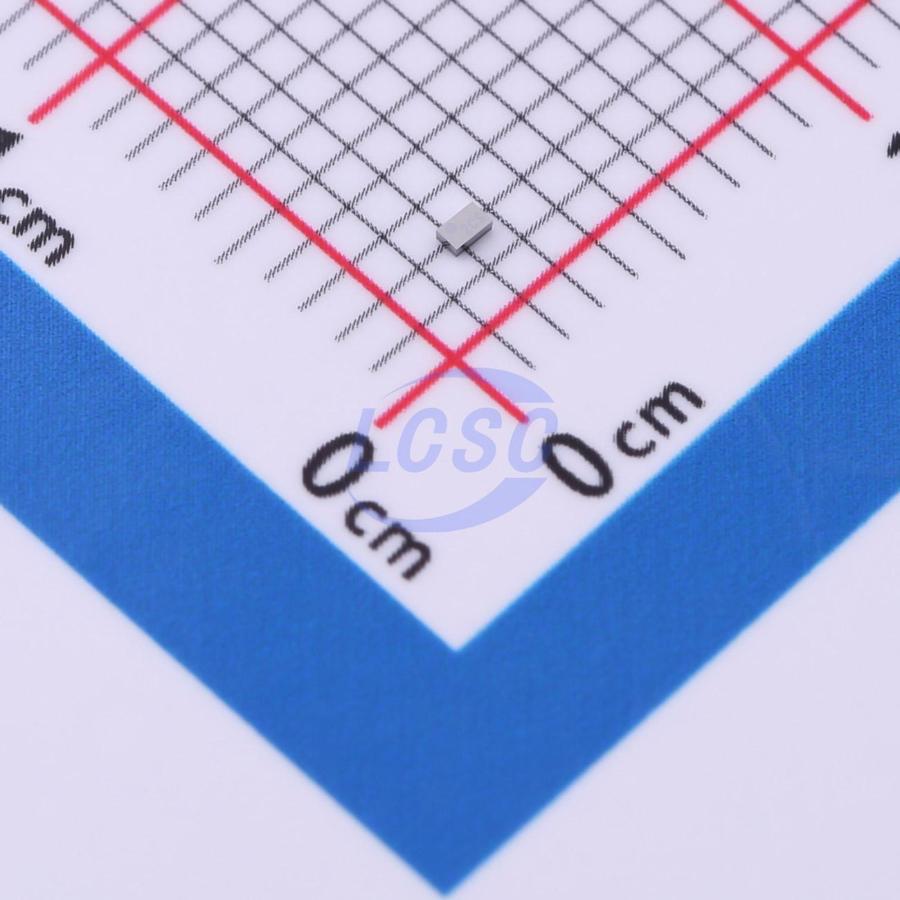

CSD25481F4
P-Channel 20V 2.5A 500mW Surface Mount PicoStar-3
PicoStar-3ROHS3 CompliantActive
MOSFET P-CH 20V 2.5A PicoStar-3
- Manufacturer
- TI
- Manufacturer part #
- CSD25481F4
- Store part #
- C2872850
- Package / case
- PicoStar-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,105 in stock
#C2872850
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.59 | ₹72.95 |
| 50+ | ₹11.79 | ₹589.50 |
| 150+ | ₹10.36 | ₹1,554.00 |
| 500+ | ₹9.17 | ₹4,585.00 |
| 3,000+ | ₹8.76 | ₹26,280.00 |
| 6,000+ | ₹8.48 | ₹50,880.00 |
5 × ₹14.59
₹72.95
excl. GST
₹86.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CSD25481F4
₹72.95 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 2.5A
- Ciss-Input Capacitance
- 189pF
- Pd - Power Dissipation
- 500mW
- RDS(on)
- 88mΩ@8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 913pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD25481F4T#C134107TI · PicoStar-3 | TI | PicoStar-3 | 120 | ₹29.81 · 120 in stock | View |
 | CSD25485F5#C2867111TI · PicoStar-3 | TI | PicoStar-3 | 340 | ₹41.52 · 340 in stock | View |
 | CSD25484F4T#C206172TI · PicoStar-3 | TI | PicoStar-3 | 16 | ₹182.01 · 16 in stock | View |
| CSD25485F5T#C2878960TI · PicoStar-3 | TI | PicoStar-3 | On request | ₹146.84 · 0 in stock | View | |
