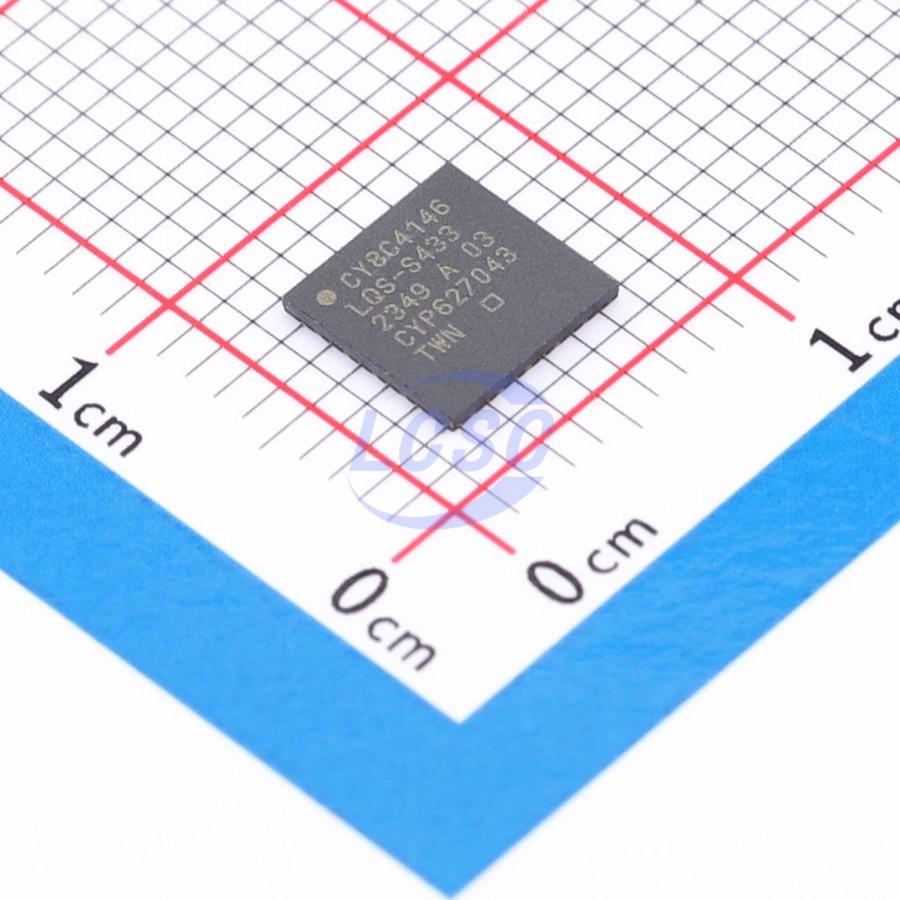

CY8C4146LQS-S433T

PSoC™ 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers featuring an Arm® Cortex®-M0+ CPU, compliant with AEC-Q100. It combines programmable and reconfigurable analog and digital blocks with flexible auto-routing. The PSoC™ 4100S product family is a member of the PSoC™ 4 platform architecture. It integrates a microcontroller with standard communication and timing peripherals, a best-in-class capacitive touch sensing system (CAPSENSE™), programmable general-purpose continuous-time and switched-capacitor analog blocks, and programmable connectivity. PSoC™ 4100S products are forward-compatible with other members of the PSoC™ 4 platform to address new application and design requirements.

Key features

• Compliant with Automotive Electronics Council (AEC) AEC-Q100 qualification standard
• 32-bit MCU subsystem
• 48-MHz Arm® Cortex®-M0+ CPU
• Up to 64 KB flash with read accelerator
• Up to 8 KB SRAM
• Programmable analog
• Two op-amps with reconfigurable high-drive external and high-bandwidth internal drives, comparator mode, and ADC input buffering capability; op-amps operable in Deep Sleep low-power mode
• 12-bit 1-Msps SAR ADC supporting differential and single-ended modes with channel sequencer and signal averaging
• Single-slope 10-bit ADC functionality provided by the capacitive sensing module
• Two current DACs (IDACs) for general-purpose or capacitive sensing applications on any pin
• Two low-power comparators operable in Deep Sleep low-power mode
• Programmable digital
• Programmable logic block enabling Boolean operations on port inputs and outputs
• Low-power 1.71 V to 5.5 V operating voltage
• Deep Sleep mode with analog active; digital system current of 2.5 µA
• Capacitive sensing
• Capacitive Sigma-Delta (CSD) delivering industry-leading SNR (>5:1) and water-tolerance performance
• Infineon software components simplifying capacitive sensing design
• Automatic hardware tuning (SmartSense)
• LCD drive capability
• LCD segment drive on GPIO
• Serial communication
• Three independently runtime-reconfigurable serial communication blocks (SCBs) with reconfigurable I²C, SPI, UART, or LIN slave functionality
• Timing and PWM
• Five 16-bit timer/counter/PWM (TCPWM) modules
• Center-aligned, edge, and pseudo-random modes
• Comparator-based kill signal triggering for motor drive and other high-reliability digital logic applications
• Up to 38 programmable GPIO pins
• 24-pin QFN, 28-pin SSOP, 40-pin QFN, and 48-pin QFN packages
• Any GPIO pin configurable as CapSense, analog, or digital function
• Programmable drive mode, strength, and slew rate
• PSoC™ Creator design environment
• IDE with schematic design entry and build (with analog and digital autorouting)
• API components for all fixed-function and programmable peripherals
• Industry-standard tool compatibility
• Post-schematic entry development using Arm®-based industry-standard development tools
• Temperature range
• Grade A: -40°C to +85°C
• Grade S: -40°C to +105°C
• Grade E: -40°C to +125°C
