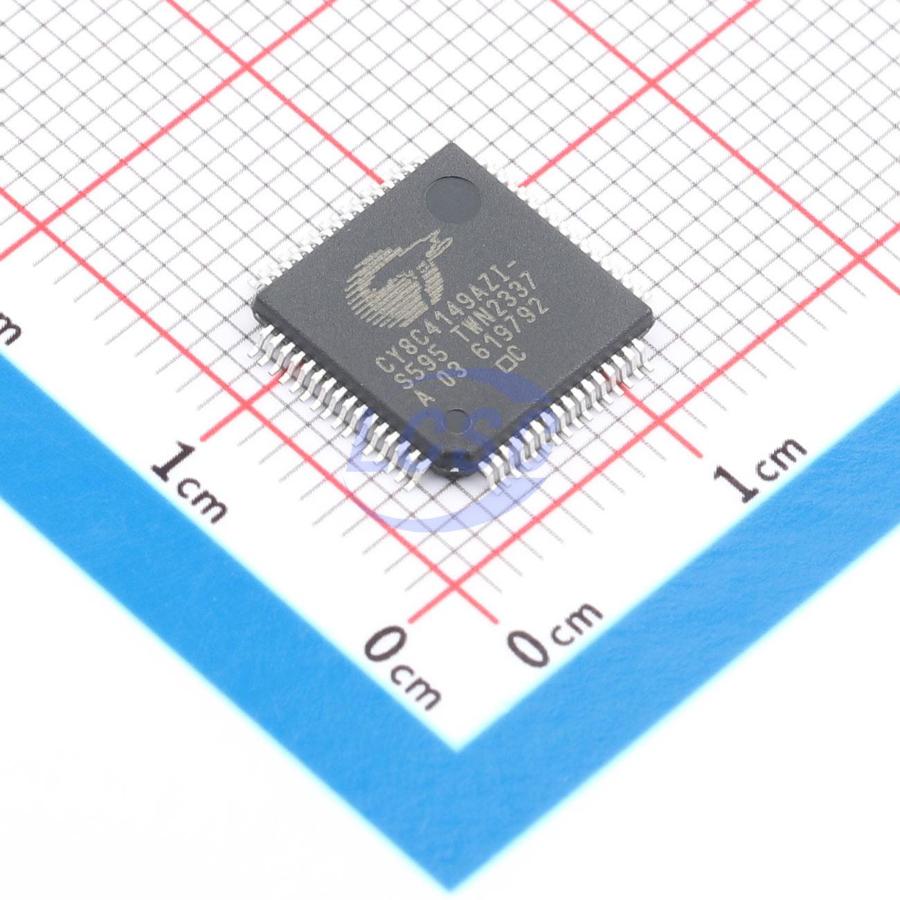

CY8C4149AZI-S595

PSoC™ 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0+ CPU. It combines programmable and reconfigurable analog and digital blocks. PSoC™ 4100S Max is a member of the PSoC™ 4 platform architecture. It is a combination of a microcontroller with standard communication and timing peripherals, a capacitive sensing system with best-in-class performance, programmable general-purpose continuous-time analog blocks, and programmable connectivity. PSoC™ 4100S Max products are compatible with members of the PSoC™ 4 platform for new applications and design needs.

Key features

• 32-bit MCU subsystem - 48-MHz Arm® Cortex®-M0+ CPU with single-cycle multiply
• Up to 384 KB of flash with Read Accelerator
• Up to 32 KB of SRAM
• 16-channel DMA engine
• Programmable analog
• Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and Comparator modes and ADC input buffering capability. Opamps can operate in Deep Sleep low-power mode.
• 12-bit 1-Msps SAR ADC with differential and single-ended modes, and Channel Sequencer with signal averaging
• Temperature sensor built into SAR ADC
• Two low-power comparators that operate in Deep Sleep low-power mode
• Programmable digital
• Programmable Smart I/O logic blocks allowing Boolean operations to be performed on port inputs and outputs
• Low-power 1.71-V to 5.5-V operation - Deep Sleep mode with operational analog and 3.7-μA digital system current
• Capacitive sensing
• Multi-sensing converter (MSC) provides best-in-class signal-to-noise ratio (SNR) (>5:1) and liquid tolerance for capacitive sensing
• Infineon-supplied software middleware makes capacitive sensing design easy
• Automatic hardware tuning (SmartSense)
• Two MSC converters are provided
• Autonomous channel scanning without CPU assistance
• LCD Drive capability - LCD segment drive capability on GPIOs
• I2S - I2S master transmitter
• Cryptographic block - AES, SHA, TRNG, PRNG, and CRC functions
• Serial communication
• CAN FD
• Five independent run-time reconfigurable serial communication blocks (SCBs) with re-configurable I²C, SPI, or UART functionality. High-speed I2C support is provided.
• Timing and pulse-width modulation
• Eight 16-bit timer/counter/pulse-width modulator (TCPWM) blocks
• Center-aligned, Edge, and Pseudo-random modes
• Comparator-based triggering of Kill signals for motor drive and other high-reliability digital logic applications
• Quadrature decoder
• Clock sources
• 4 to 33 MHz external crystal oscillator (ECO)
• PLL to generate 48-MHz frequency
• 32-kHz watch crystal oscillator (WCO)
• ±2% internal main oscillator (IMO)
• 40-kHz internal low-power oscillator (ILO)
• Up to 84 programmable GPIO pins
• 100-pin TQFP (0.5-mm pitch), 64-pin TQFP (0.5-mm pitch), and 48-pin TQFP (0.5-mm) packages
• GPIO pins can have sensing, analog, or digital functionality
• ModusToolbox™ software
• Comprehensive collection of multi-platform tools and software libraries
• Includes board support packages (BSPs), peripheral driver library (PDL), and middleware such as CAPSENSE™
• Industry-standard tool compatibility - After configuration, development can be done with Arm®-based industry-standard development tools
