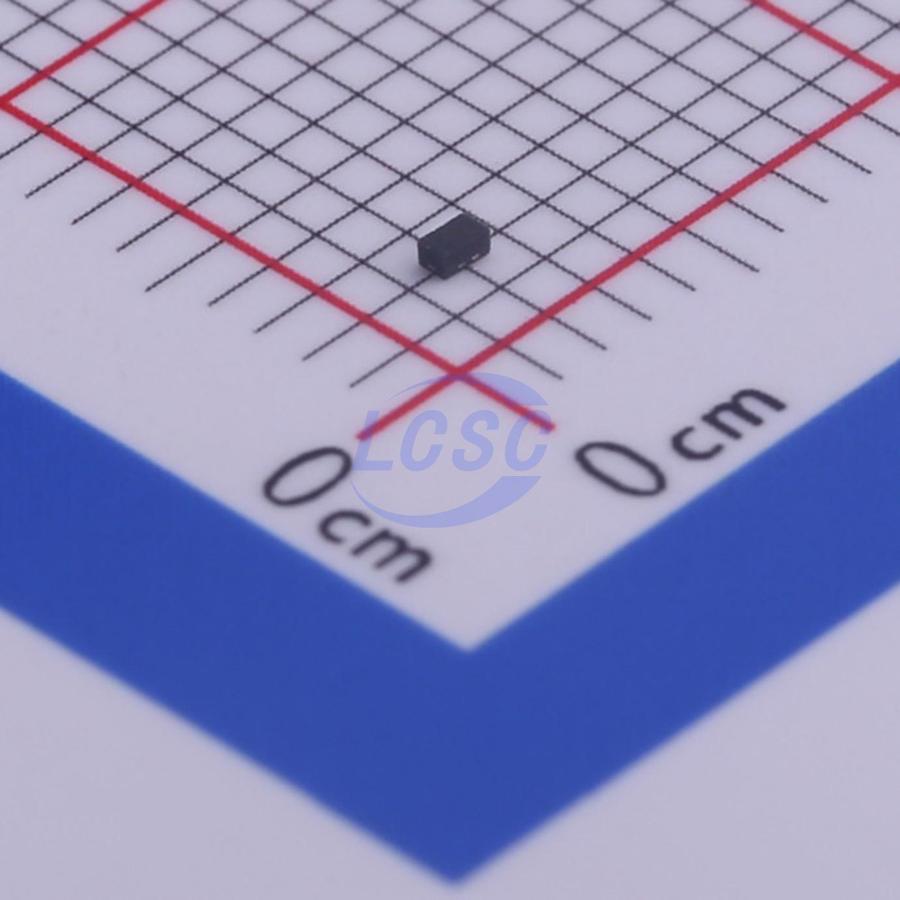

D24V0L1B2LP-7B
46VC Clamp 2A@8/20us Ipp TVS DIODE DFN1006-2
TVS DIODE 24VWM 46VC DFN1006-2
- Manufacturer
- DIODES
- Manufacturer part #
- D24V0L1B2LP-7B
- Store part #
- C444417
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
685 in stock
#C444417
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.92 | ₹99.60 |
| 50+ | ₹15.81 | ₹790.50 |
| 150+ | ₹13.75 | ₹2,062.50 |
| 500+ | ₹12.21 | ₹6,105.00 |
| 2,500+ | ₹10.98 | ₹27,450.00 |
| 5,000+ | ₹10.36 | ₹51,800.00 |
5 × ₹19.92
₹99.60
excl. GST
₹117.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D24V0L1B2LP-7B
₹99.60 for 5 + GST
Specifications
- Clamping Voltage
- 46V
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 90W
- Number of Channels
- 1
- Voltage - Breakdown
- 26V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.006 g
Overview
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players. The sidewall plating option of this package allows optical inspection after soldering reflow for easy and reliable quality control.
Applications
- Cellular Handsets
- Portable Electronics
- Computers and Peripheral
Key features
- Low Profile Package (0.53mm max) and Ultra-small PCB Footprint Area (1.08×0.68mm max)
- Suitable for Compact Portable Electronics
- Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±20kV, Contact ±20kV
- 1 Channel of ESD Protection
- Low Channel Input Capacitance
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC - Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPESD7241N2T5G#C19829535TECH PUBLIC · DFN1006-2(0402) | TECH PUBLIC | DFN1006-2(0402) | 9,020 | ₹7.85 · 9,020 in stock | View |
 | TPESD2431P#C2937013TECH PUBLIC · DFN1006-2(0402) | TECH PUBLIC | DFN1006-2(0402) | 8,180 | ₹7.78 · 8,180 in stock | View |
 | RCLAMP2431T#C2987144TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 5,850 | ₹7.87 · 5,850 in stock | View |
 | ESD701DPYR-TP#C52098216TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 1,710 | ₹9.62 · 1,710 in stock | View |
 | TPESD1ETH1GLS-QYL#C54561910TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 7,580 | ₹10.69 · 7,580 in stock | View |
